Hager 1173, Plain Bearing, Steel, Standard Weight, 5 Knuckle, Half Surface Hinge, Sized 3.5" - 4.5"

Hager 1173, Plain Bearing, Steel, Standard Weight, 5 Knuckle, Half Surface Hinge, Sized 3.5" - 4.5"
Hager Companies

Half Surface Architectural, plain bearing hinge with five knuckles. Standard weight for use on regular weight hollow metal or wood composite doors with hollow metal frames requiring low frequency service. Variety of sizes and finishes available.

PRICED PER PIECE - See full product details and specs in the tabs below

See Hager Hinges Color Chart for available finishes and details.

Minimum purchase quantity: 9 units
See tabs below for additional information
    • SKU
      HG1173-3.5-USP
    • Market price:$51.10
      • save 40%
    • Starting price: Price: $30.66 per item


    This commercial grade Architectural hinge, by Hager Companies, is a half surface hinge. It is a five knuckle, plain bearing hinge and standard weight.

    Available hinge sizes:

    Hinge SizeGauge of Metal
    Hole
    Count
    		Machine Screw Size
      Inches  mm      Door Leaf  Jamb Leaf
      3-1/2"*  89  0.119  6  1-3/4 x 10-24 OH  1/2 x 10-24 FH
      4"*  102  0.129  7  2 x 1/4-20 OH  1/2 x 12-24 FH
      4-1/2"   114   0.134   7  2 x 1/4-20 OH  1/2 x 12-24 FH

    Additional Hinge Dimensions. (chart) "A", "B", "C", "D" correspond to figure at the right.

    Hinge Size
     Door Leaf Width
    "A"
    Jamb Leaf Width
     "B"
    Jamb Leaf Offset
    "C"
    Application
    "D"
      Inches  mm  Inches  mm  Inches  mm      Inches  mm      Inches  mm
      3-1/2"*  89  1-5/8"  41  1-9/16"  31  7/16"  11.5  1-1/16"  27
      4"*  102  2-5/16"  591-13/16"  46  1/2  13  1-5/16"  33
      4-1/2"   114   2-9/16"  65  2  51  1/2"  12.5  1-1/2"  38

          * For 1-3/8" door

    Hinge is provided with a non-rising removable pin. The pin does not rise out of the barrel, yet it is removable, which allows the pin to be taken out for the dismantling of the door without unscrewing the entire hinge. Contains button tip and plug.

    Reversible: This hinge can be used for a right handed or left handed door. Simply turn the hinge over, not necessary to remove and replace the hinge pin.

    Beveled Surface Leaf: The leaf which is screwed to the surface of the door is beveled.

    Custom colors available. For details and pricing please contact us or call us at 845-388-1300.

    Priced per piece.

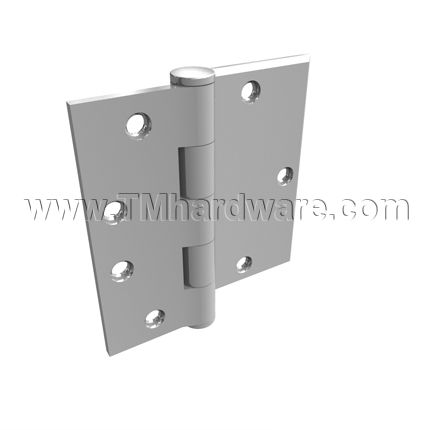

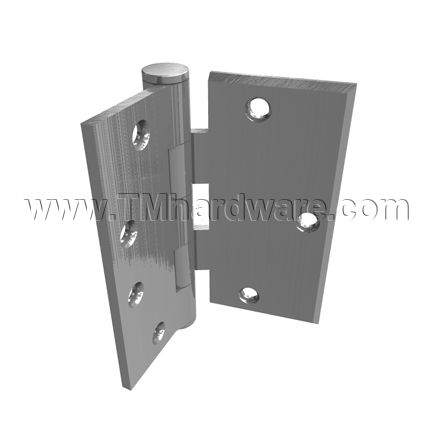

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs tab for exact measurements.

    Please allow five business days for this product to ship. If this product is made to order, please allow 2-3 weeks for shipping.

    This product has a lifetime guarantee against defects in workmanship and materials.

    Click here to view all our Hager Hinges.

      • SKU
        HG1173-3.5-USP
    • QuickShip
      No
    • Manufacturer
      Hager Companies
    • MPN
      1173
    • Product Design
      • Hinge Category
        Half Surface Hinge
      • Base Material
        Steel
      • Usage Level
        Standard Duty
      • Throw
        Standard Throw
      • Bearing Type
        Plain Bearing
      • Knuckles
        5 Knuckle Hinge
      • Pin Type
        Standard Hinge Pin
      • Hinge Tip Type
        Button Tip
      • Hinge Corner
        Square Corner
      • Hole Pattern
        Commercial "C" Pattern
    • Dimensions
      • Hinge Size
        3-1/2", 4", 4-1/2"
      • Hinge Thickness
        See Dimensions Chart
    • Installation
      • Door Type
        Wooden Door, Metal Door
      • Installation Screws
        Provided.
    • Additional Options - Purchase Through Our Office
      • Reverse Hole Pattern
        Yes
      • Beveled Surface Leaf
        Yes
    • Finishes
      • Finish
        Prime Coat (USP), Satin Bronze (US10), Antique Bronze (US10A), Oil Rubbed Bronze (US10B), Satin Chrome (US26D)
    • Compliance Details
      • Compliance Details
        BHMA Certified
      • ANSI Designation
        A156.1, A8433
      • Warranty
        Lifetime Limited Warranty

    Click to Print Templates Above

    Hinge complies with ANSI A8433.
