Hager WTAB700 Full Mortised, Three Knuckle, Concealed Anti-Friction Bearing Architectural Hinge with Wide Throw. Standard weight for use with medium weight door or doors of medium frequency service. Available in many sizes and finishes.

PRICED PER PIECE - See full product details and specs in the tabs below

See tabs below for additional information
    • SKU
      HGWTAB700-4.5x5-USP
    • Market price:$143.31
      • save 50%
    • Starting price: Price: $71.66 per item


    Hager WTAB700 Full Mortised, Three Knuckle, Concealed Anti-Friction Bearing Architectural Hinge with Wide Throw. Standard weight for use with medium weight door or doors of medium frequency service. The barrel of the hinge is set out away from the door allowing the door to swing open 180 degrees. Ideal for applications where additional clearance is required.

    Available sizes:

    Hinge SizeGauge of MetalHole CountScrew Size
      Inches  mm      Machine  Wood
      4-1/2" x 5"            114 x 127                 0.134  8  1/2 x 12-24                  1-1/4 x 12
      4-1/2" x 6"  114 x 152  0.134  8  1/2 x 12-24    1-1/4 x 12
      4-1/2" x 7"  114 x 178  0.134  8  1/2 x 12-24    1-1/4 x 12
      4-1/2" x 8"  114 x 203  0.134  8  1/2 x 12-24    1-1/4 x 12
      5" x 6"  127 x 152  0.145  8  1/2 x 12-24    1-1/4 x 12
      5" x 7"  127 x 178  0.145  8  1/2 x 12-24    1-1/4 x 12
      5" x 8"  127 x 203  0.145  8  1/2 x 12-24    1-1/4 x 12

    Available Finishes: See options above, See Hager Hinges Color Chart for a detailed list of Hager finishes.

    Custom colors available. For details and pricing please contact us or call us at 845-388-1300.

    Hinge is provided with a non-rising removable pin. The pin does not rise out of the barrel, yet it is removable which allows the pin to be taken out for the dismantling of the door without unscrewing the entire hinge. The pin and plug are flush with the hinge body.

    Additional Options: Concealed Electric Modifications available: Three types available: EMN, ETW, ETM. See Options Tab for more information.

    Priced per piece

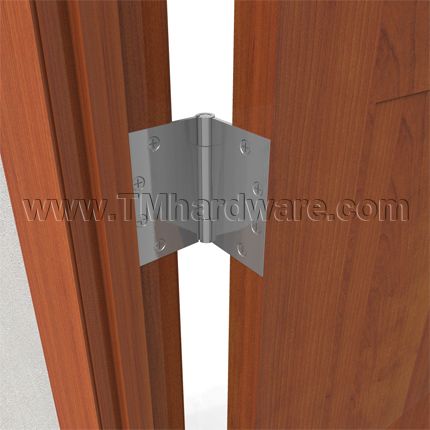

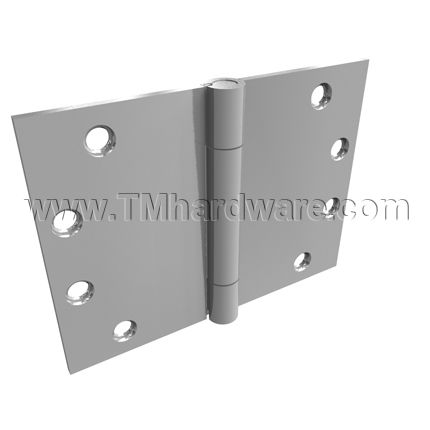

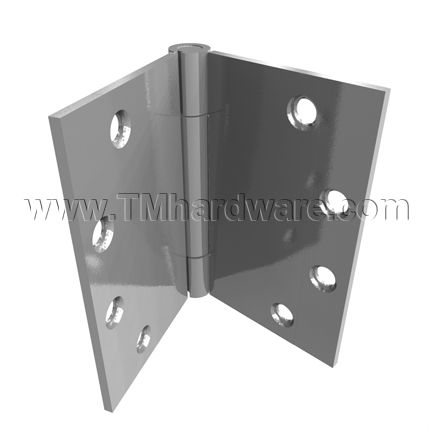

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

    This product has a lifetime guarantee against defects in workmanship and materials.
     Click to view our Full Warranty Policy.

    Click here to view this Hager WTAB800 Throw Hinge Made of Brass or Stainless Steel.

      • SKU
        HGWTAB700-4.5x5-USP
    • QuickShip
      No
    • Manufacturer
      Hager Companies
    • MPN
      WTAB700
    • Product Design
      • Hinge Category
        Full Mortised Hinge
      • Base Material
        Steel
      • Usage Level
        Heavy Duty
      • Throw
        Wide Throw
      • Bearing Type
        Concealed Anti-Friction
      • Knuckles
        3 Knuckle Hinge
      • Pin Type
        Standard Hinge Pin
      • Hinge Tip Type
        Button Tip
      • Hinge Corner
        Square Corner
      • Hole Pattern
        Commercial "C" Pattern
      • Number of Holes
        8 Holes
    • Dimensions
      • Hinge Size
        4-1/2" x 5", 4-1/2" x 6", 4-1/2" x 7", 4-1/2" x 8", 5" x 6", 5" x 7", 5" x 8"
      • Hinge Thickness
        See Dimensions Chart
    • Installation
      • Door Type
        Wooden Door, Metal Door
      • Installation Screws
        Installation Screws Provided Accordingly:
        4-1/2" Hinge: All metal screws and half wood screws
        3-1/2" Hinge: All wood screws and half metal screws
        4" Hinge: All wood screws and half metal screws
        5" Hinge: All metal screws and half wood screws
        Additional screw packs can be provided if listed in order comments before completing purchase.
    • Additional Options - Purchase Through Our Office
      • Electric Modifications
        Yes
    • Finishes
      • Finish
        Prime Coat (USP), Polished Brass (US3), Satin Bronze (US10), Antique Bronze (US10A), Oil Rubbed Bronze (US10B), Polished Chrome (US26), Satin Chrome (US26D), Luma Sheen Aluminum, Painted
    • Compliance Details
      • Compliance Details
        BHMA Certified
      • ANSI Designation
        A8112, A156.18
      • Warranty
        Lifetime Limited Warranty

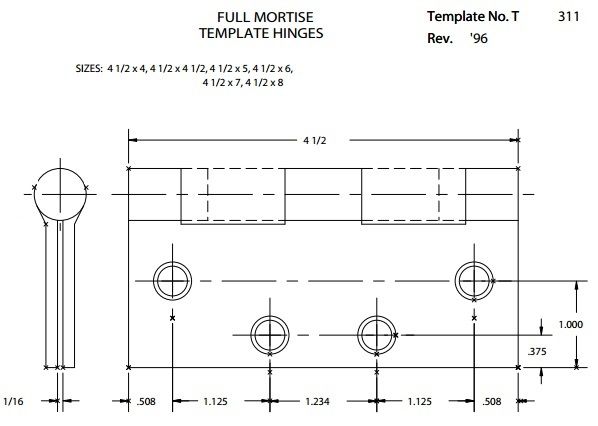

    Click to Print 4-1/2" Hinge Template

    Click to Print 5" Hinge Template



    4-1/2" Template. Select link above for 5" Hinge template.



    Hinge complies with ANSI A8112.
