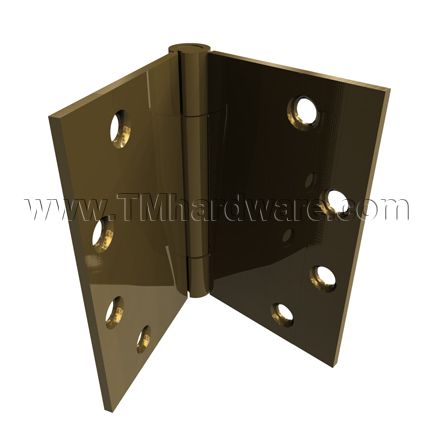

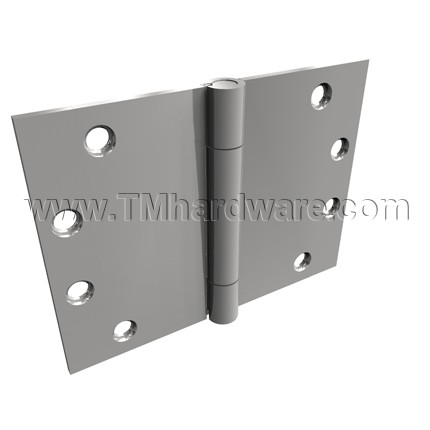

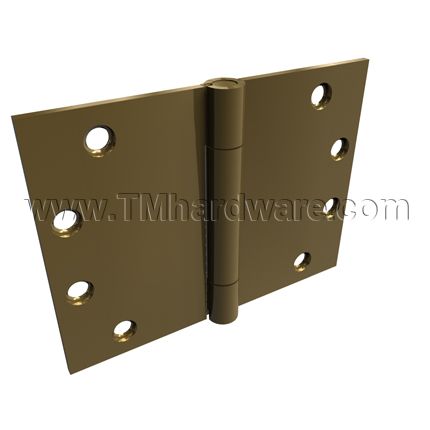

Hager WTAB850 Full Mortised, Three Knuckle, Concealed Anti-Friction Bearing, Architectural Hinge with Wide Throw. Heavy weight for use with heavy weight doors or doors of high frequency service. Hinge made of Brass or Stainless Steel with stainless steel pin. Available in many sizes and finishes.

PRICED PER PIECE -  See full product details and specs in the tabs below

See tabs below for additional information
    • SKU
      HGWTAB850-4.5x5-LS
    • Market price:$321.53
      • save 50%
    • Starting price: Price: $160.77 per item


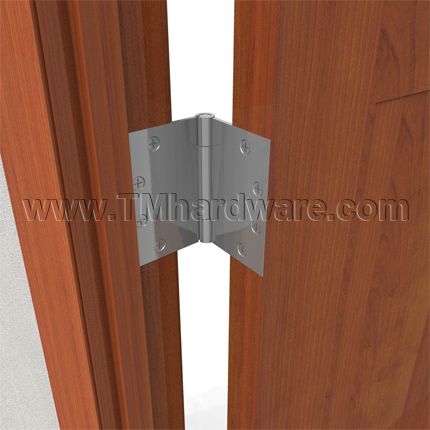

    Hager WTAB850 Full Mortised, Three Knuckle, Concealed Anti-Friction Bearing, Architectural Hinge with Wide Throw. Heavy weight for use with heavy weight doors or doors of high frequency service. Ideal for applications where additional clearance is required.

    Available sizes:

    Hinge SizeGauge of MetalHole CountScrew Size
      Inches  mm      Machine  Wood
      4-1/2" x 5"  114 x 127  0.180   8  1/2 x 12-24  1-1/4 x 12
      4-1/2" x 6"  114 x 152  0.180  8   1/2 x 12-24  1-1/4 x 12
      4-1/2" x 7"  114 x 178  0.180  8   1/2 x 12-24  1-1/4 x 12
      4-1/2" x 8"  114 x 203  0.180  8  1/2 x 12-24  1-1/4 x 12
      5" x 6"   127 x 152  0.190  8  1/2 x 12-24  1-1/4 x 12
      5" x 7"  127 x 178  0.190  8  1/2 x 12-24  1-1/4 x 12
      5" x 8"  127 x 203  0.190  8  1/2 x 12-24  1-1/4 x 12

    Available Finishes: See options above, See Hager Hinges Color Chart for a detailed list of Hager finishes.

    Custom Finishes: For details and pricing please contact us or call us at 845-388-1300.

    Hinge is provided with a non-rising removable pin. The pin does not rise out of the barrel, yet it is removable which allows the pin to be taken out for the dismantling of the door without unscrewing the entire hinge. The pin and plug are flush with each other.

    Additional Options: Concealed Electric Modifications available: Three types available. EMN, ETW, ETM. For more information see Options Tab. Electric Modifications can be purchased through our office. For details and pricing please contact us or call us at 845-388-1300

    Priced per piece

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs Tab for exact measurements.

    This product has a lifetime guarantee against defects in workmanship and materials.
     Click to view our Full Warranty Policy.

    Click here to view our Hager WTAB750 - 3 Knuckle Concealed Anti-Friction Bearing Steel, Heavy Weight Hinge With a Wide Throw.

      • SKU
        HGWTAB850-4.5x5-LS
    • QuickShip
      No
    • Manufacturer
      Hager Companies
    • MPN
      WTAB850
    • Product Design
      • Hinge Category
        Full Mortised Hinge
      • Base Material
        Brass, Stainless Steel
      • Usage Level
        Heavy Duty
      • Throw
        Wide Throw
      • Bearing Type
        Concealed Anti-Friction
      • Knuckles
        3 Knuckle Hinge
      • Pin Type
        Standard Hinge Pin
      • Hinge Tip Type
        Button Tip
      • Hinge Corner
        Square Corner
      • Hole Pattern
        Commercial "C" Pattern
      • Number of Holes
        8 Holes
    • Dimensions
      • Hinge Size
        4-1/2" x 5", 4-1/2" x 6", 4-1/2" x 7", 4-1/2" x 8"
      • Hinge Thickness
        See Dimensions Chart
    • Installation
      • Door Type
        Wooden Door, Metal Door
      • Installation Screws
        Installation Screws Provided Accordingly:
        4-1/2" Hinge: All metal screws and half wood screws
        3-1/2" Hinge: All wood screws and half metal screws
        4" Hinge: All wood screws and half metal screws
        5" Hinge: All metal screws and half wood screws
        Additional screw packs can be provided if listed in order comments before completing purchase.
    • Additional Options - Purchase Through Our Office
      • Electric Modifications
        Yes
    • Finishes
      • Finish
        Polished Brass (US3), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Polished Chrome (US26), Satin Chrome (US26D), Polished Stainless Steel (US32), Satin Stainless Steel (US32D), Luma Sheen Aluminum, Painted
    • Compliance Details
      • Compliance Details
        BHMA Certified
      • ANSI Designation
        A2111, A5111
      • Warranty
        Lifetime Limited Warranty

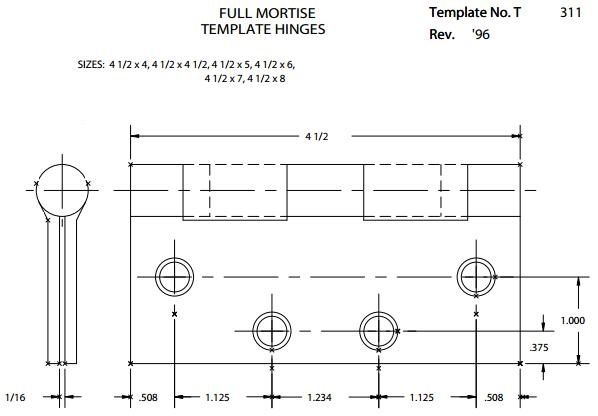

    Click to Print 4-1/2" Hinge Template

    Click to Print 5" Hinge Template



    4-1/2" Hinge Template. See above for link to 5" Hinge Template.



    Electric Modifications

    EMN-Electric Monitor Type:

    Electric Monitor hinge has a miniature snap action incorporated into the frame leaf. It utilizes a switch to send a signal when the door is opened. This hinge is for electric monitor only.

    • 28 gauge wire
    • Hinge pins are not removable
    • Monitoring capability only
    • Concealed subminiature snap action, SPDT switch
    • Adjustment feature for a wide range of switch sensitivity
    • Preset switching circuit
    • For open loop secure, closed loop secure or single pole double throw (SPDT)

    Switch Maximum Electrical rating: 30 VDC @ .500 amps

    ETW-Electric Thru-Wire Type:

    Concealed electric thru-wire hinges are a means to transfer electrical power from the power source, (through the use of 4 continuous electric conductors) through the frame and into the door and finally to the electrified door hardware, such as power lock sets, exit devices and other door monitoring devices. This hinge is for electric thru-wire only.

    • 28 guage wire
    • Hinge pins are not removable
    • Low voltage electric current transfer capability only
    • 4, 6, 8, 10, 12 continuous electrical conductors

    Electrical rating:

    Wire Maximum Electrical Rating
    Volts    Amperes

    48

    VDC

    3.5 amps     CONTINUOUS

    16.0 amps   PULSE




    ETM-Electric Tru-Wire and Monitor Type:

    These hinges can monitor door position while at the same time transfering power to electrified door hardware such as, power lock sets, exit devices and other door monitoring devices. It does this by combining the 4 continuous electric conductors and the miniature snap action switch to provide continuous circuit and monitoring capabilities.

    • 28 gauge wire
    • Hinge pins are not removable
    • Both continuous electric conductors and monitoring capability
    • Concealed monitor switch and 4, 6, 8 or 10 continuous conductors
    • Adjustment feature for a wide range of switch sensitivity
    • For open loop secure, closed loop secure or single pole double throw (SPDT)

    Electrical rating:

    Contact Maximum Electrical Rating
    Volts       Amperes

    48

    VDC

    3.5 amps     CONTINUOUS

    16.0 amps   PULSE
    Switch Maximum Electrical Rating
    30 VDC @ .500 amps


    Important Points to know about Electric Hinges:
    • All of the Hager Companies electric hinges have been tested through UL in order that our products can be used on fire rated or labeled openings.
    • The electric hinge should be the center hinge and used only for low voltage power transfer (48 volts and under) because of safety.
    • The use of a mortar or jamb box is recommended together with electrically modifies hinges in order to protect the wire termination on the inside of the frame. If the box is not used and wires are damaged, warranty of the product will be void.
    • Electric hinges have a 1 year guarantee against defects in workmanship and materials.
    • Electric Modifications can be purchased through our office. Please contact us or call us at 845-388-1300.
