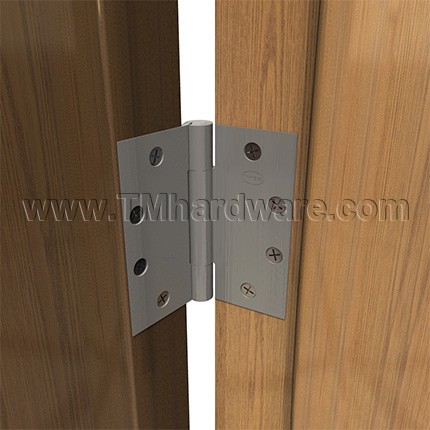

Ives 3PB1, 3 Knuckle, Plain Bearing, Full Mortise, Steel Hinge
This Ives 3 Knuckle, Plain Bearing, Full Mortise Hinge is for standard weight doors with low frequency usage. Made from 1040 steel or 304 series stainless steel. Many sizes and finishes available; select from the options below.
See full product details and specs in the tabs below.
PRICED PER PIECEÂ
This Ives 3 Knuckle, Plain Bearing, Full Mortise Hinge is for standard weight doors with low frequency usage. Made from 1040 steel or 304 series stainless steel.Â
Not recommended for use with door closer.Â
Size Options:Â
Hinge Options:
- Rounded Corners
- Non-Removable Pin (NRP): Pins have a set screw to prevent tampering with the pin while the door is closed. Select from the options above.
Additional Hinge Options: To order, please contact us or call our office at (845) 388-1300.
- Hospital Tip: Used primarily for security areas in Hospital, Prisons and Mental Health Facilities and Clean Rooms. Hospital tip hinges serve to assist in preventing hanging any objects on the tip of the hinge.
- Security Stud: Supplied standard with Non-Removable Pin. This feature is intended to keep the door secure even if the hinge pin is removed.
- Security Fasteners:Â Pin-in-Socket. Protects the door from being removed by locking the leaves of the hinges together.
Please note, detailed images are for illustrative purposes only. Images on screen may appear slightly different in real application. Actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.
Click to view our Ives 3PB1, 3 Knuckle, Plain Bearing, Full Mortise, Brass Hinge.
-
QuickShipNo
-
ManufacturerIves
-
MPN3PB1
- Product Design
-
Hinge CategoryFull Mortised Hinge
-
Base MaterialSteel, Stainless Steel
-
Usage LevelStandard Duty
-
ThrowStandard Throw
-
Bearing TypePlain Bearing
-
Knuckles3 Knuckle Hinge
-
Pin TypeStandard Hinge Pin, Non-Removeable Pin (NRP)
-
Hinge Tip TypeButton Tip
-
Hinge CornerSquare Corner, 5/8" Radius Corner, 1/4" Radius Corner
-
Hole PatternCommercial "C" Pattern
-
Number of Holes8 Holes
-
- Dimensions
-
Hinge Size3-1/2" x 3-1/2", 4" x 4", 4-1/2" x 4", 4-1/2" x 4-1/2", 5" x 4-1/2"
-
Hinge ThicknessSee Dimensions Chart
-
- Installation
-
Door TypeMetal Door, Wooden Door
-
Installation ScrewsSupplied With Fasteners for hollow metal and wood doors:
12-24 x 1/2 UFPHMS
12 x 1 1/4 FPHWS
10-24 x 1/2 UFPHMS (3.5x3.5 hinge size only)
10 x 1 FPHWS (3.5x3.5 hinge size only)
-
- Additional Options - Purchase Through Our Office
-
Reverse Safety Stud FeatureYes
-
Hospital TipYes
-
Security FastenersYes
-
- Finishes
-

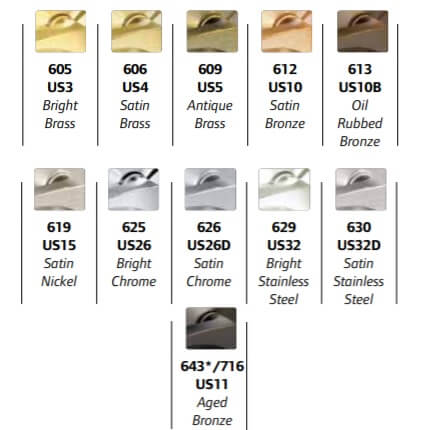

FinishPrime Coat (USP), Flat Black (US19), Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Antique Bronze (US10A), Satin Nickel (US15), Polished Chrome (US26), Satin Chrome (US26D), Aged Bronze (US11E), Polished Stainless Steel (US32)
-
- Compliance Details
-
Compliance DetailsBHMA Certified
-
ANSI DesignationA156.1, A156.7
-
Warranty1 Year Limited Warranty
-
