Pemko #185 Latching Panic Exit Threshold, 3.5" Aluminum with Rubber or Brush Seal, 1" H

Pemko 185 Aluminum Latching Panic Exit Threshold with Vinyl Seal
Pemko Manufacturing

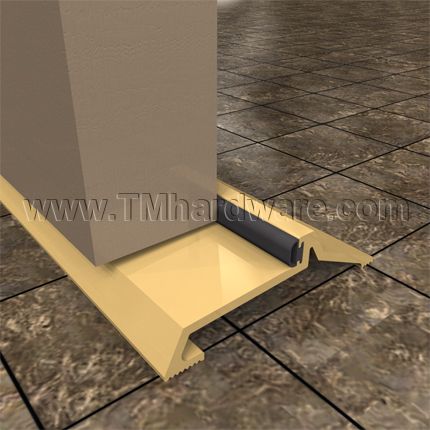

This Latching Panic Exit Saddle is designed to be used with a surface applied vertical rod exit device and as a door bumper with a seal at the bottom of doors. It has a 3.5" width and a height clearance of .625". Available with thermo, vinyl or brush seal, in aluminum variations and is custom cut to size.

PRICED PER FOOT

See tabs below for additional information
    • SKU
      PK185AV
    • Market price:$38.34
      • save 10%
    • Starting price: Price: $34.50 per foot

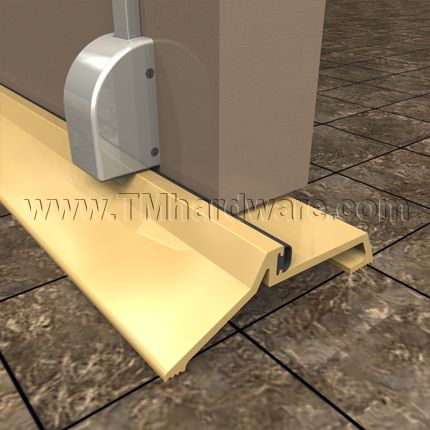

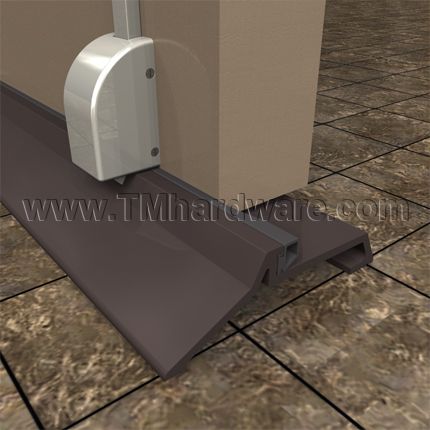

    Threshold design is compatible with a surface applied vertical rod exit device. This Pemko 185 threshold is made of high quality aluminum that will not wear over time and will keep its color.

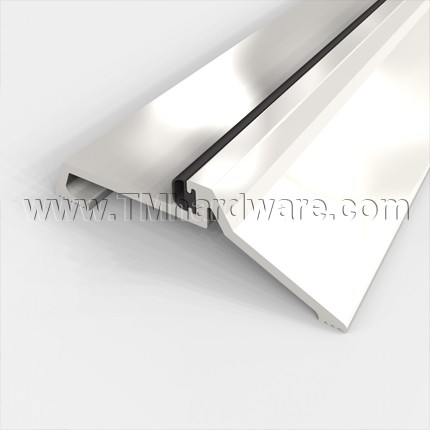

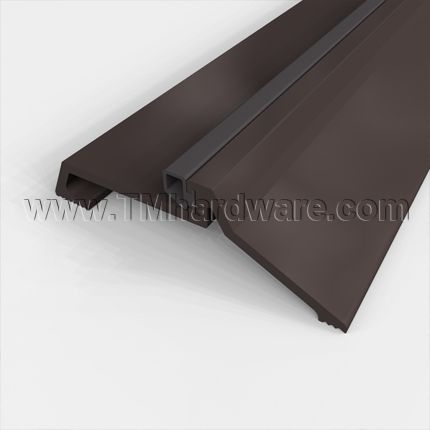

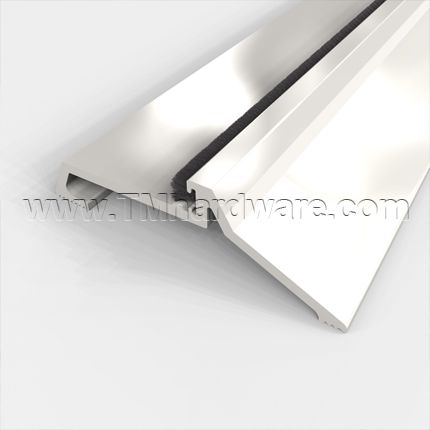

    Available Seals: It can be purchased with either a thermo, vinyl, and pile brush seal which compresses against the door to form a tight seal.

    Thermo vs. Vinyl Seal: The thermo seal is a higher grade rubber than its vinyl counterpart and has a greater acoustic performance rating which creates a stronger soundproof seal. It has better performance than vinyl in extreme cold or hot temperatures and is recommended for locations with extreme weather. The vinyl seal wears quicker than thermo, so for best performance, apply vinyl in areas with light traffic abuse.

    Finishes: Available in various different finishes; choose from the dropdown above.

    Compliance Details: See the Product Data tab to the right

    Installation: Installation instructions and screws provided. Screws are colored to coordinate with the saddle.

    Drilling: Threshold is supplied drilled for easy installation

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.
     Click here to view or Full Warranty Policy.

    Click here to view all our Rabbeted Thresholds.

      • SKU
        PK185AV
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      185T, 185V, 185P
    • Dimensions
      • Overall Height
        1" Height
      • Interior Height
        .625" Height
      • Overall Width
        3.5" Width
      • Threshold Length
        Custom Cut to Size
      • Required Door Clearance
        .75" Height
    • Product Design
      • Flat Saddle Design
        Smooth Top Design
      • Threshold Type
        Latching Panic Exit Threshold
      • Seal Type
        Vinyl Seal, Pile Brush Seal, Thermo Seal
      • Material
        Aluminum
    • Installation
      • Drilling Holes
        Drilling holes provided
      • Fasteners
        Fasteners Provided
    • Finishes
      • Finish
        Mill Finish Aluminum (US27), Oil Rubbed Bronze, Equiv. (10BE), Black Suede Powder Coat (BSP), White Suede Powder Coat (WSP)
    • Compliance Details
      • Compliance Details
        Air Infiltration Rated, Fire Rated, BHMA Certified
      • Warranty
        5 Year Limited Warranty

    Click to Print

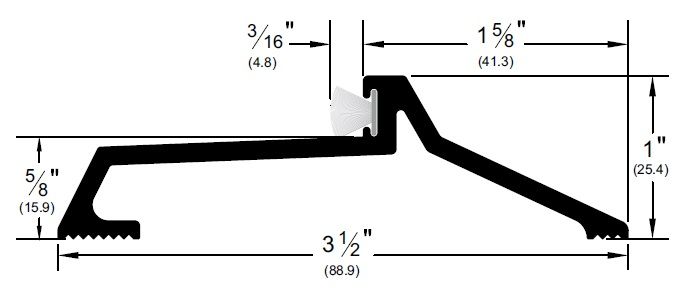

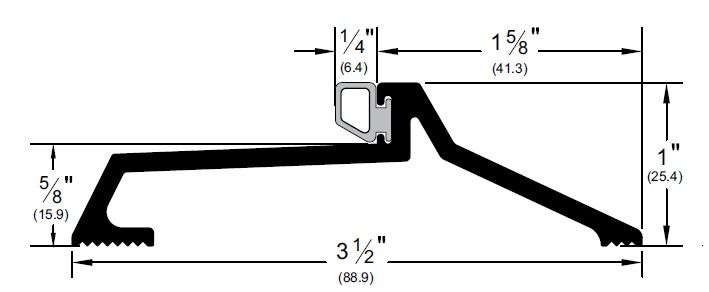

    P185 Product Specs:

    Required Door Clearance is .625" (5/8")



    Thermo Seal:



    Vinyl Seal:



    Pile Brush Seal:

    Click to Print



    P185 Installation Guide:
