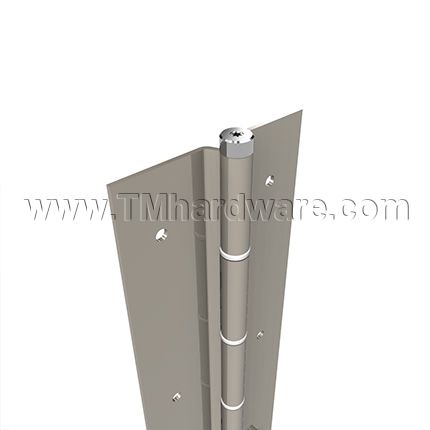

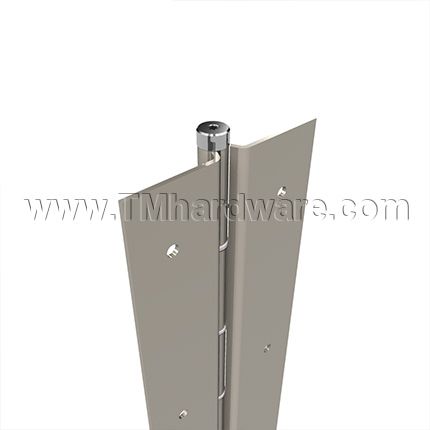

Markar FS910 Stainless Steel Toilet Partition Hinge, Flush Full Surface

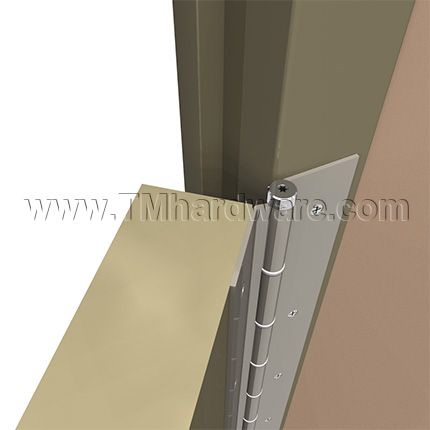

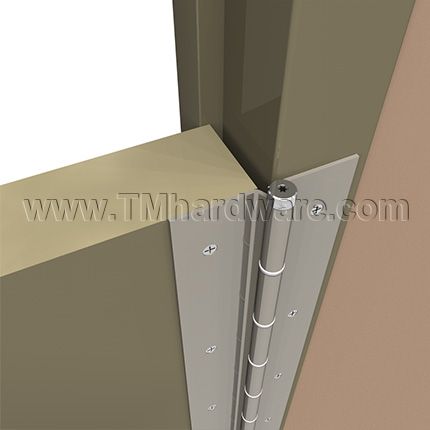

Markar FS910 is a Heavy-Duty Full Surface Leaf Toilet Partition Hinge which is attached to the surfaces of the door and frame. This hinge is designed for doors weighing up to 80 lbs. and a maximum width of 3'0". Hinge is Stainless Steel with Satin finish and available in standard stock sizes, see below for details and pricing.
PRICED PER PIECE
Marker FS910 is a Pin and Barrel Type Continuous Stainless Steel Concealed Leaf Toilet Partition Hinge.
-
Standard Sizes: 54", 57", 72". Custom sizing available, contact us or call at 845-388-1300 for details and pricing.
- Applications: Supports weights up to 80 lbs. 3'0" maximum door width. Non-handed. Ideal for damp or corrosive environments.
-
Design: Spring-Loaded Barrel Type Hinge, .25" diameter Stainless Steel pin with Stainless Steel spring mechanism. Torx tip cap to adjust spring tension with split nylon bearings. Gives complete support along the entire length of the partition door which provides a clean, finished look and virtually eliminates the "sight line" of multi-part systems.
-
Material: Heavy-duty 14 gauge Stainless Steel hinge.
-
Finish: US32D Satin Stainless Steel (630). Custom finishes are available, contact us or call at 845-388-1300 for details and pricing.
-
Mounting Hardware: Custom 12-24 x 11/16" S.S. Phillips Flat Head Undercut TEK Screws. TORX Adjust Screw adjusts tension on the door to close tightly for out-swinging ADA compliance.
-
Handing: This hinge is non-handed.
-
Patents: USA patent no. 4823437
Canadian patent no. 1303804
-
Modifications and Options: Adjustable monitoring switch, hospital tip hinges, medical bearings, dutch door hinge preparation, custom hole patterns, special sheared leaf, wide throw hinges, raised barrel(Swage), edge guard hardware cut-outs, special length hinges, Electrical Modification Access Prep, CTP-Current Transfer Preparation, CE - Current Transfer-Concealed, CT- Current Transfer- Contact Switch, ES-Exposed Monitoring Switch, blank hinges (minus hole pattern), lead lined cover (1/16" LEAD), security fasteners are available through our office. For details and pricing please contact us or call 845-388-1300.
-
Priced per Piece
- Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
Click to view our Markar B1921 Full Surface, Non-Handed Reinforcing Pivot.
This product has a 10 year warranty against defects in workmanship and material.
Click here to view our Full Warranty Policy.
Printable Documents: |
Click to print Markar FS910 Continuous Hinge Product Specs. |

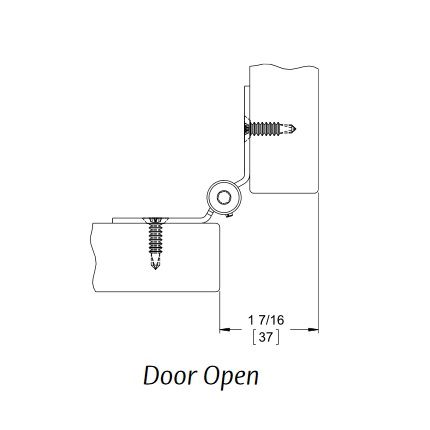

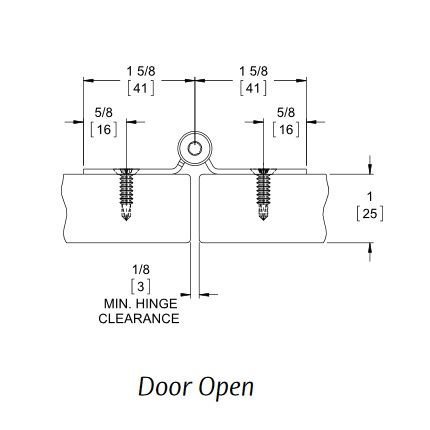

Product Specs: |
![]() ![]() |
