Markar HG105 Aluminum Hinge, Full Mortise with Hinge Guard

Markar HG105 Aluminum Hinge, Full Mortise with Hinge Guard
Markar

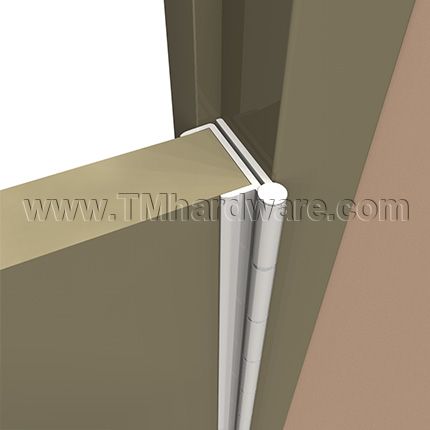

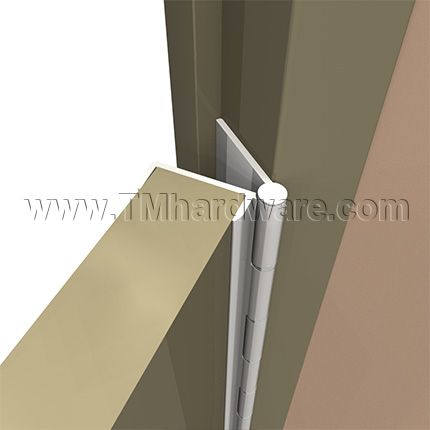

Markar HG105 is an Aluminum Full Mortise Hinge which is mortised to the door edge and frame rabbet with edge guard for added protection.  This hinge is designed for doors weighing up to 600 lbs. and a maximum width of 4'0". Hinge is made from Extruded Aluminum Alloy with a choice of Clear Anodized or Dark Bronze Anodized finishes. Available in standard stock sizes, see below for details.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      MRHG105_79_RH_CR
    • Market price:$862.00
      • save 25%
    • Starting price: Price: $646.50 per item

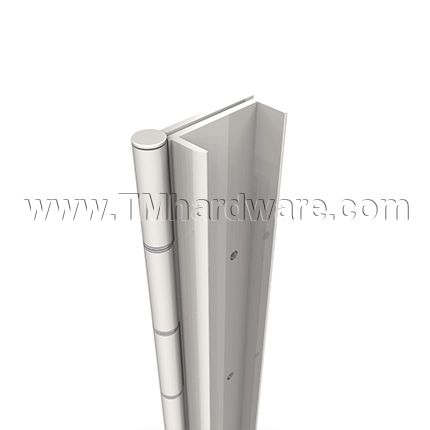

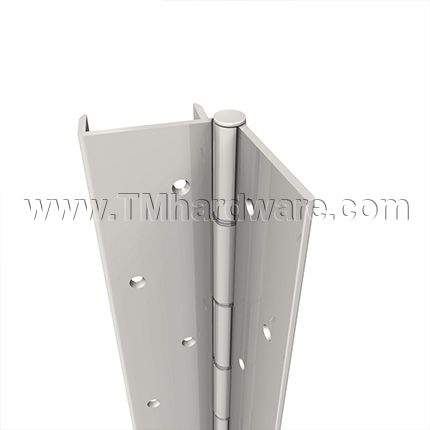

    Marker HG105 is a Pin and Barrel Type Continuous Aluminum Full Mortise Hinge with Edge Guard.

    • Standard Sizes: 6'8", 7'0", 7'2", 8'0". Custom sizing available, contact us or call at 845-388-1300 for details and pricing.

    • Applications: Supports weights up to 600 lbs. 4'0" maximum door width. Extruded with 30% more aluminum giving it exceptional strength and durability. Hinge can be used in conjunction with automatically operated aluminum doors that have heavy cart traffic. Ideal for both commercial and institutional doors, shipping and receiving doors as well as storefronts where door edge protection is critical.

    • Design: Constructed from 6063-T6 Aluminum Alloy,  .187" diameter stainless steel pin with medical bearings and aluminum end pins. Each knuckle 2", including split nylon bearing at each separation for a quiet, smooth, self-lubricating operation. Fasteners concealed when door is closed.

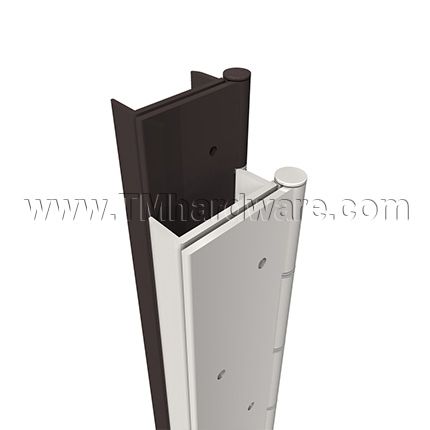

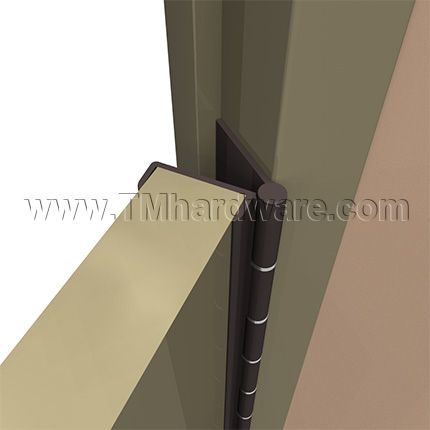

    • Finish: Clear Anodized (628) or Dark Bronze Anodized (313) finishes for hinge, Brushed Aluminum finish on Security Moldings. Custom finishes are available, contact us or call at 845-388-1300 for details and pricing.

    • Mounting Hardware: Custom 12-24 X 11/16" S.S.Phillips Flat Head Undercut TEK Screws.

    • Handing: Specify Handing when ordering hinge. Select handing from options above. Not sure what handing is required for your door? See How to Determine Handing / Swing of Door.

    • Certifications: ANSI/BHMA Standard A156.26 Grade 2.

    • Modifications and Options: Adjustable monitoring switch, hospital tip hinges, medical bearings, dutch door hinge preparation, custom hole patterns, special sheared leaf, wide throw hinges, raised barrel(Swage), edge guard hardware cut-outs, special length hinges, Electrical Modification Access Prep, CTP-Current Transfer Preparation, CE - Current Transfer-Concealed, CT- Current Transfer- Contact Switch, ES-Exposed Monitoring Switch, blank hinges (minus hole pattern), lead lined cover (1/16" LEAD), security fasteners are available through our office. For details and pricing please contact us or call 845-388-1300.

    • Please note: This hinge is not fire-rated.

    • Priced per Piece

    • Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    Click to view our Markar EG108 Adjustable Aluminum Edge Guard.

     This product has a 25 year warranty against defects in workmanship and material.

    Click here to view our Full Warranty Policy.

      • SKU
        MRHG105_79_RH_CR
    • QuickShip
      No
    • Manufacturer
      Markar
    • MPN
      HG105
    • Finish Options
      Clear Anodized, Dark Bronze Anodized
    • Handing
      Right Hand, Left Hand

    Printable Documents:

     Click to print Markar HG105 Continuous Hinge Product Specs.

    Product Specs:

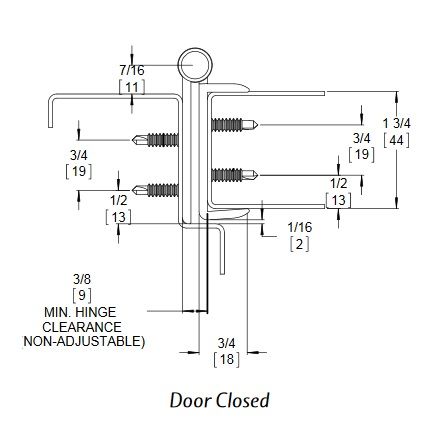

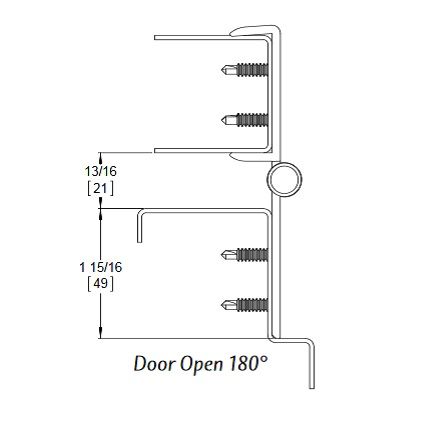

    Markar HG105 Aluminum Hinge Product SpecsMarkar HG105 Aluminum Hinge Product Specs

    Certifications:
    Markar Continuous Hinge Certifications




    SHIPPING / PROCESSING TIME:


    This product ships directly from the manufacturer.
    Please allow 2 - 3 weeks to ship
    • Domestic Shipping Fees- (Hawaii and Alaska not Included):
      • FREE SHIPPING on orders over $300.00 (excludes oversized and freight orders).
      • There will be a flat $19.99 shipping and handling fee on orders under $300.00.
      • Oversize: Orders containing items sized 50" - 95" have an oversize surcharge of $49.99.
      • Freight Items: Orders containing items sized 96" - 108" have an oversize surcharge of $199.00.
      • Oversize Freight Items: Orders containing items sized 109" and above have an oversize surcharge of $299.99.
      • Orders totals above $2,000.00 will ship free, regardless of size.
    • Alaska and Hawaii, Canada, and International Shipping:
    • Returns:
      • This product is custom made and is not returnable.
      • We are committed to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 35% restock fee.
      • CLAIMS FOR SHORTAGE OR DAMAGE IN TRANSIT: All claims must be made within Seven (7) days of receipt of goods.
      • Weatherstripping products will not be considered for returns.
      • Item must be in new, re-saleable condition.
      • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
      • Return shipping is customer's responsibility. A return address will be provided with RMA#.
      • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
