Markar HG323 Stainless Steel Hinge, Concealed Leaf with Hinge Guard

Markar HG323 Stainless Steel Hinge, Concealed Leaf with Hinge Guard
Markar

Markar HG323 is a Heavy-Duty Concealed Leaf Continuous Hinge which is mortised to the frame rabbet and edge of the door with extended hinge guard .  This hinge is designed for door weighing up to 600 lbs. and a maximum width of 4'0". Hinge is Satin Stainless Steel and available in standard stock sizes, see below for details.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      MRHG323_79_RH
    • Market price:$1,475.00
      • save 25%
    • Starting price: Price: $1,106.25 per item
    Additional discounts will be applied when added to cart!

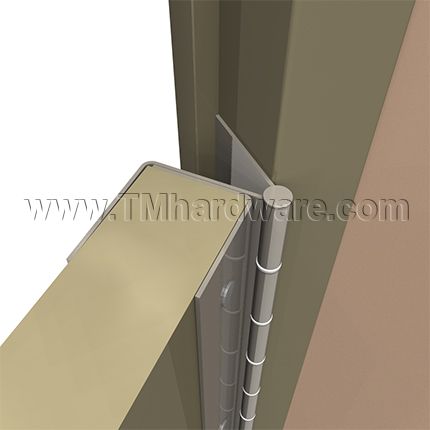

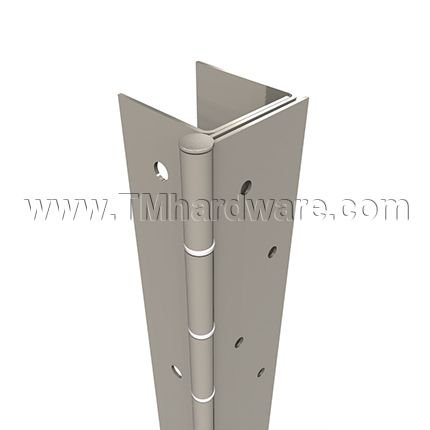

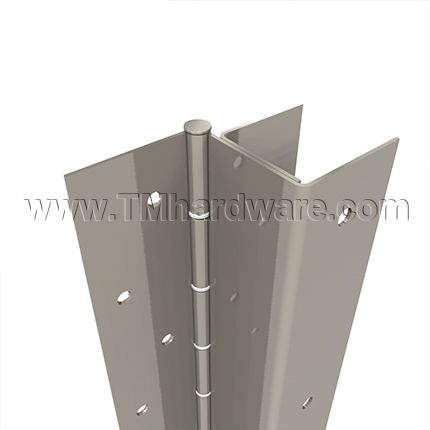

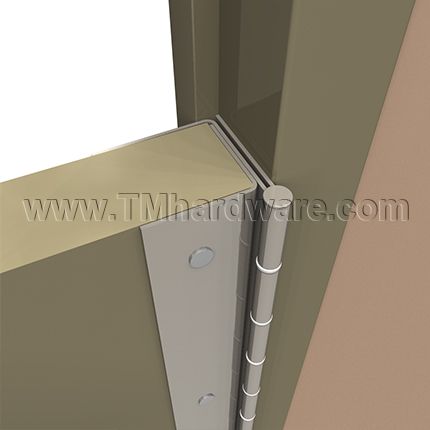

    Marker HG323 is a Pin and Barrel Type Continuous Stainless Steel Concealed Leaf Hinge with Extended Hinge Guard and Through Bolt Applications.

    • Standard Sizes: 6'8", 7'0", 7'2", 8'0", 10'0". Custom sizing available, contact us or call at 845-388-1300 for details and pricing.

    • Applications:  Supports weights up to 600 lbs. 4'0" maximum door width. Extra heavy duty for high traffic, high abuse door applications, including correctional facilities, high security locations and extra heavy doors. Ideal in extending the lifespan of doors that have split.

    • Design: Constructed from 12 gauge 304 stainless steel, .187" diameter 304 stainless pin (rod) with medical bearings and stainless steel end pins. Each knuckle 2", including split nylon bearing at each separation for a quiet, smooth, self-lubricating operation. Extended wrap model to sandwich the door between two leafs of Stainless Steel and secured with a through bolt.

    • Finish: US32D Satin Stainless Steel (630).  Custom finishes are available, contact us or call at 845-388-1300 for details and pricing.

    • Mounting Hardware: Custom 12-24 x 11/16" S.S. Phillips Flat Head Undercut TEK Screws and 1/4-20 x 1 5/8 ThruBolt Stainless Steel.

    • Handing: Specify Handing when ordering hinge. Select handing from options above. Not sure what handing is required for your door? See How to Determine Handing / Swing of Door.

    • Certifications: Fire-Rating: 3 hours on hollow metal doors. 90 minutes- hollow metal and composite. 20 minutes- wood door.
                            Classified in accordance with UL10C for positive pressure.
                            Evaluated in accordance with TAS 201-94, TAS 202-94, TAS 203-94, ASTM E330, ASTM E1886, ASTM E1996 and ANSI A250.13.
                            ANSI/BHMA Standard A156.26 Grade 1.
                            Note: Fire label for doors and frames should be placed on the header and top rail of fire rated doors and frames.

    • Modifications and Options: Adjustable monitoring switch, hospital tip hinges, medical bearings, dutch door hinge preparation, custom hole patterns, special sheared leaf, wide throw hinges, raised barrel(Swage), edge guard hardware cut-outs, special length hinges, Electrical Modification Access Prep, CTP-Current Transfer Preparation, CE - Current Transfer-Concealed, CT- Current Transfer- Contact Switch, ES-Exposed Monitoring Switch, blank hinges (minus hole pattern), lead lined cover (1/16" LEAD), security fasteners are available through our office. For details and pricing please contact us or call 845-388-1300.

    • Priced per Piece

    • Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    Click to view our Markar HG326 Pin and Barrel Hinge with Adjustable Hinge Guard and Swing Clear Action.

     This product has a 25 year warranty against defects in workmanship and material.

    Click here to view our Full Warranty Policy.

      • SKU
        MRHG323_79_RH
    • QuickShip
      No
    • Manufacturer
      Markar
    • MPN
      MHG323
    • Handing
      Right Hand, Left Hand

    Printable Documents:

     Click to print Markar HG323 Continuous Hinge Product Specs.

    Product Specs:

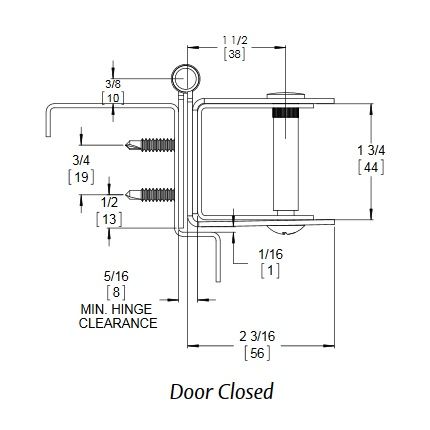

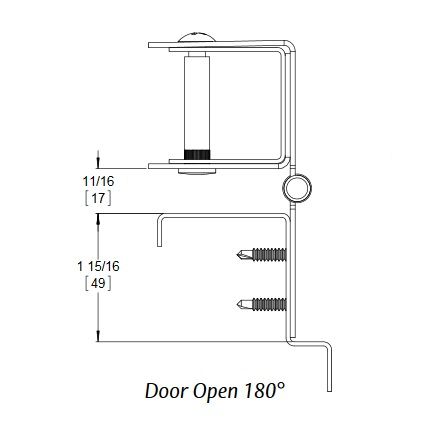

    Markar HG323 Pin and Barrel Hinge Product SpecsMarkar Pin and Barrel Hinge Product Specs

    Certifications:
    Markar Continuous Hinge Certifications



    Click to print Installation Instructions for Markar HG323 Pin and Barrel Hinge.

    General Information:

    All holes in the hinge must be drilled correctly and fasteners properly installed. Failure to use the fasteners supplied by our manufacturer will void the UL or WHI fire rate listing.

    There are three fastening options for the frame; sheet metal, machine or self-drilling Tek screws. If the frame is unreinforced, use option A. Follow option B if the door is reinforced or at least 1/8" thick. If you use the self-drilling Tek screws (recommended for grout-filled frames) follow option C. If the grout is hard, drilling a pilot hole can help. Perform each step of these instructions unless specifically labeled A, B or C.

    Installation:

    1. Place hinge on frame. Allow 1/8" between top of hinge and underside of header. Allow 1/16" between stop and edge of hinge.

    2. Mark all the hole locations on the door jamb with the hinge held firmly in place.

    3. Center punch each hole. The use of our center punch (can be ordered through our office) can help center the hole so that the fasteners will enter straight. The taper on the tool sits in the countersunk hole on the hinge.

    4. For instructions A and B, drill all the holes using a #25 bit.

    5. For instructions B, tap the holes for a 10-24 thread.

    6. Place the hinge on the edge of the door. Carefully line up the hinge with the top of the door.

    7. Mark all the hole locations on the door with the hinge held firmly in place.

    8. Center punch each hole.

    9. Drill the top and bottom holes through the face of the door using a #"W" (0.386" diameter) drill.

    10. With the door leaf guard wrapped around the door's edge, place sleeve bolts through the flanges and door into the top and bottom holes. Screw 10-24 x 1/2" flat head screws into the sleeve bolts from the opposite side of the door.

    11. Attach the door and hinge to the frame. For instructions A and B using 10-24 x 1/2" flat head undercut machine screws. For  instructions C, using self-drilling Tek screws.
