Zero #159FS-A Meeting Stile, Mortised Aluminum Track with Fire Stop Material
This Zero #159FS-A Meeting Stile is ideal to restore lost fire ratings to a set of doors. The aluminum track filled with INTUMET™ Fire Stop Material is mortised into the edge of the door. The Fire Stop Material expands when heated to a high degree, which halts the transfer of fire and smoke, see below for more information. Length is custom cut to size.
PRICED PER FOOT.
Reminder- If being purchased for both doors, select 'Quantity 2' or as needed.
This meeting stile is an ideal option for restore lost fire ratings to a set of doors. The interior of the aluminum mill finish track is filled with INTUMET™ Fire Stop Material which expands when heated to a high degree. This halts the spread of fire and smoke and ensures higher fire resistance.
This meeting stile is filled with FS3003 INTUMET™ Material. For more information, see Understanding Intumescent Fire Stop Material.

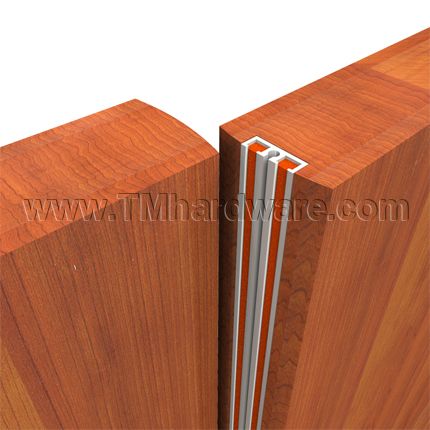

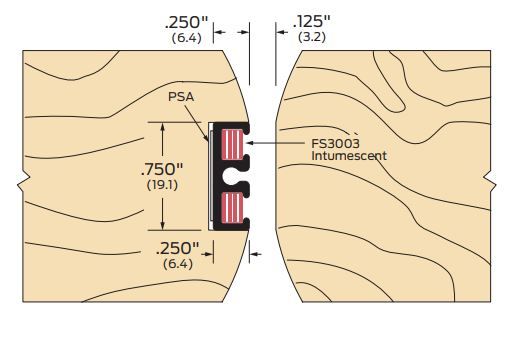

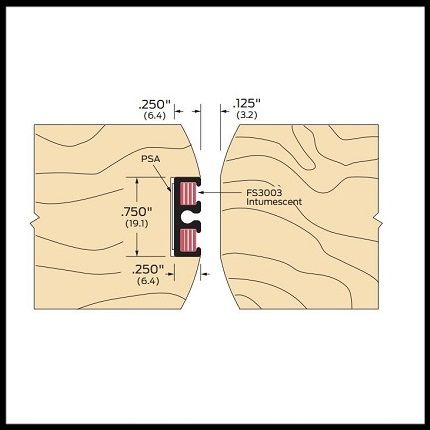

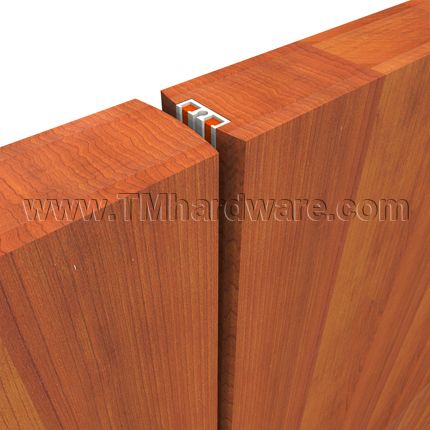

The aluminum track is fully mortised into a .25" x .75" cavity and will not alter the appearance of the door. The fully mortised aspect of this door hardware is great for high end or designer doors which prefer to maintain the integrity of the design while not compromising on safety.

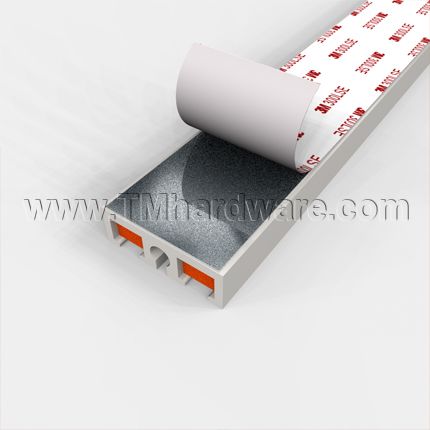

Additionally, the aluminum track has a PSA Self-Adhesive Backing for simple installation. No screws are required for installation!
Reminder, if being purchased for both doors, select 'Quantity 2' or as needed.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship
Click here to view our Full Warranty Policy.
This product can also be purchased with an additional seal, see our Zero International #59FS-A_MS Mortised Meeting Stile with Neoprene Blade and FS Insert.
-
QuickShipNo
-
ManufacturerZero International
-
MPN159FS
- About This Product
-
Retainer MaterialAluminum
-
Door TypeDouble Active Doors
-
MountingFully Mortised
-
- Dimensions
-
Seal Height.750"
-
Width.250"
-
- Finishes
-
FinishMill Finish Aluminum (US27)
-

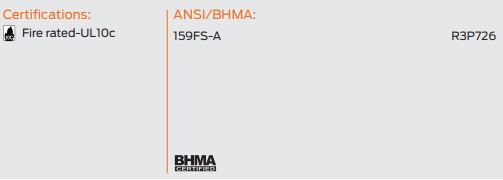

- Compliance Details
-
Compliance DetailsFire Rated, BHMA Certified
-
ANSI DesignationR3P726
-
Warranty1 Year Limited Warranty
-
Click to view more information on this product's UL Fire Rating.
