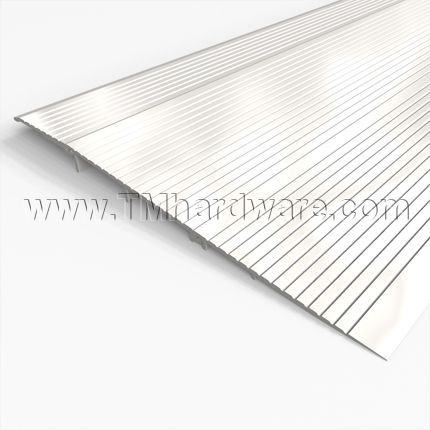

Pemko #PR.5OS Modular Ramp with Top Plate, Aluminum .5" Height, 9.25" Length

Modular Ramps are designed to transition offset floor conditions and ease movement for those with limited mobility. This ramp compensates for a .5" floor offset and has a top plate to ensure a smooth transition. Available in high quality Aluminum or Aluminum PemKote™ Non-Slip surface and optional, though recommended, Miter Returns (see below).

PRICED PER FOOT

See tabs below for additional information

Finish
Top Plate
Miter Return
Size (Inches)

Quantity

Add to compare

Modular Ramps are designed to transition offset floor conditions and ease movement for those with limited mobility. This ramp compensates for a .5” floor offset and has a short or long top plate which ensures smooth transition and protects the upper floor surface. This ramp is wheelchair compatible and meets the slope requirements for Americans with Disabilities Act (ADA). The grooved surface allows for a stronger grip, to prevent slipping.

Finishes: Available in standard Aluminum Mill Finish or with Aluminum PemKote™ Non-Slip surface. PemKote™ is highly recommended for all thresholds placed in exterior conditions where moisture may be present.

Miter Return Ends Pieces: The use of Miter Returns are recommended to seal the sides of the ramps (see detailed images). However, the miter returns do not meet the ADA slope requirements and are not ADA compliant. If miter returns are not used, it is recommended to fill and feather the threshold ends with grout - do not leave the ramp ends open.

Ramp has a total of 3 components which are easily interlocked and welding is not required for installation.

Width Available: Standard widths are available for purchase through our website, however, up to 185" can be purchased through our office. For details and pricing, please contact us or call us at 845-388-1300.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

Aluminum Mill Finish has a 5 year guarantee against defects in material and workmanship.

PemKote™ Non-Slip Finish carries a 10 year guarantee.

For a higher floor offset, see our Modular Ramp with Top Plate .75" Floor Offset.

To view this ramp without a top plate, see our .5" Floor Offset Modular Ramp.

- SKU
  PKR.5OSSA
QuickShip
No
Manufacturer
Pemko Manufacturing
MPN
R.50S, R.50SMR, R.50SS, R.50SSMR, R.5OS, R.5OSMR, R.5OSS, R.5OSSMR
Dimensions
- Offset Height
  .5" Height
- Width
  9.25" Width
- Length
  Custom Cut to Size
- Top Plate
  3.5" Short Top Plate, 7" Long Top Plate
- Short Top Plate Specifics
  Plate has a length of 3.5”. The ramp component length is 9.25”, making it a total 12.75” length. Ramp with short top plate has 2 screws per foot. (Ex: a 36" width ramp will have 3 rows of 2 screws, with a total of 6 screws).
- Long Top Plate Specifics
  Plate has a length of 7”. The ramp component length is 9.25”, making it a total 16.25” length . The large length of the plate works well with floor closers. Ramp with long top plate has 3 screws per foot. (Ex: a 36" width ramp will have 3 rows of 3 screws, with a total of 9 screws).
Ramp Design
- Material
  Aluminum
- Ramp Component
  Ramp End
- Ramp Type
  Top Plate Application
- Installation
  Supplied with #10 Stainless Steel wood screws.
- Drilling
  Drill holes are provided
Additional Options
- Miter Return
  None Required, Aluminum Miter Return (#R.5OMRA), PemKote Miter Return (#R.5OMRAK)
Finishes
- Finish
  Mill Finish Aluminum (US27), Aluminum PemKote™
Compliance Details
- Compliance Details
  Fire Rated, BHMA Certified, ADA Compliant
- Warranty
  5 Year Limited Warranty, PemKote™ Finish Carries a 10 Year Guarantee
