PC Henderson SIM200A Simultaneous Action Sliding Door Series, 200 Lbs. Door
Simultaneous Action (SIM) Sliding Doors allow individual bi-part doors to act as a single operating unit. When one door is opened or closed, the second door operates simultaneously. This series includes all the parts necessary to install SIM sliding panels up to 48" wide and 200 lbs. each. Choose between overhead and side wall mounting options.
PRICED PER SET
See tabs below for additional information
Key Product Features:
- Simultaneous Action Pulley Kit
- 200 lbs. per door panel
- Up to 48” per panel width
- Nylon Bodied Hanger
- Needle Bearing, Acetal Wheels for ultra smooth performance
- Mill finished aluminum
Included Parts:
- See product specs and detailed images for visual aid.
- Side Wall Mounting Option will also include Aluminum Bracket Kit. The side wall bracket reduces the amount of wall space needed to mount the track. Place one at each end with no more than three feet in between. Appropriate number of brackets come according to length ordered.
Materials: Track is made of lightweight yet durable aluminum. Hangar body is white nylon-bodied with needle bearing wheels.
Door Bottom Guide: White Nylon Door Bottom Guide for standard beneath-door application
Dimensions and Installation Information: See product specs and installation instructions for Hanger,Track and Pulley and Cable Kit in tabs to the right.
Additional Customization Options: Including dual bottom guide, roller guide, guide channel and surface mounted door thresholds are available. See customization tab to the right and detailed images above for more on these products.
Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.
Please see our Dual Track Bypass Sliding Door Series.
-
QuickShipNo
-
ManufacturerPC Henderson
-
MPNSIM200A, SIM200A_2815
- About This Product
-
Mounting TypeOverhead Mount, Sidewall Mount
-
Door MountSurface Mount
-
Track TypeBox Track
-
System TypeBi-parting
-

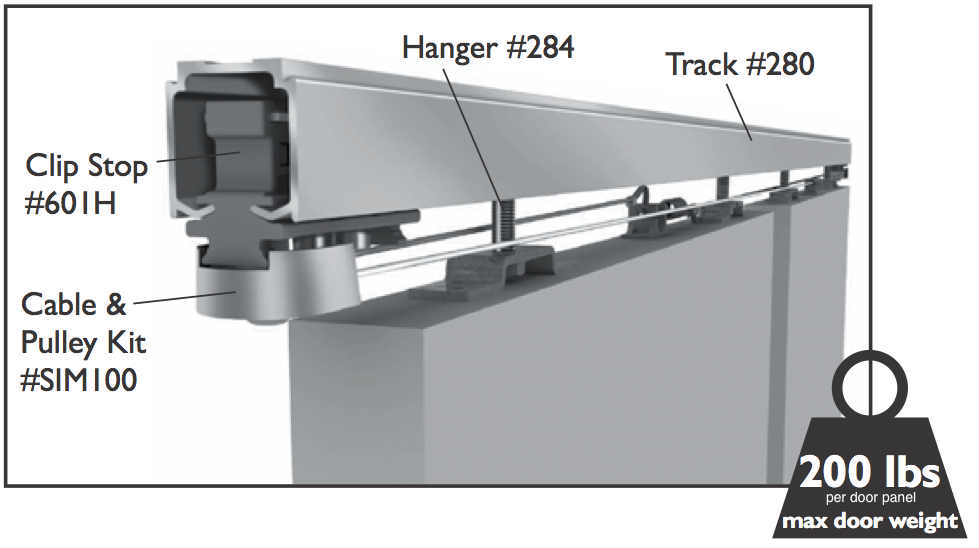

Included PartsAluminum Track - P280 (1 ea.)
Nylon-bodied, and needle bearing hanger for smooth operation. Wheels made of acetal. - P284 (4 ea.)
Nylon in-Track Clip Stop - P601H (4 ea.)
White Nylon Door Bottom Guide - P102N (2 ea.)
SIM100 Cable and Pulley Kit (1 ea.)
Side Wall Mounting Option: Aluminum Brackets Kit for side wall mounting - P2815 (Pack of 5) -
MaterialAluminum
-
- Dimensions
-
Door Panel Weightup to 50 LB Doors
-
Door Width48" maximum
-
Door Thickness1" to 1 3/4" Thick
-
Track Length72" Track - 6 FT. System, 96" Track - 8 FT. System, 72" Track (x2) - 12 FT. System, 96" Track (x2) - 16 FT. System
-
- Special Features
-
Special FeaturesSimultaneous Action
-
- Compliance Details
-
Warranty5 Year Limited Warranty
-
Click to Print Installation Guide for Hanger and Track.
Click to Print Installation Guide for Pulley and Cable Kit.
To order any of these options, please contact us or call us at (845) 388-1300.
Customization Options:
1. Snap–On Fascia Cover (F134C): Aesthetic, clear anodized aluminum cover for concealing hangar, track, and wheels. When using fascia, offset hanger foot 1⁄8" closer to fascia face of the door. See detailed images.
2. Bottom Channel (94A): Used as a guide channel when using a Roller Guide. Roller guide is used instead of a mortise guide (described below).\
3. Roller Guide (106R/94): In place of a mortise in the bottom of the door for the bottom guide, this roller guide can be installed at the bottom of the door and used with a guide channel (94A).
4. Aluminum, 5” Wide Threshold with Guide Channel (971A): Used in place of a bottom channel with all the benefits of a threshold. Please contact us to order.
5. White Nylon Bottom Mortise Guide on Zinc Plated “L” Metal: A side wall bottom mortise guide which allows carpet or tile to be replaced without removing the door. (102WN)
