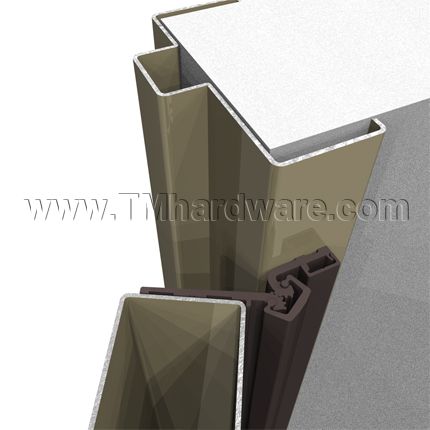

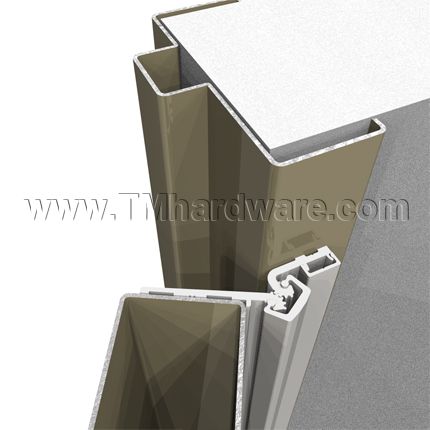

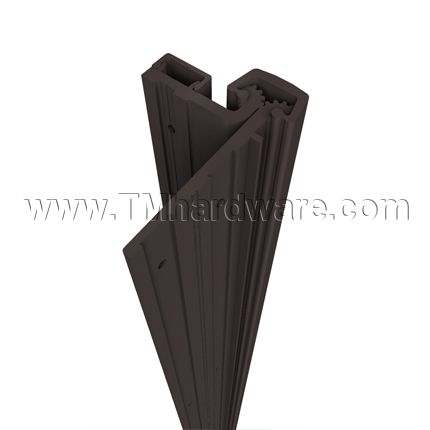

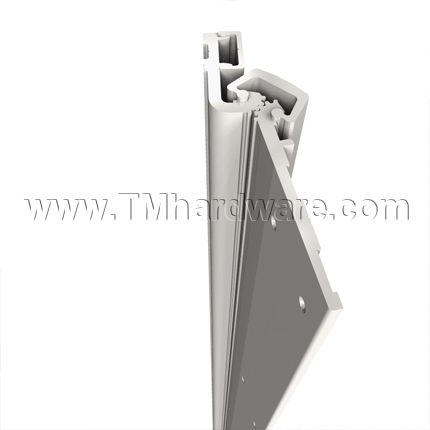

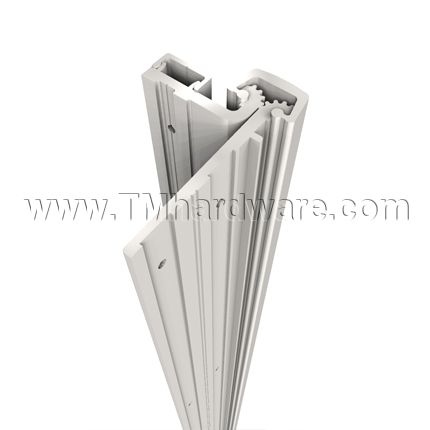

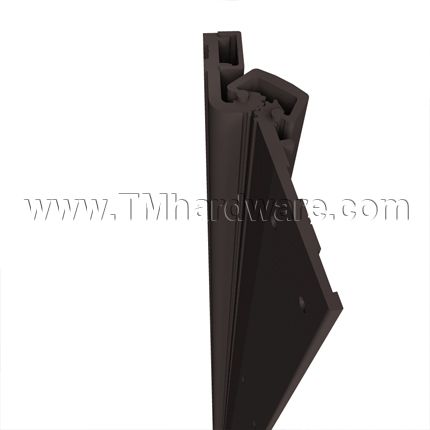

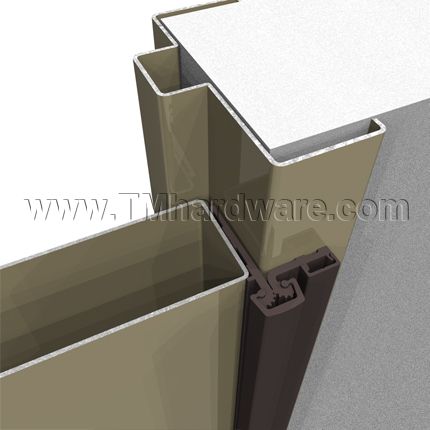

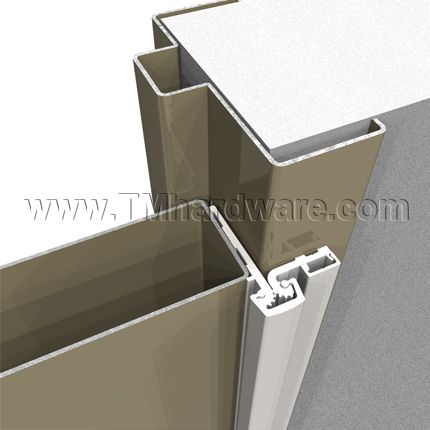

PemkoHingeâ„¢ #HM, Half Mortised Continuous Hinge

This Half Mortised Continuous hinge is ideal for retrofit construction, or when a door frame cannot be mortised. It is designed to require only 5/32" clearance, instead of the standard 5/16". Available with various options, two anodized finishes and in custom sizes.

Sizes: Length is custom cut to size. Custom cut sizes have a minimal cutting fee (included in price below). Stock sizes of 83", 85" and 95" does not include a cutting fee.

See tabs below for additional information
    • SKU
      PKCHM83
    • Market price:$294.25
      • save 24%
    • Starting price: Price: $225.00 per item

      • SKU
        PKCHM83
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      HM, HM_HD3, HM_HD1
    • Strength
      Standard Duty - Bearings @ 6", HeavyDuty Grade3-Bearing @ 3", HeavyDuty Grade1-Bearing @ 3"
    • Finishes
      • Finish
        Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)

    Printable Documents

    Click to Print Product Specs

    Click to Print Required Clearances for Full Mortised Hinge



    Product Specs

    Product Specs for Half Mortised Continuous Hinge by Pemko       Product Specs for Half Mortised Continuous Hinge by Pemko

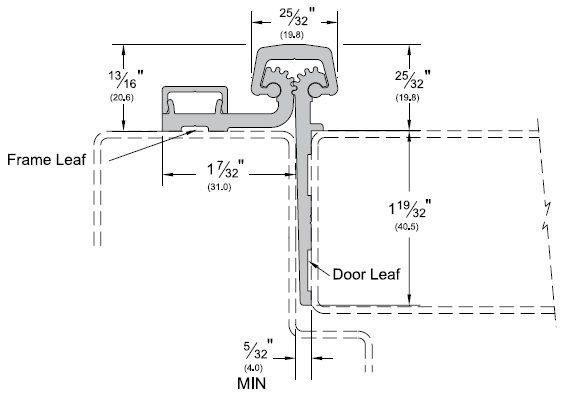

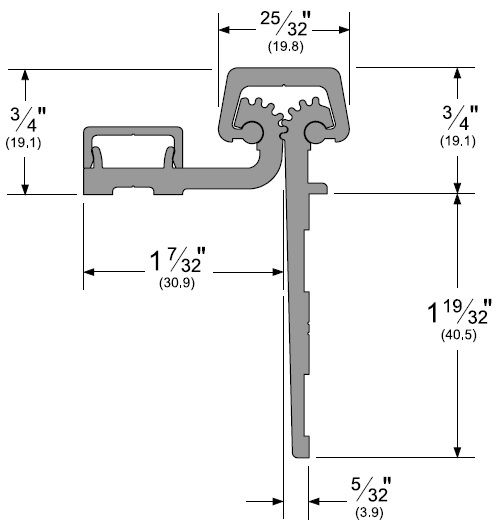

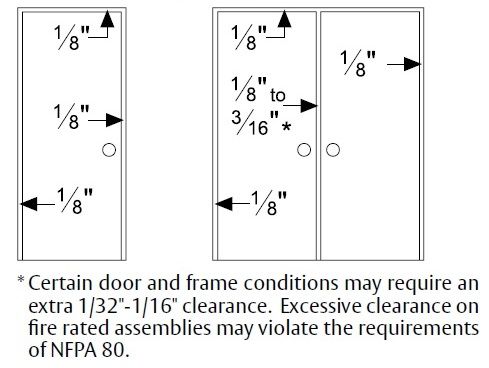

    Required Clearances for Half Mortised Hinges:

    Required Clearances for Half Mortised Continuous Hinge by Pemko

    Hospital Tip Modification

    A special modification is available for certain hinges which provides an extra bearing at the top of the gear cap, leaving no opening. A 45°angled cut on the gear cap and leaf covers provides a safe environment for hospitals and correctional facilities.

    Image of Hospital Tip Modification for PemkoHinge



































    Fire Pins for Fire Rated Assemblies

    • FirePinsâ„¢ are required to achieve 3-hour fire rating
    • Although PemkoHingeâ„¢ Continuous Hinges carry UL Fire Ratings unequaled in the industry, some applications may require the use of FirePinsâ„¢
    • FirePinâ„¢ applications fall within the UL guidelines for retro-fitting assemblies in the field. Expensive shop modifications and door/frame reinforcements are not required
    • FirePinsâ„¢ also add extra security to a door assembly

    FirePin Locations

    • The locations (illustrated below) indicate where holes should be drilled on the hinge edge of the door
    • These locations are appropriate for all hinge models (Full-Mortise, Full-Surface, and Half-Surface)





    Image of Fire Pin Application for PemkoHinge

    Image of Fire Pin Application for PemkoHinge

    Click to View Ratings Explained

    Compliance Details for Standard Full Mortised X-Series Continuous Geared PemkoHinge

    Cycle Requirements - Per BHMA Standard ANSI/BHMA A156.26-2006:

    Standard Duty Hinges conform to Grade 3-150 and Grade 3-300

    Heavy Duty Grade 3 Hinges conform to Grade 3-150, Grade 3-300, and Grade 3-600

    Heavy Duty Grade 1 Hinges conform to Grade 2-150, Grade 1-300, and Grade 1-600

    UL Fire Labeled:

    Hinges has been Tested and Certified by Underwriter Laboratories Inc. to standards UL10B, UL10C and UBC7.2 (Positive Pressure) for up to and including a 3-Hour Fire Listing fall all 4'0" x 10'0" and 8'0" x 10'0" door and frame assemblies. Fire listing certifications apply to all approved hollow metal and wood door assemblies in drywall or masonry wall construction.
