Pemko #2005VT Latching Panic Exit Threshold, 5" Aluminum or Bronze with Rubber Seal, .5" H

Pemko #2005VT Latching Panic Exit Threshold, 5" Aluminum or Bronze with Rubber Seal, .5" H
Pemko Manufacturing

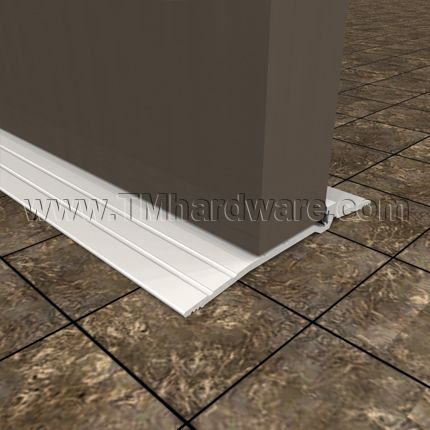

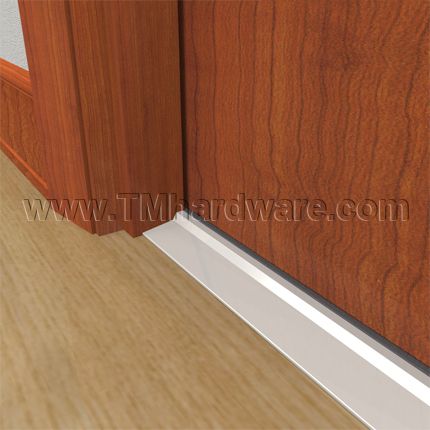

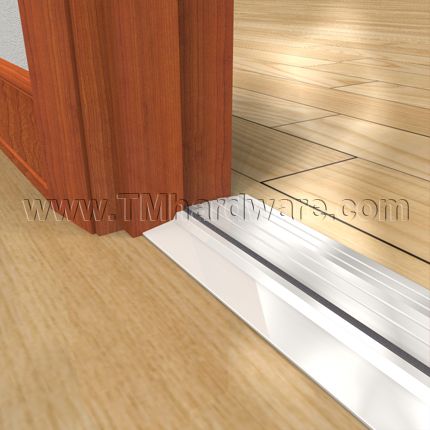

This Latching Panic Exit Saddle is designed to be used with a surface applied vertical rod exit device and as a door stop and rubber seal at the bottom of doors. It is made of high quality material that will ensure long-lasting usage. Available in various different aluminum, anodized, and Bronze Finishes and is custom cut to size.

Need it sooner? Stock sizes and options are available to ship within 1-3 business days. See our Pemko #2005VT Latching Panic Exit Threshold, 5" Aluminum or Bronze with Rubber Seal, .5" H, - QuickShip

PRICED PER FOOT

See tabs below for additional information
    • SKU
      PK2005AV
    • Market price:$33.36
      • save 10%
    • Starting price: Price: $30.02 per foot

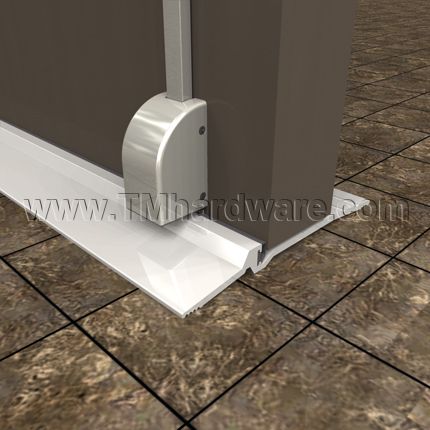

    Threshold design is compatible with a surface applied vertical rod exit device.

    Need it sooner? Stock sizes and options are available to ship within 1-3 business days. See our Pemko #2005VT Latching Panic Exit Threshold, 5" Aluminum or Bronze with Rubber Seal, .5" H, - QuickShip

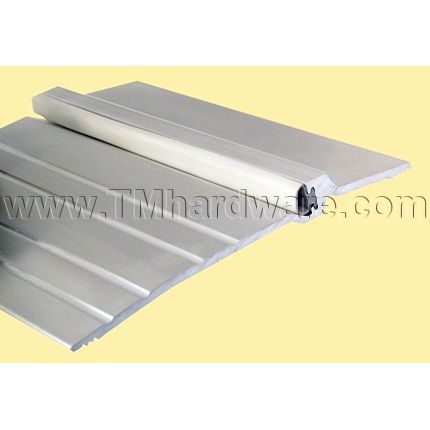

    Available Seals: It can be purchased with either a thermo or vinyl seal which compresses against the door to form a tight seal.

    Thermo vs. Vinyl Seal: The thermo seal is a higher grade rubber than its vinyl counterpart and has a greater acoustic performance rating which creates a stronger soundproof seal. It has better performance than vinyl in extreme cold or hot temperature, and is recommended for locations with extreme weather. The vinyl seal wears quicker than thermo, so for best performance, apply vinyl in areas with light traffic abuse.

    Finishes: Available in various aluminum finishes and bronze mill finish (Oil Rubbed Bronze can also be purchased through our office for an additional 40% of standard bronze pricing)

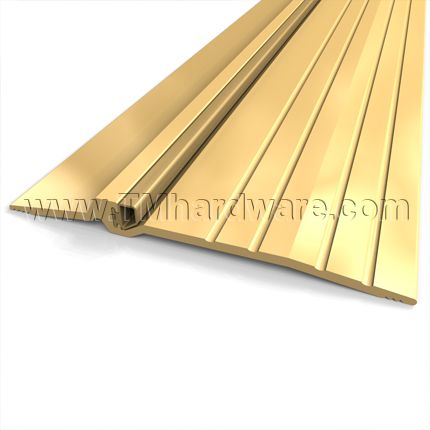

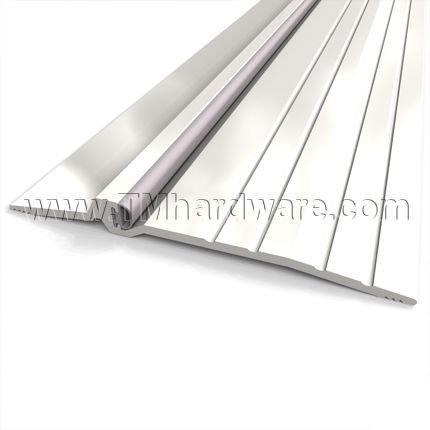

    Insert Colors: The following inserts are supplied with each threshold: Thermo Seals- Aluminum, Bronze and Dark Bronze are supplied with a Black Thermo Insert. Gold is supplied with a Gold Thermo Insert. Vinyl Seals- Bronze, Dark Bronze and Gold are supplied with a Black Vinyl Insert. Aluminum is supplied with a Gray Vinyl Insert.

    A Note on Finishes: Aluminum Mill Finish is plain smooth metal as it comes from the mill, without a coating. Bronze is a mill finish, sometimes referred to as Architectural Bronze. It is a solid bronze piece, which increases longevity and aesthetics, thus the large difference in price. It gets darker in color in time when exposed to the environment. Anodizing is an electrolytic process that applies a corrosion-resistant coating to the aluminum for longer wear and color maintenance.

    Compliance Details: See Product Data tab to the right

    Installation: Installation instructions and screws provided. Screws are colored to coordinate with saddle. If threshold is being drilled into concrete, an Expansion Anchor is recommended.

    Drilling: Threshold is supplied drilled for easy installation

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.
     Click to view our Full Warranty Policy.



      • SKU
        PK2005AV
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      2005V, 2005T

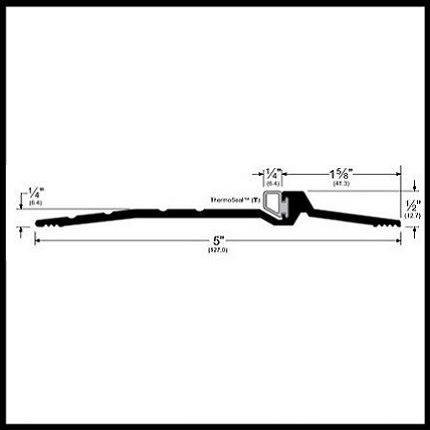

    • Dimensions
      • Overall Height
        .5" Height
      • Interior Height
        .25" Height
      • Overall Width
        5" Width
      • Threshold Length
        Custom Cut to Size
      • Required Door Clearance
        .375" Height
    • Product Design
      • Flat Saddle Design
        Fluted (Grooved) Design
      • Threshold Type
        Latching Panic Exit Threshold
      • Seal Type
        Thermo Seal, Vinyl Seal
      • Material
        Aluminum, Brass
    • Installation
      • Drilling Holes
        Drilling holes provided
      • Fasteners
        Fasteners Provided
    • Finishes
      • Finish
        Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313), Bronze Mill Finish (Brass), Flat Black (US19)
    • Compliance Details
      • Compliance Details
        ADA Compliant, Fire Rated, GreenGuard Gold Certified, Air Infiltration Rated, Sound Rated, BHMA Certified, UL Classified
      • ANSI Designation
        J16123, J36130
      • Warranty
        5 Year Limited Warranty
