Rockwood BF160 Door Pull Bar, 45° Offset, .75" Diameter - up to 12" CTC

Rockwood BF160 door pull bar, with a 45° offset and a diameter of .75", is ideal for use on architectural doors in high traffic areas. Many variations of material and finishes are available for any door of your choice. For details and options, see below.

PRICED PER PIECE



See tabs below for additional information
    • SKU
      RKBF160_US28
    • Market price:$68.00
      • save 10%
    • Starting price: Price: $61.20 per item


    Rockwood BF160 architectural grade and long lasting door pull. Is ideal for standard doors (1.75" thick), but can be custom made for any door of your choice. This 45° offset door pull bar is great for all standard doors, especially those in high traffic areas.

    Materials: Aluminum, Brass, Bronze, Stainless Steel

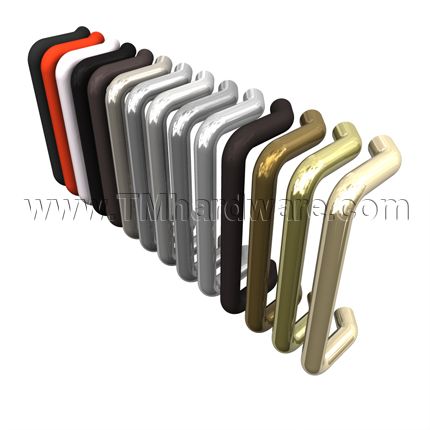

    Finishes: Polished Brass; Satin Brass; Satin Bronze; Satin Oil Rubbed Bronze; Dark Oxidized Satin Bronze, Equivalent; Polish Chrome; Satin Chrome; Clear Anodized Aluminum; Dark Bronze Anodized Aluminum; Black Anodized Aluminum; White Powder Coat; Red Powder Coat; Black Powder Coat; Stainless Steel, Polished; Stainless Steel, Satin; Satin Microshield Coated; Polished 316 Alloy; Satin 316 Alloy (All finishes comply with BHMA codes. See Product Data for compliance details.)

    A Note on Finishes: Dark Oxidized Satin Bronze, equivalent-This new finish provides the richness and warmth of the 10B/Satin Bronze Oiled "living" finish, but maintains its original color and appearance and will not fade or wear over time. Stainless Steel, Polished/US32-Enhanced corrosion resistance of stainless steel. 316 Alloy-Highly recommended for use if environment/job site has road salt, marine salt air, industrial/urban pollution. Microshield Coated-The ideal finish for anywhere there is a concern to control bacteria growth for demanding standards of cleanliness such as, hospitals, public restrooms or laboratories.

    Custom finishes available. For details and pricing please contact us or call us at 845-388-1300.

    Options: Back to back mounting in pairs, Type 18. For details and pricing, see options tab.

    Sizes: 3 sizes available

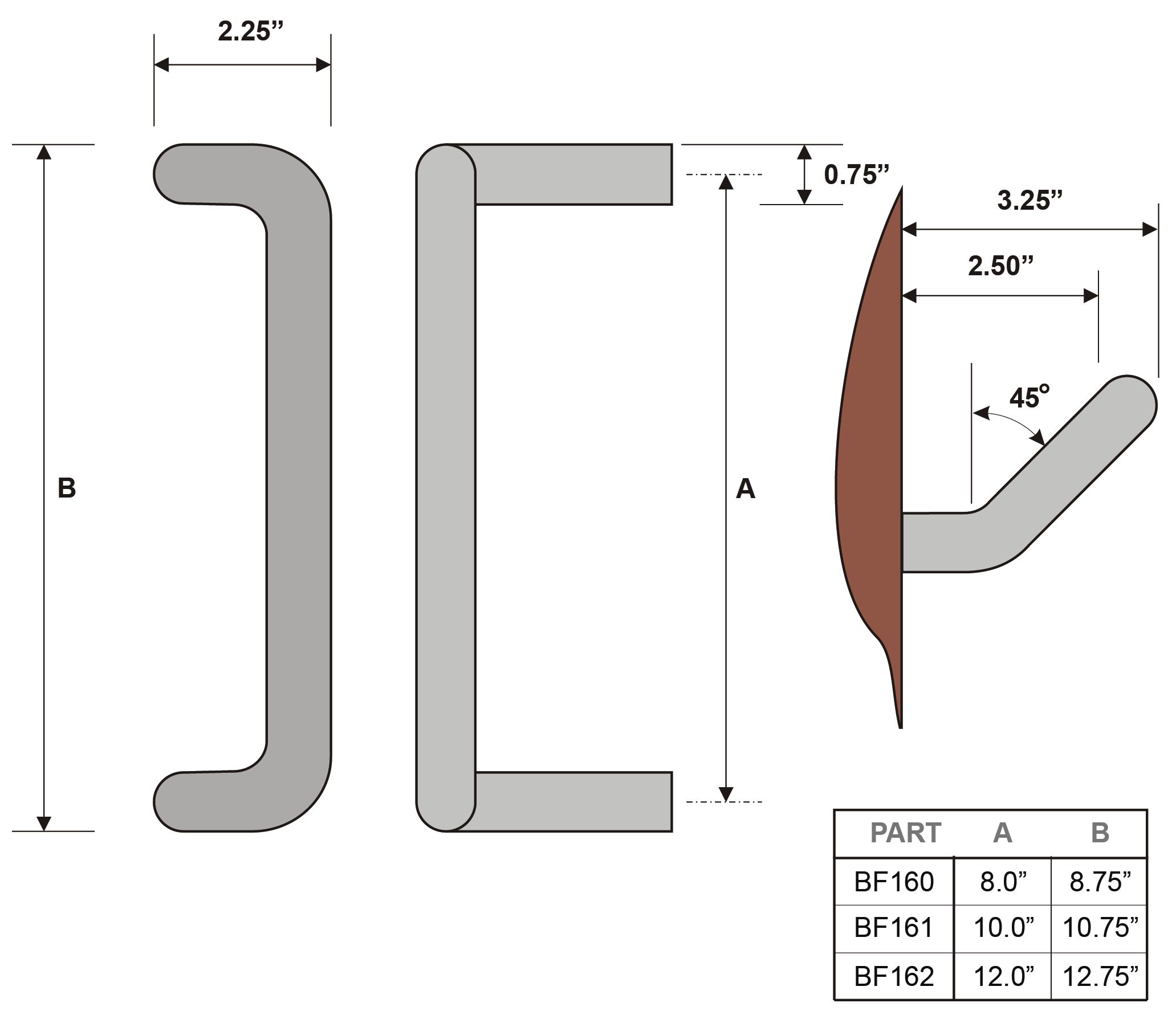

      Product #   Diameter  CTC   Overall Size  Projection   Clearance   Offset   Weight
      BF160   0.75"   8"   8.75"   3.25"   2.5"   3"   1.8 lbs
      BF161   0.75"   10"   10.75"   3.25"   2.5"   3"   2.0 lbs
      BF162   0.75"   12"   12.75"   3.25"   2.5"   3"   2.2 lbs

    Fastener: 1/4-20 x 2.25" thru bolt and finish washer (standard 1.75" door). Included.

    Custom fasteners available for doors other than 1.75" thick. For details and pricing please contact us or call us at 845-388-1300.

    Priced per piece.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in workmanship and materials.

    Click here to view our Full Warranty Policy.

    Click here to view our Rockwood YBF150 Offset Door Pull Bars with Base Plates.

      • SKU
        RKBF160_US28
    • QuickShip
      No
    • Manufacturer
      Rockwood Company
    • MPN
      BF160, BF161, BF162
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Oil Rubbed Bronze, Equiv. (10BE), Polished Chrome (US26), Satin Chrome (US26D), Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Black Anodized Aluminum (315), White Powder Coat, Red Powder Coat, Black Powder Coat, Polished Stainless Steel (US32), 316 Alloy Stainless Steel, Polished, Satin Stainless Steel (US32D), Microshield Stainless Steel, Satin, 316 Alloy Stainless Steel, Satin



     MOUNTING TYPES


    Back to Back



    Aside from the standard mounting option (with the included fasteners), Back-to-back mounting Type 18 is also available for this offset door pull with a diameter of .75".

    Note: This option is available for order through our office only. To order, please contact us or call us at 845-388-1300.

    To view more details on this mounting type, see Mounting Types for Offset Door Pulls.



    All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard:

    • Polished Brass-US3/605
    • Satin Brass-US4/606
    • Satin Bronze-US10/612
    • Satin Oil Rubbed Bronze-US10B/613
    • Dark Oxidized Satin Bronze, Equivalent-US10BE/613E
    • Polished Chrome-US26/625
    • Satin Chrome-US26D/626
    • Clear Anodized Aluminum-US28/628
    • Dark Bronze Anodized Aluminum-313/710
    • Black Anodized Aluminum-315/711
    • White Powder Coat-WPC
    • Red Powder Coat-RPC
    • Black Powder Coat-BPC
    • Polished Stainless Steel-US32/629
    • Satin Stainless Steel-US32D/630
    • Satin Microshield Coated-US32DMS
    • Polished 316 Alloy-US32316
    • Satin 316 Alloy-US32D316

    ​Door Pull Bar complies with ANSI A156.6: J402
