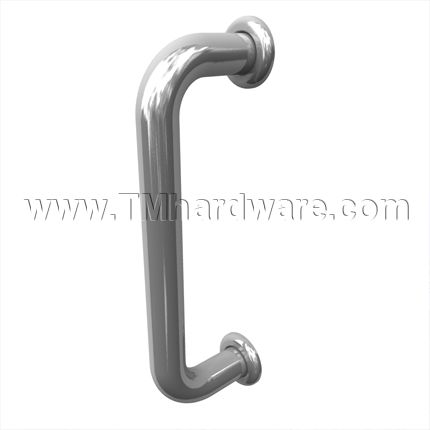

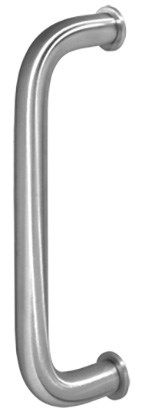

Rockwood #Y110 - Y118 Heavy Weight Door Pull Bar With Base Plates, 8" - 18" CTC
Rockwood heavy weight door pull bar with base plates, mounted with thru-bolt for wooden and metal doors, 1.75" thick. Base plates provide additional stability, ideal for wooden or glass doors (glass door compatible mounting is available through our office). Many sizes, materials and finishes available, see below.
PRICED PER PIECE
See tabs below for additional information
Rockwood Heavy Weight Door Pulls with Base Plates for Commercial Applications:

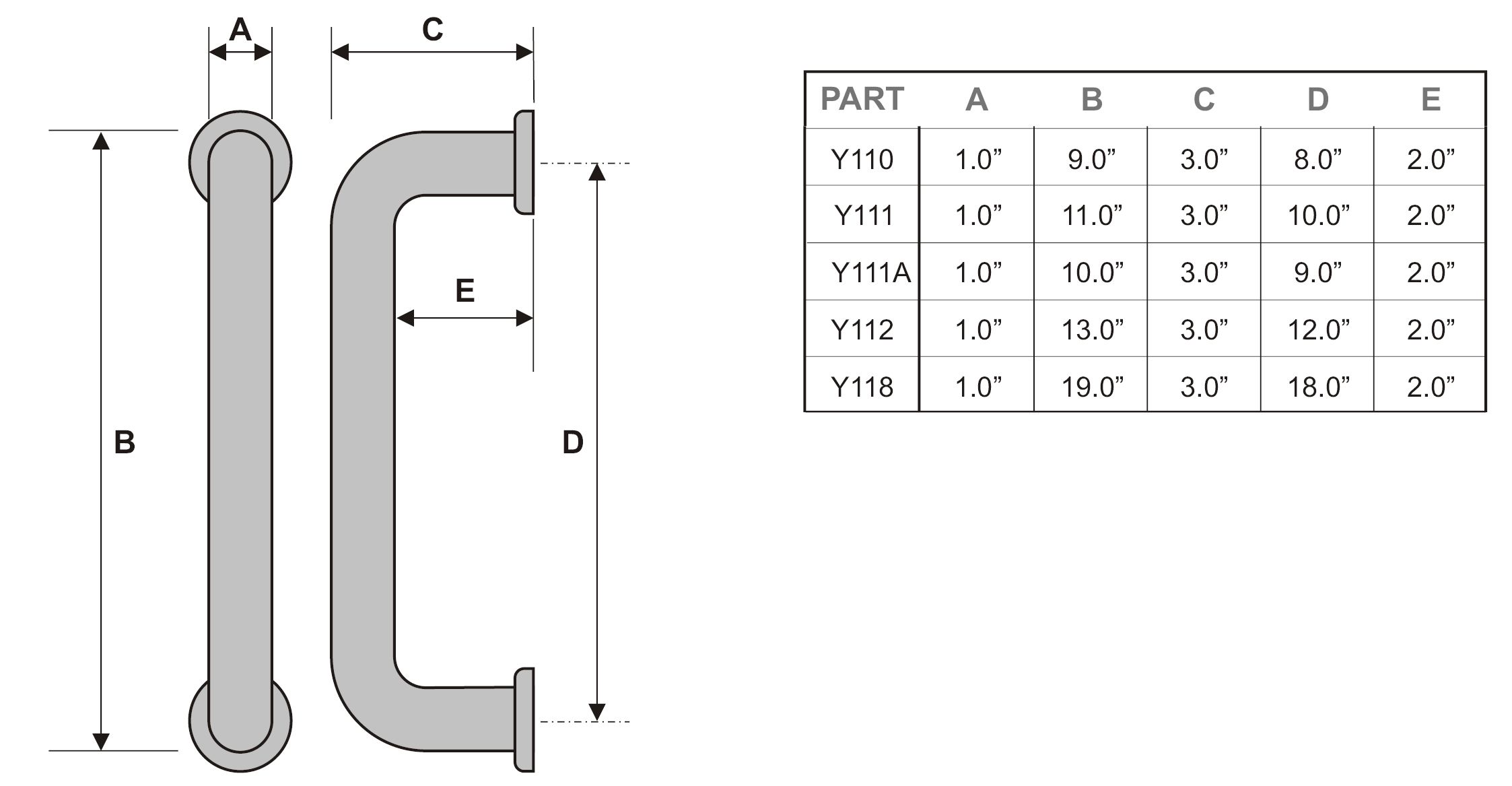

Product Dimensions: 5 products available (chart-inches)
| Product # | Material Size | CTC | Overall Size | Base | Projection | Clearance | Weight |
| Y110 | 1" dia. | 8" | 9-1/4" | 1-1/4" | 3-1/8" | 2-1/8" | 3.0 lbs. |
| Y111A | 1" dia. | 9" | 10-1/4" | 1-1/4" | 3-1/8" | 2-1/8" | 3.3 lbs. |
| Y111 | 1" dia. | 10" | 11-1/4" | 1-1/4" | 3-1/8" | 2-1/8" | 3.5 lbs. |
| Y112 | 1" dia. | 12" | 13-1/4" | 1-1/4" | 3-1/8" | 2-1/8" | 4.0 lbs. |
| Y118 | 1" dia. | 18" | 19-1/4" | 1-1/4" | 3-1/8" | 2-1/8" | 5.4 lbs. |
Material: Aluminum, Brass, Bronze, Stainless Steel
Features: 1/8" base plates improve stability on the door. Recommended for glass and wood doors.
Fastener: 1/4-20 x 2.5" thru bolt and finish washer (standard 1.75" door). Included.
Additional Fastener Options:
- For doors other than 1-3/4" thick, please state door thickness in order comments
- Back to back mounting in pairs, Standard and Heavy Duty Types 5, 13 - See Additional Options
- Concealed mounting single pulls, Standard and Heavy Duty Types 6, 6R, 8 - See Additional Options
Door Type: Wooden or Metal, 1-3/4" doors.
Custom finishes available. For details and pricing please contact us or call us at 845-388-1300.
Priced per piece.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in workmanship and materials.
Click here to view our Full Warrany Policy.
Click here to view our Rockwood 110 Heavy Weight Door Pull
-
QuickShipNo
-
ManufacturerRockwood Company
-
MPNY110,Y111A,Y111,Y112,Y118
- Finishes
-
FinishPolished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Polished Chrome (US26), Oil Rubbed Bronze, Equiv. (10BE), Satin Chrome (US26D), Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Black Anodized Aluminum (315), White Powder Coat, Extra Dark Bronze Anodized Alum. (314), Red Powder Coat, Black Powder Coat, Polished Stainless Steel (US32), 316 Alloy Stainless Steel, Polished, Satin Stainless Steel (US32D), Microshield Stainless Steel, Satin, 316 Alloy Stainless Steel, Satin
-
|
STANDARD (INCLUDED) MOUNTING TYPE - FOR 1-3/4" DOORS |
|
|
|
|
|
OPTIONAL MOUNTING TYPES - PLEASE PURCHASE THROUGH OUR OFFICE |
|
|
Also available in Heavy Duty Back to Back Mounting: features hex drive for positive tightening and large overall size for superior strength. Recommended for high frequency and rough service openings.
Also available in Heavy Duty Concealed Mounting: features two set screws 180º apart. To view more details on these mounting types, see Mounting Types for Door Pulls. |
All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard:
- Polished Brass-US3/605
- Satin Brass-US4/606
- Satin Bronze-US10/612
- Satin Oil Rubbed Bronze-US10B/613
- Dark Oxidized Satin Bronze, Equivalent-US10BE/613E
- Polished Chrome-US26/625
- Satin Chrome-US26D/626
- Clear Anodized Aluminum-US28/628
- Dark Bronze Anodized Aluminum-313/710
- Ex Dk Brz Anodized-314
- Black Anodized Aluminum-315/711
- White Powder Coat-WPC
- Red Powder Coat-RPC
- Black Powder Coat-BPC
- Polished Stainless Steel-US32/629
- Satin Stainless Steel-US32D/630
- Satin Microshield Coated-US32DMS
- Polished 316 Alloy-US32316
- Satin 316 Alloy-US32D316
Door Pull Bar complies with ANSI A156.6: J401
