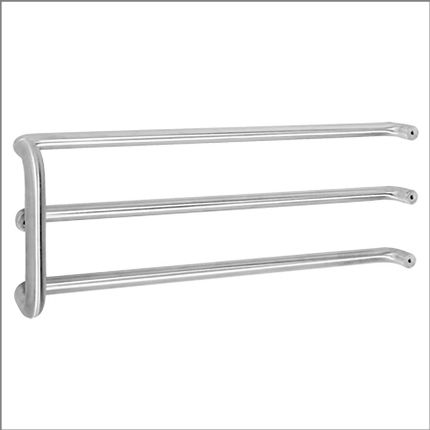

Rockwood 11047-3 / Series 47 Straight Triple Bar Set, up to 12" CTC

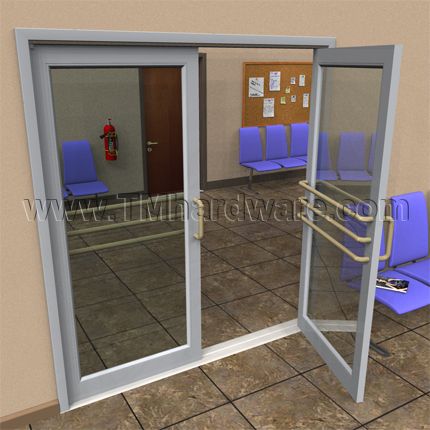

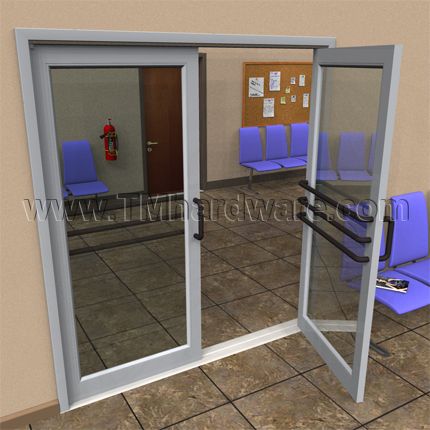

Rockwood 11047-3 Straight Triple Bar Sets, are commercial grade and long lasting. This set includes a door pull and a triple push bar to be mounted back to back on opposite sides of the door. Many variations of material and finishes are available. For details and options, see below.
PRICED PER SET
Rockwood 11047-3 straight triple bar set series is architectural grade and long lasting. They are all for standard doors (1.75" thick), but can be custom made for any door of your choice. These sets include a pull bar and a triple push bar.Â

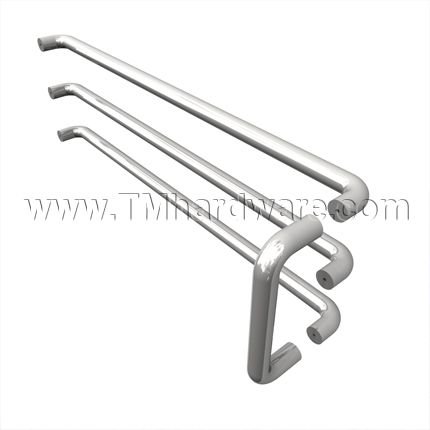

Materials:Â Aluminum, Brass, Bronze, Stainless Steel

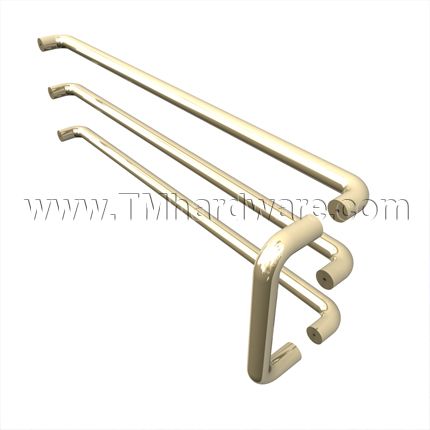

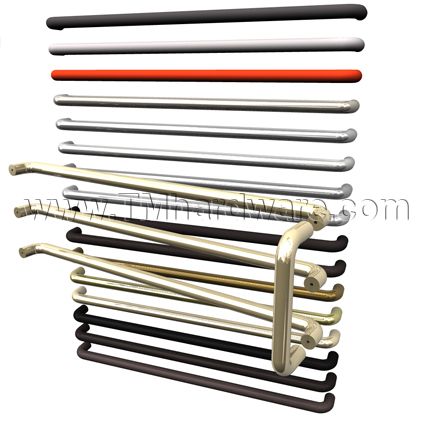

Finishes: Polished Brass; Satin Brass; Satin Bronze; Satin Oil Rubbed Bronze; Dark Oxidized Satin Bronze, Equivalent; Satin Chrome; Clear Anodized Aluminum; Dark Bronze Anodized Aluminum; Extra Dark Bronze Anodized; Black Anodized Aluminum; White Powder Coat; Red Powder Coat; Black Powder Coat; Polished Stainless; Satin Stainless; Satin Microshield Coated; Polished 316 Alloy; Satin 316 Alloy (All finishes comply with BHMA codes. See Product Data for compliance details.)

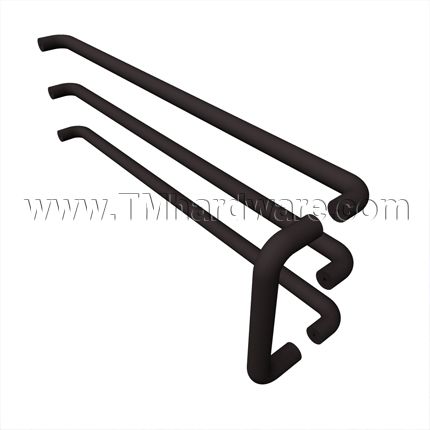

A Note on Finishes: Dark Oxidized Satin Bronze, equivalent - This new finish provides the richness and warmth of the 10B/Satin Bronze Oiled "living" finish, but maintains its original color and appearance and will not fade or wear over time. Stainless Steel, Polished/US32 - Enhanced corrosion resistance of stainless steel. 316 Alloy - Highly recommended for use if environment/job site has road salt, marine salt air, industrial/urban pollution. Microshield Coated - The ideal finish for anywhere there is a concern to control bacteria growth for demanding standards of cleanliness such as, hospitals, public restrooms or laboratories.
Custom finishes available. For details and pricing please contact us or call us at 845-388-1300.
Options:Â

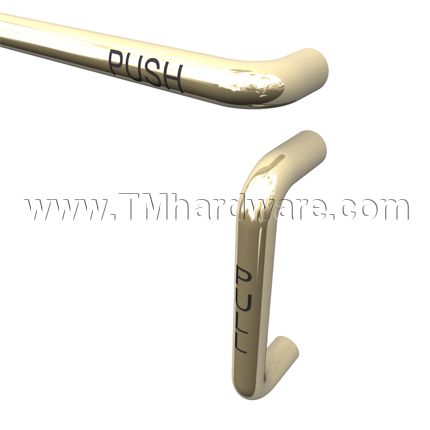

- Engraving options of "PUSH" and "PULL"-half inch letter height. Please specify door handing when placing your order for engraving. Click here to see How to Determine Door Handing.
Price: $94.50/word, $189.00 for both. - Heavy duty versions of fasteners-available through our office only. Please call us at 845-388-1300 to order.
Size:Â 1" diameter
Don't know what length push bar you need? Click here to view How to Size a Push Bar.
Note:Â Standard push bar price is up to 36" in length. For a longer push bar, call us at 845-388-1300.

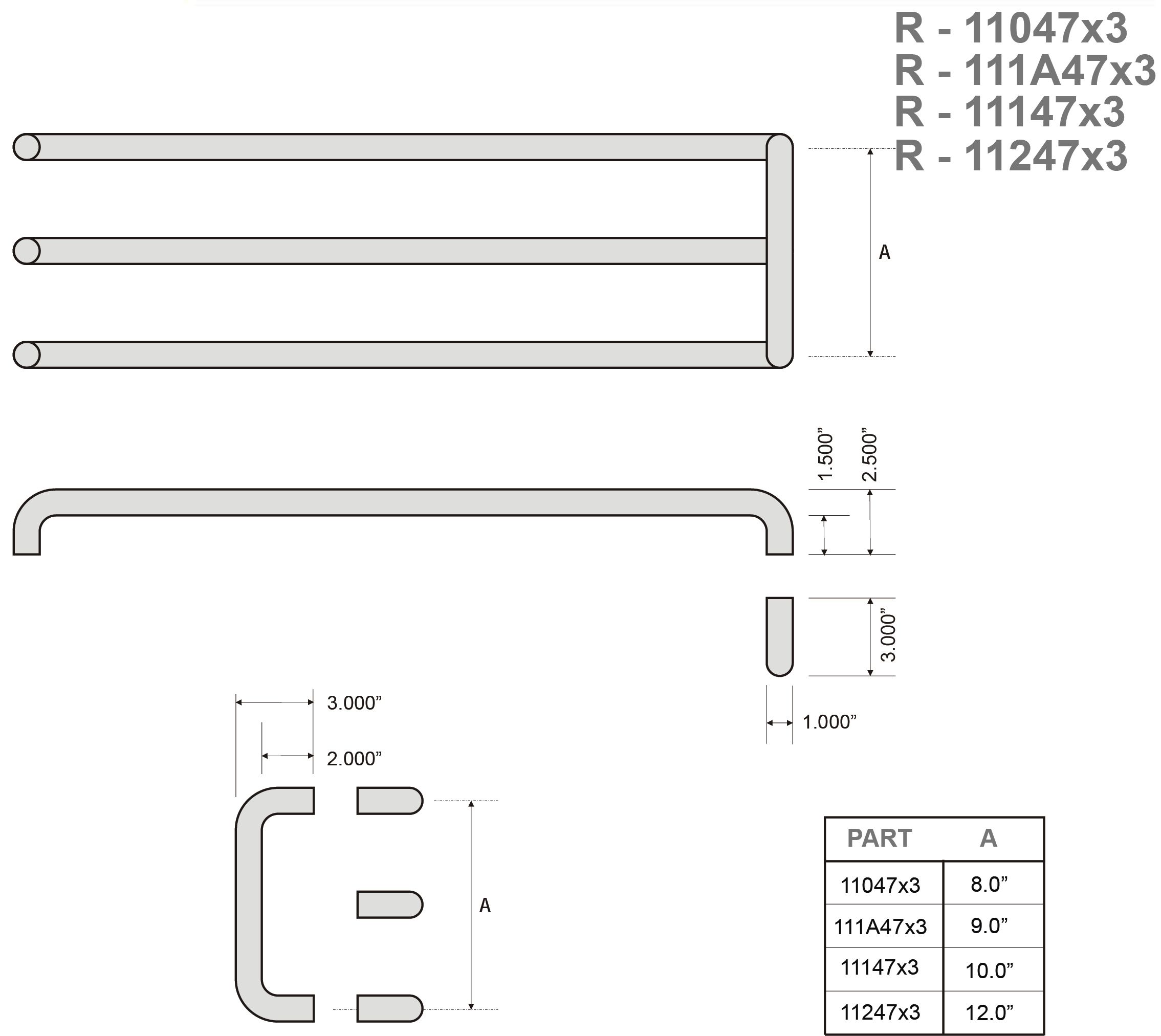

Pull Dimensions:
- Projection:Â 3"
- Clearance:Â 2"
Push Dimensions:Â
- Projection: 2.5"
- Clearance: 1.5"
More Dimensions:Â (chart)
  Product # |  CTC |  Weight |
 R11047-3 |  8" |  28.5 lbs |
 R111A47-3 |  9" |  28.7 lbs |
 R11147-3 |  10" |  29.0 lbs |
 R11247-3 |  12" |  29.5 lbs |
Mounting Details:Â This set can be mounted in a variety of ways. The Push Free Ends and Common End have separate mountings. Additionally, the mounting type will differ depending on the door type. See chart below for the available option of door type and mounting type, and select required mounting type from options above.Â
To view more details on each specific mounting types, see Straight Bar Set Mounting Types. Note: T3 Thrubolt Mounting is the standard mounting method for metal and wood doors and is included in the price.
  Door Material |   Mounting Types | Additional Prices | |
Push Free End | Common End | ||
 T1-Metal or Wood |   Decorative Bolt Mounting-Type 12 |   Back to Back Mounting-Type 5 |  $23.00 |
 T2-Glass |  Thrubolt Mounting-Type 15 |   Back to Back Mounting-Type 13 |  $2700 |
 T3-Metal or Wood |  Standard Thrubolt Mounting-Type 1 |   Back to Back Mounting-Type 5 |  $0.00-Included |
 T4-Metal |  Concealed Mounting-Type 6 |   Back to Back Mounting-Type 5 |  $11.00 |
 T5-Wood |  Concealed Mounting-Type 8 |   Back to Back Mounting-Type 5 |  $20.00 |
Fastener:Â Fasteners for selected door and mounting type included.
Custom fasteners available for doors other than 1.75" thick. For details and pricing please contact us or call us at 845-388-1300.
Priced per piece.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in workmanship and materials.
Click here to view our Full Warrany Policy.
Click here to view Rockwood's 11047-2 Straight Double Bar Sets.
-
QuickShipNo
-
ManufacturerRockwood Company
-
MPN11047-3; 111A47-3; 11147-3; 11247-3
-
Free End MountingT1-Decorative Bolt (M/W), T2-Thrubolt (Glass), T3-Standard Thrubolt (M/W), T4-Concealed (Metal), T5-Concealed (Wood)
-
EngravingNone, Push (Left Handed), Push (Right Handed), Pull (Left Handed), Pull (Right Handed), Push (LH) and Pull (RH), Push (RH) and Pull (LH)
- Finishes
-
FinishPolished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Oil Rubbed Bronze, Equiv. (10BE), Polished Chrome (US26), Satin Chrome (US26D), Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Extra Dark Bronze Anodized Alum. (314), Black Anodized Aluminum (315), White Powder Coat, Red Powder Coat, Black Powder Coat, Polished Stainless Steel (US32), 316 Alloy Stainless Steel, Polished, Satin Stainless Steel (US32D), 316 Alloy Stainless Steel, Satin, Microshield Stainless Steel, Satin
-
All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard:
- Polished Brass-US3/605
- Satin Brass-US4/606
- Satin Bronze-US10/612
- Satin Oil Rubbed Bronze-US10B/613
- Dark Oxidized Satin Bronze, Equivalent-US10BE/613E
- Polished Chrome-US26/625
- Satin Chrome-US26D/626
- Clear Anodized Aluminum-US28/628
- Dark Bronze Anodized Aluminum-313/710
- Extra Dark Bronze Anodized-314
- Black Anodized Aluminum-315/711
- White Powder Coat-WPC
- Red Powder Coat-RPC
- Black Powder Coat-BPC
- Polished Stainless Steel-US32/629
- Satin Stainless Steel-US32D/630
- Satin Microshield Coated-US32DMS
- Polished 316 Alloy-US32316
- Satin 316 Alloy-US32D316
​Door Pull Bar complies with ANSI A156.6: J504
