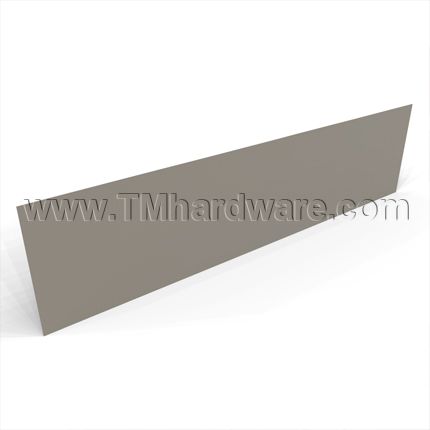

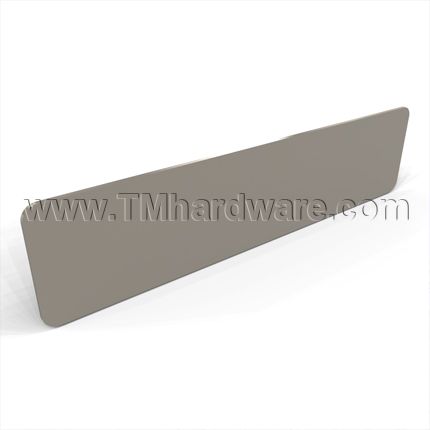

Rockwood Standard Duty Shaped Metal Door Plate, .050" Thick

Rockwood's standard duty shaped metal door plate is .050" thick. Also known as protection plates, these metal door plates protect the door finish from getting scratched and dented. In addition, these plates add a neat finishing touch to any door. This plate can serve the purpose of a kick plate, mop plate, stretcher plate or armor plate. All plates can be easily mounted with screws (included with standard purchase). Available in stainless steel with a choice of 10 stock sizes which can be purchased through our website.

Additional custom sizes are available for purchase through our office. To place an order, call us at 845-388-1300.

A quantity discount is applied on orders of 11+ plates. Further discounts applied to orders of 21 plates or more. Adjust quantity for discounts to be applied.

PRICED PER PIECE

See tabs below for additional information

Size
Shape Design
Options

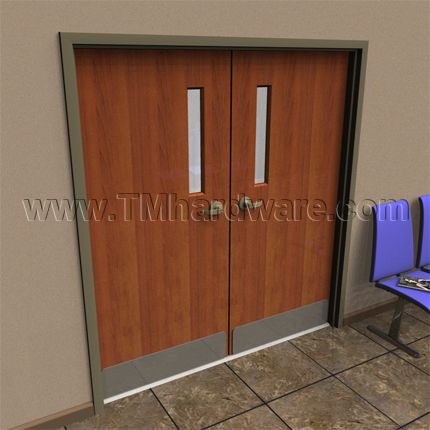

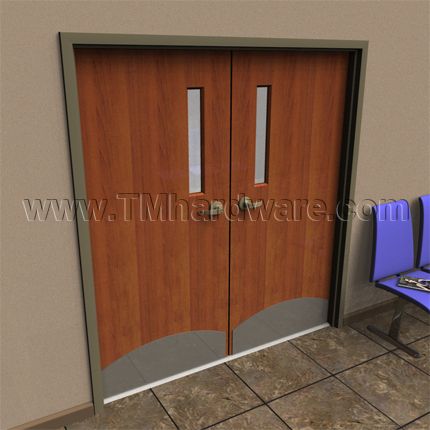

Rockwood shaped door plates are available as mop plates, kick plates, stretcher plates and armor plates. All door plates can be easily mounted with screws and are for use in high traffic areas.

Materials: 0.050" Thick Stainless Steel

Finishes: Satin Stainless Steel-US32D/630

Custom finishes available. For details and pricing please contact us or call us at 845-388-1300.

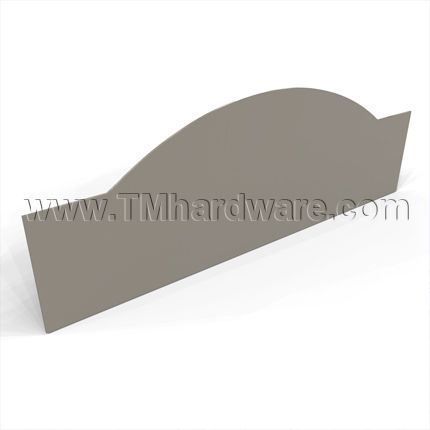

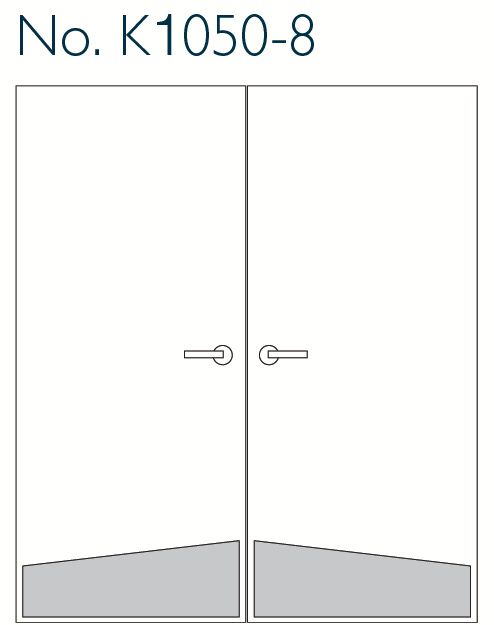

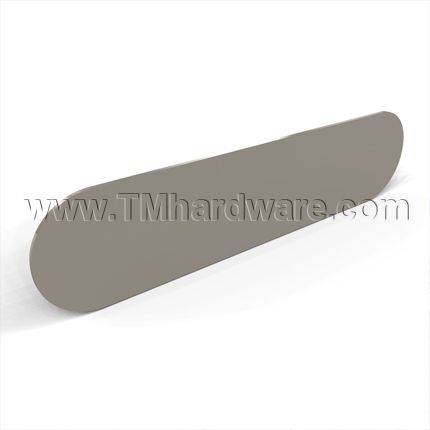

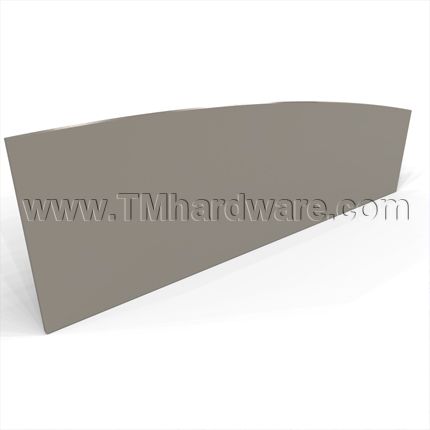

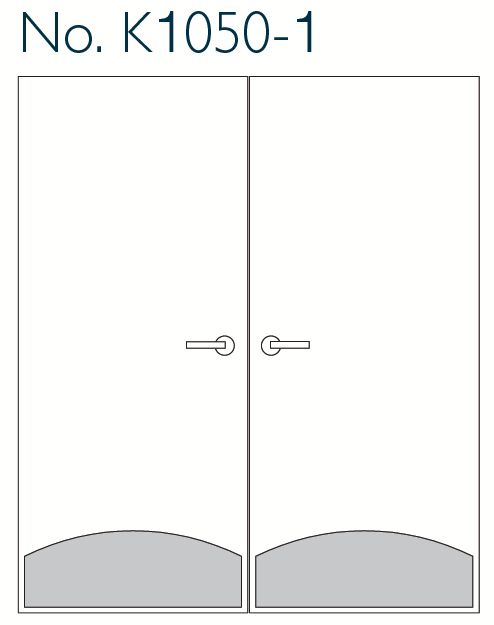

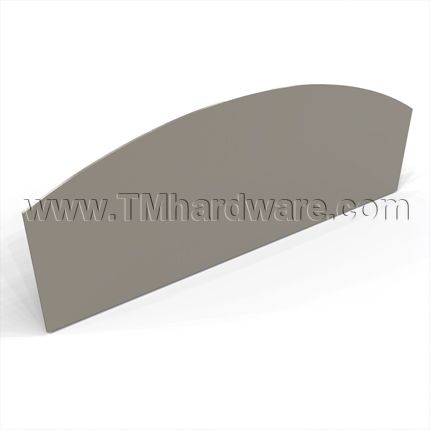

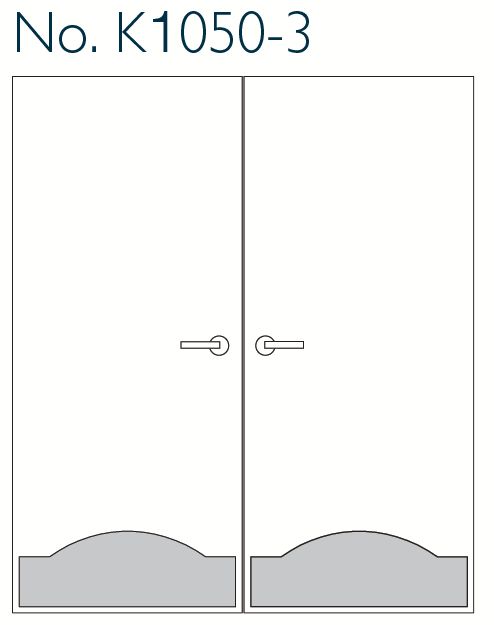

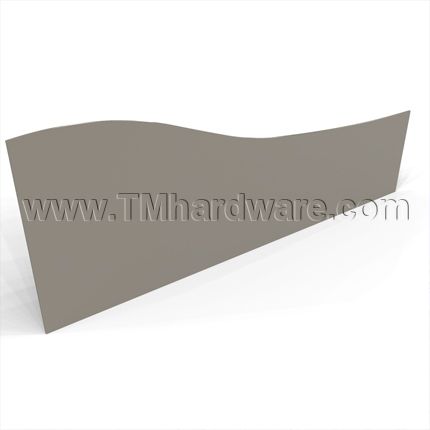

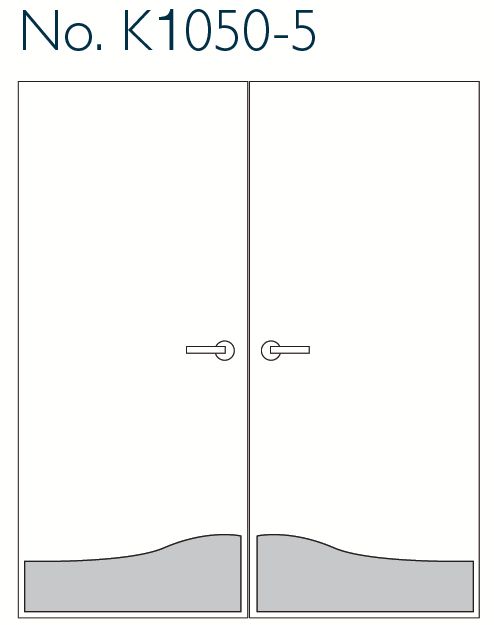

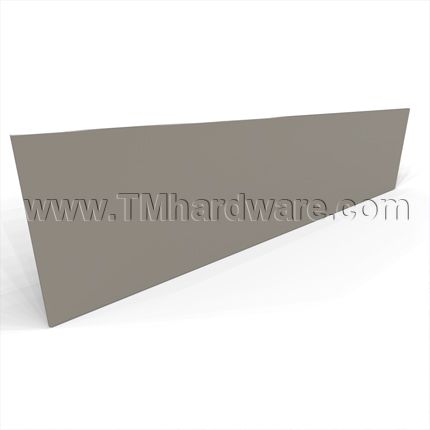

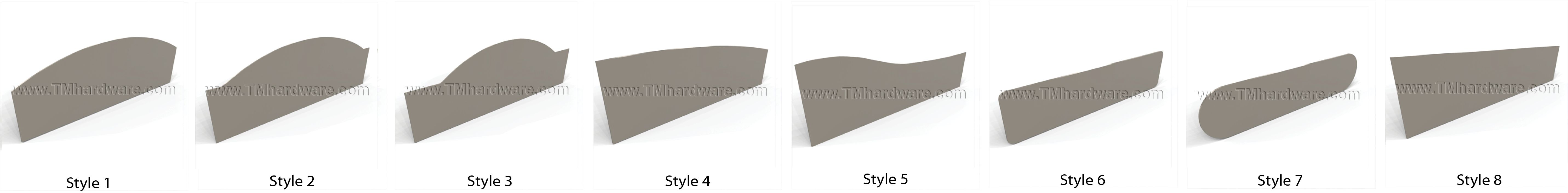

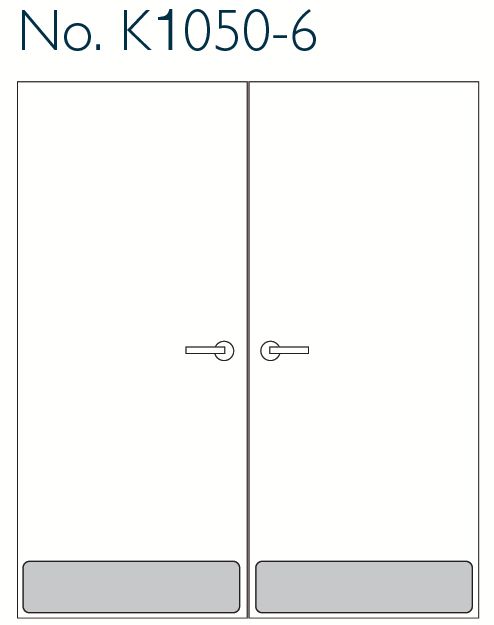

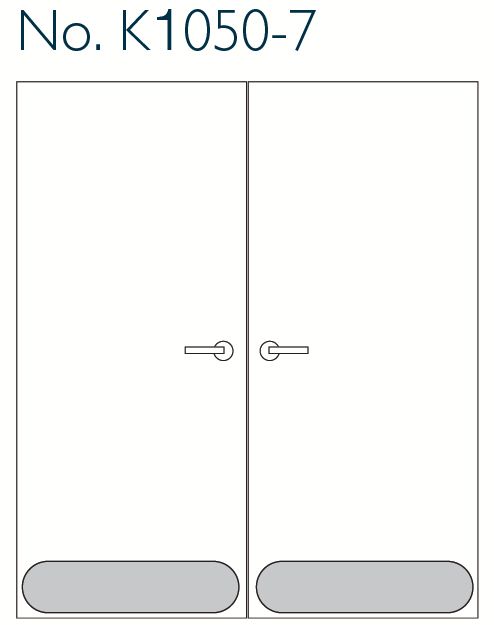

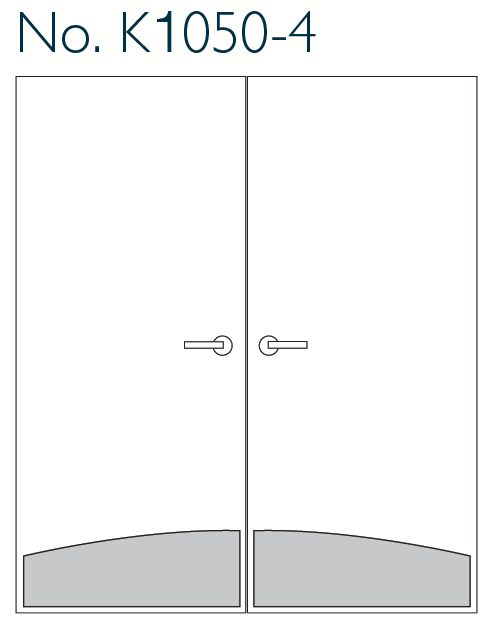

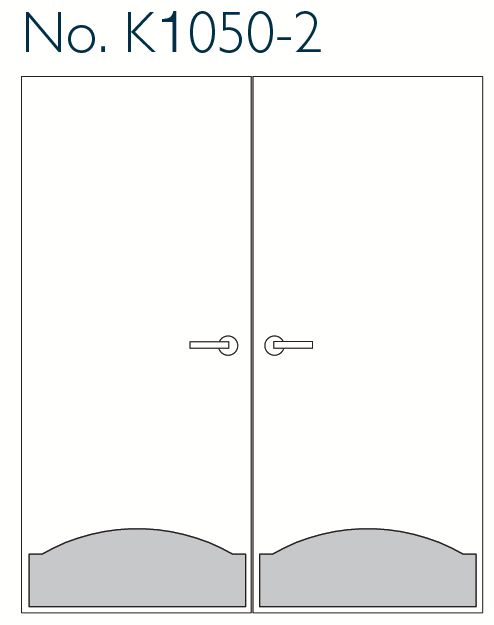

Available Shapes: 8 styles to choose from.

shaped door plates

Plate Options: See illustration below.

Mop Plate: Up to 6"H x Up to 48"W
Kick Plate: 7"-12"H x Up to 48"W
Stretcher Plate: 7"-12"H x Up to 48"W. This plate is placed in the center of the door.
Armor Plate: 13"-48"H x Up to 48"W

Stocked Sizes (H x W): The following sizes are available for purchase through our website.

4" x 34"
6" x 34"
8" x 34"
10" x 34"
12" x 34"
16" x 34"
24" x 34"
34" x 34"
42" x 34"
48" x 34"

Additional custom sizes are available for purchase through our office. Plates are available in many sizes: 4"-48" Height and 24"-48" Width. For details, pricing and/or to place an order, call us at 845-388-1300.

Calculating Plate Length: Push side of door: 2" less than door width
Calculating Plate Length: Pull side of door: 1-1/5" less than door width

Options: To order a product with more than one option, please call our office at 845-388-1300.

Countersunk Holes. Holes are drilled into the surface so that screws will be flush with surface.
Price: 4"-12" Height-$6.00
13"-48" Height-$11.00
Extra Row of screw holes and screws. Can be ordered by calling the office at 845-388-1300.
Price: $16.00 per plate.
Coutouts for locks, louvers or windows and notching for armor plate. Can be ordered by calling the office at 845-388-1300. Ask for details and pricing.
Fire Rating. Screw Mounting and UL listed for use on 90-minute label wood composite type fire doors and 3-hour label metal doors.
Price: $16.00
TORX security screws. Can be ordered by calling the office at 845-388-1300. Ask for details and pricing.
TEK self-drilling screws. Can be ordered by calling the office at 845-388-1300. Ask for details and pricing.
Any design available. Submit your drawing to sales@tmhardware.com for a custom quote. Call us at 845-388-1300 for details.

Weight: Plate size 8" x 34" is 4.0 lbs

Fasteners: #6 x 5/8" OH SMS. Included. Plates feature pre-drilled holes for standard screw mounting.

Custom fasteners available for doors with thickness other than 1.75". For details and pricing please contact us or call us at 845-388-1300.

Priced per piece.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

This product has a 1 year guarantee against defects in workmanship and materials.

Click here to view our Full Warrany Policy.

Click here to view our Standard Duty Door Plates.

- SKU
  RKK1050-1_4x34
QuickShip
No
Manufacturer
Rockwood Company
MPN
K1050-1 Thru K1050-8
Size
4"H x 34"W, 6"H x 34"W, 8"H x 34"W, 10"H x 34"W, 12"H x 34"W, 16"H x 34"W, 24"H x 34"W, 34"H x 34"W, 42"H x 34"W, 48"H x 34"W
Shape Design
Style 1, Style 2, Style 3, Style 4, Style 5, Style 6, Style 7, Style 8
Options
None, Countersunk Holes (4"-12"H), Countersunk Holes (13"-48"H), Fire Rated and Labeled

* ANSI: J101-Metal Armor Plate J102-Metal Kick Plate J103-Metal Stretch and Mop Plate

* NFPA 80 Standards-2-4.5 Protection Plates: Factory-installed protection plates shall be installed in accordance with the listing of the door. Field-installed protection plates shall be labeled and installed in accordance with their listing.

Exception: Labeling is not required where top of plate is less than 16" above the bottom of the door.
