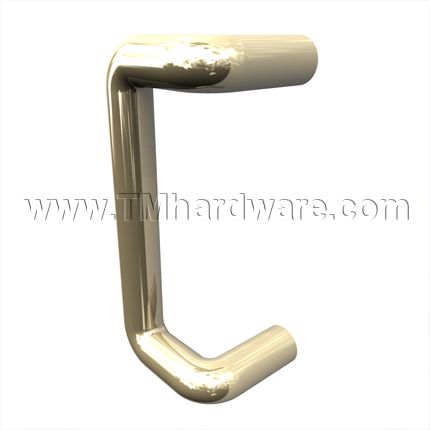

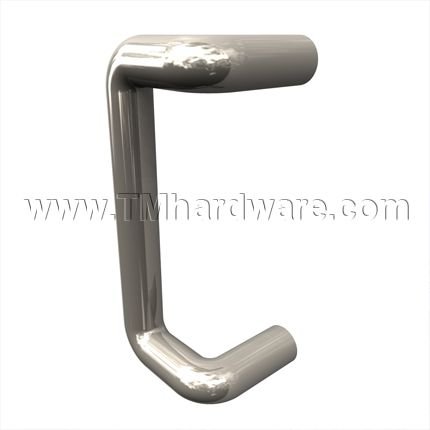

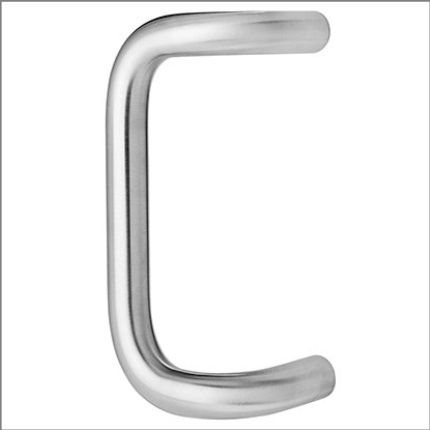

Rockwood TBF156 Tubular Door Pull Bar, 90° Offset, 1" Diameter, For ADA Openings, Light Weight - up to 18" CTC

Rockwood TBF156 light weight door pull bars are made from sturdy 0.065" thick wall tubing have a 90° offset and a 1" diameter and are ideal for use on architectural doors in high traffic areas. Many variations of material, diameter sizes and finishes are available for any door of your choice. The "T" series provides all the benefits of its solid counterpart, is 25% lighter and lower priced, yet does not compromise on its quality. This series is highly recommended for ADA openings. Many variations of material, sizes and finishes are available for any door of your choice. For details and options, see below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      RKTBF156_US32D
    • Market price:$99.00
      • save 10%
    • Starting price: Price: $89.10 per item


    Rockwood's TBF156 offset tubular pulls are made from sturdy 0.065" thick wall tubing. Solid brass or stainless steel inserts are brazed into the ends to provide a solid area for our guaranteed mounting systems.

    Benefits of the "T" Series:

    1. Tubular pulls weigh 25% less than thir solid counterparts.
    2. Light weight minimizes risk of damages in shipping and handling.
    3. The cost of tubular door pulls represents a significant saving over the equivalent solid model.

    ​Considering all the benefits, the T series offer an improved value without any quality sacrifice.

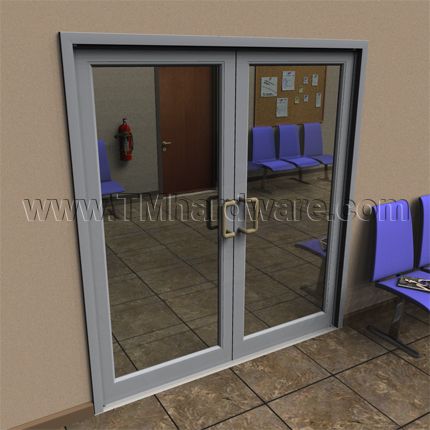

    This series is highly recommended for ADA openings. These 90° offset door pull bars are great for all standard doors, especially those in high traffic areas.

    Materials: Brass, Bronze, Stainless Steel

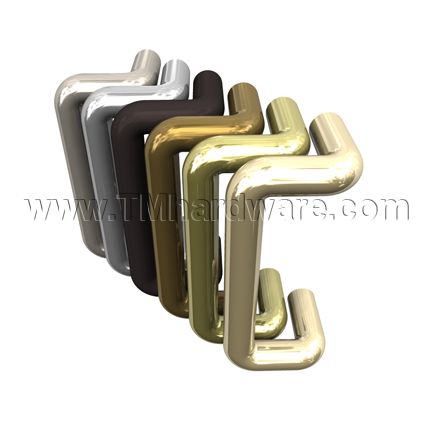

    Finishes: Polished Brass; Satin Brass; Satin Bronze; Satin Oil Rubbed Bronze; Dark Oxidized Satin Bronze, Equivalent; Stainless Steel, Polished; Stainless Steel, Satin; Satin Microshield Coated (All finishes comply with BHMA codes. See Product Data for compliance details.)

    A Note on Finishes: Dark Oxidized Satin Bronze, equivalent-This new finish provides the richness and warmth of the 10B/Satin Bronze Oiled "living" finish, but maintains its original color and appearance and will not fade or wear over time. Stainless Steel, Polished/US32-Enhanced corrosion resistance of stainless steel. 316 Alloy-Highly recommended for use if environment/job site has road salt, marine salt air, industrial/urban pollution. Microshield Coated-The ideal finish for anywhere there is a concern to control bacteria growth for demanding standards of cleanliness such as, hospitals, public restrooms or laboratories.

    Custom finishes available. For details and pricing please contact us or call us at 845-388-1300.

    Options: Back to back mounting in pairs, Type 18. For details and pricing, see options tab.

    Sizes: 5 sizes available

      Product #   Diameter   CTC   Overall Size   Projection   Clearance   Offset   Weight
      TBF156   1"   8"   9"   3.5"   2.5"   4"   1.3 lbs
      TBF157A   1"   9"   10"   3.5"   2.5"   4"   1.4 lbs
      TBF157   1"   10"   11"   3.5"   2.5"   4"   1.4 lbs
      TBF158   1"   12"   13"   3.5"   2.5"   4"   1.5 lbs
      TBF159   1"   18"   19"   3.5"   2.5"   4"   2.0 lbs

    Fastener: 1/4-20 x 2.25" thru bolt and finish washer (standard 1.75" door). Included.

    Custom fasteners available for doors other than 1.75" thick. For details and pricing please contact us or call us at 845-388-1300.

    Priced per piece.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in workmanship and materials.

    Click here to view our Full Warranty Policy.

    Click here to view Rockwood's BF156 Offset Pull Bars With a Heavier Weight.

      • SKU
        RKTBF156_US32D
    • QuickShip
      No
    • Manufacturer
      Rockwood Company
    • MPN
      TBF156, TBF157A, TBF157, TBF158, TBF159
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Oil Rubbed Bronze, Equiv. (10BE), Polished Stainless Steel (US32), Satin Stainless Steel (US32D), Microshield Stainless Steel, Satin





     MOUNTING TYPES


    Back to Back




    Concealed (Single)

    Aside from the standard mounting option (with the included fasteners), there are another 5 mounting types available for this specific door pull:


    1. Type 16-Back to Back (pair)
    add $12.60
    2. Type 18-Back to Back (pair)
    add $18.90
    3. Type 17-Concealed
    add $12.60
    4. Type 17R-Concealed
    add $14.70








    Note: This option is available for order through our office only. To order, please contact us or call us at 845-388-1300.

    To view more details on these mounting types, see Mounting Types for Offset Door Pulls.





    All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard:

    • Polished Brass-US3/605
    • Satin Brass-US4/606
    • Satin Bronze-US10/612
    • Satin Oil Rubbed Bronze-US10B/613
    • Dark Oxidized Satin Bronze, Equivalent-US10BE/613E
    • Polished Stainless Steel-US32/629
    • Satin Stainless Steel-US32D/630
    • Satin Microshield Coated-US32DMS

    ​Door Pull Bar complies with ANSI A156.6: J402
