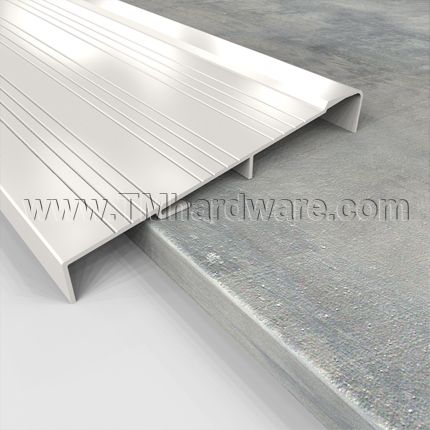

Pemko #161M Transitional Threshold- Sill, 7.75" (W) Aluminum, Extra Wide, .8125" Offset

Aluminum Mill Finish
Pemko Manufacturing

This item has been discontinued - For similar items see our Transitional Threshold

See tabs below for additional information
    • SKU
      PK161A_M
    Call for price!
    845-388-1300

    Transitional / Offset threshold is specifically designed for a Pre-hung Door Application, however it can be used for standard doors as well. Threshold protects the sill beneath it from wear and helps maintain the doorway’s aesthetic appearance.

    Width: 7.75" (7-3/4")

    Offset Height: .8125" (13/16")

    Upper Saddle Height: 1.125" (1-1/8")

    Door Clearance Requirement: 1.125" (1-1/8")

    Length: Custom cut to size up to 104" (Larger sizes can be purchased through our office)

    Finish: Mill aluminum

    Drilling and Notching: Standard orders come undrilled. Custom drilling and notching is available through our office (see additional tab for details)

    Compliance Details: Fire Rated, UL Listed

    Installation: Installation Guide and screws provided. Screws are colored to coordinate with threshold color.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    For added height, see our Aluminum Riser for Pemko Threshold-Sills, .438 “H, 1.125” W

      • SKU
        PK161A_M
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      161_M
    • Dimensions
      • Offset Height
        .8125" Height
      • Overall Width
        7.75" width
      • Threshold Length
        Custom Cut to Size
      • Required Door Clearance
        1.125" Height
    • Product Design
      • Flat Saddle Design
        Fluted (Grooved) Design
      • Threshold Type
        For Pre-Hung Doors
      • Material
        Aluminum
    • Installation
      • Drilling Holes
        Drilling holes provided
      • Fasteners
        Fasteners Provided
    • Finishes
      • Finish
        Mill Finish Aluminum (US27)
    • Compliance Details
      • Warranty
        3 Year Limited Warranty

    Click to Print

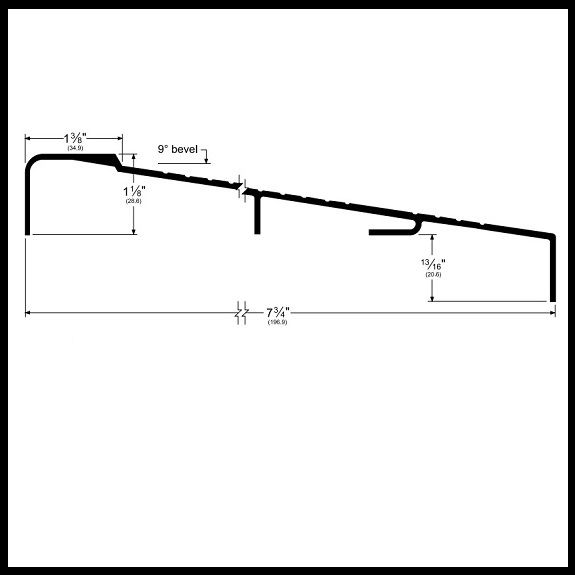

    P161_M Product Specs:

    Threshold- Sill, Aluminum, .8125 Offset

    Click to Print

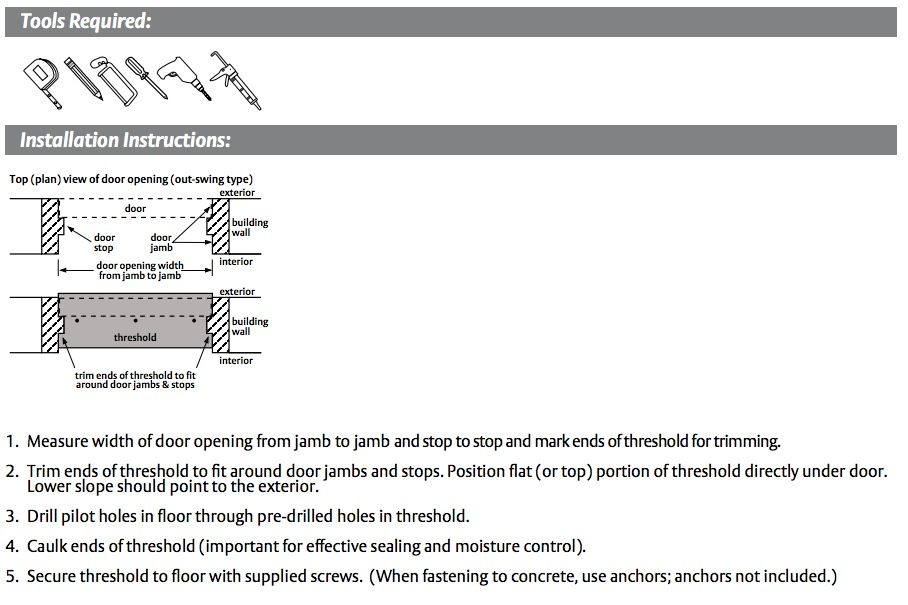

    P161_M Installation Guide:

    Click to View Ratings Explained



    Finishes Comply with the Following ANSI / BHMA Codes:
    • Aluminum Mill Finish - US27 / 719
    • Dark Bronze Anodized Aluminum - US10B / 710
    • Bright Dip Gold Anodized Aluminum - US3 / 707
    • Gold Anodized Aluminum - US4 / 688
    • Satin Nickel Anodized Aluminum - US15 / 619
    • Painted White Aluminum - 714

    To order any of the customized drilling and notching options detailed below, please contact us or call us at (845) 388-1300.

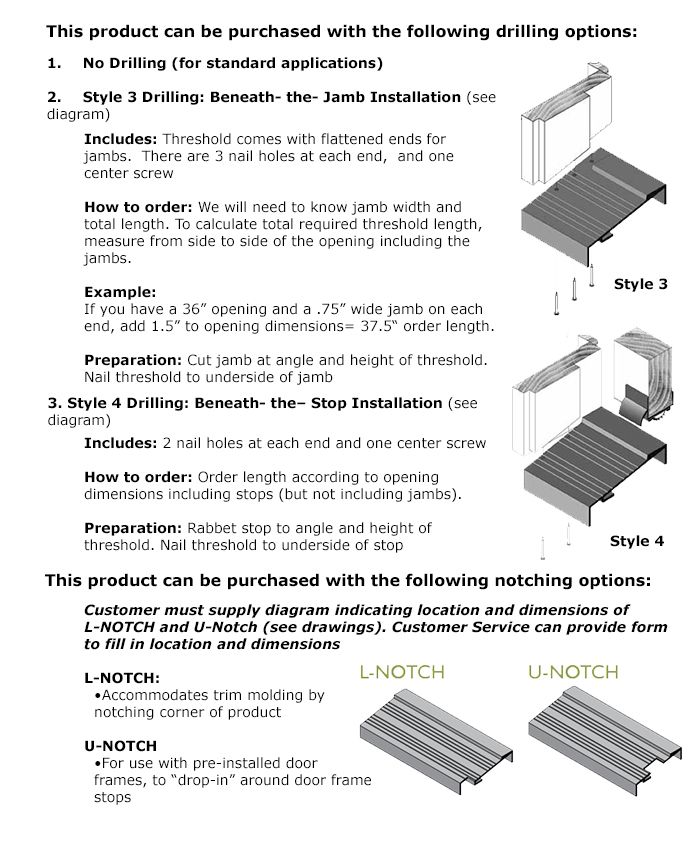

    Fabrication Options for Transitional Threshold- Transitional Threshold- Sill for Pre-hung, .75” Offset
