Vision Lite VSIG, Slimline Low Profile Beveled Frame, 1" - 3" Doors, Glass up to 1", up to 5' x 8.5'

Vision Lite VSIG, Slimline Low Profile Beveled Frame, 1" - 3" Doors, Glass up to 1", up to 5' x 8.5'
Activar Air Louvers

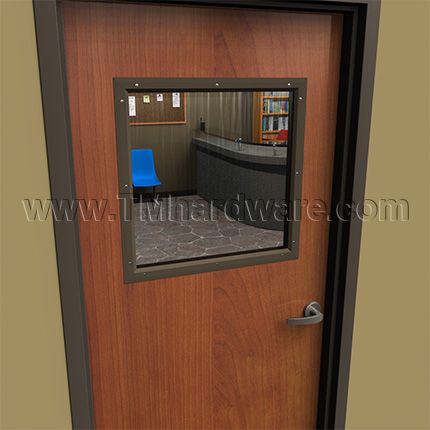

Activar VSIG is a low profile beveled Vision Lite frame for Fire Rate Doors. This Vision frame is compatiable for 5/16"-1" glass (glass not included). Available in many different finishes and sizes.

PRICED PER PIECE- See product details and specs in tabs below

See tabs below for additional information
    • SKU
      ACVSIG 0627B
    • Market price:$140.00
      • save 20%
    • Starting price: Price: $112.00 per item


    This Activar Low Profile Beveled VSIG vision lite kit is free of fasteners on the corridor side of door. Vision Lite frame is for 5/16"-1" glazing, for Fire Rated Doors.

    Material: 20 gauge CRS frame

    Dimensions: Available in common sizes and glazing thickness through our site. Additional sizing and specific glazing thickness can be purchased through our office.

    • Available widths: 5" - 36"
    • Available lengths: 4" - 72"

    How to Order: Orders size is the Door Cut-out Dimensions. See Product Specs for details.

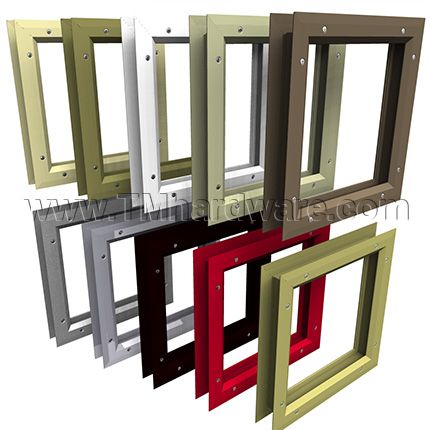

    Available Finishes: Available in all standard Powder Coat Finishes, see our Lites and Louvers Standard Finishes

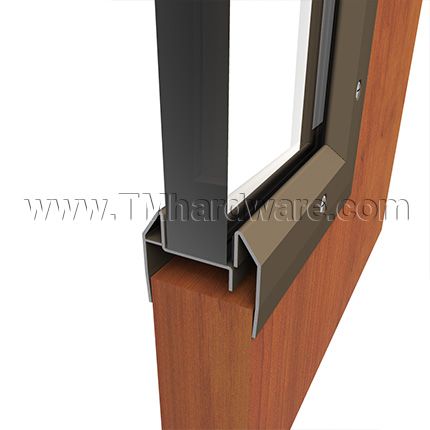

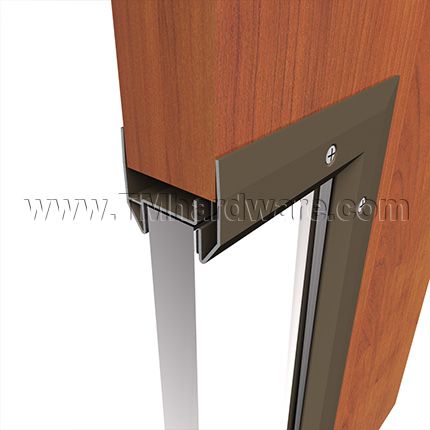

    Construction: 1-1/4” trim with radius corners, mitered and welded. Continuous glass retainer, countersunk mounting holes in the bevel on non-corridor side.

    Door Type: UL Listing: 1” to 3”,  WHI Listing: For 1-3/4” door

    Fasteners Included: #8 x 1” flathead phillips SMS to match finish

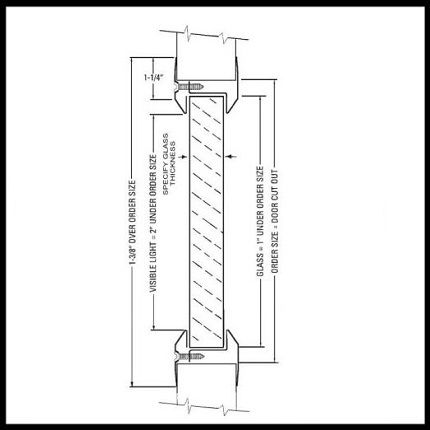

    Glass Compatibility: Use fire rated glazing with Warnock Hersey (WHI) or UL classification markings for fire rated applications. Visible light is 2” under rough opening size. Glass is 1” under order size. Must specify glass thickness above. If glazing is being provided by a supplier other than Air Louvers, coordinate with the supplier to ensure compatibility with IG kits.

    Fire-Rated Air Louvers Glazing to fit this vision frame: KFRL, KFRFU, CONTRA45, CONTRA 60, ARMRSHIELD, LGSHIELD

    Please note, glazing material is not supplied with this frame, and can be purchased separately through our website.

    Compliance Details: When installed in properly rated and approved door, ratings up to 3 hours can be achieved for VSIG, depending on the glazing used. See glazing ratings for max exposed area. Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure

    Additional Options: Custom options are available, please contact us for details and pricing.

    • Optional Materials
      • 20 Gauge Stainless Steel #4 Finish
      • Galvanized Sheet for Exterior Applications
      • Electro Zinc Plating for Maximum Corrosion Resistance
      • Wood Veneer Finish (up to 90 minutes), see our Wood Selection for Woodlite Vision Kit
    • Torx Fasteners
    • Add Welded Mullions to Your Vision Lite for Additional Security or the French Door Look. See our Mullions for Visions Lite Frames
    • Specialty PAK - Create Your Own Combination of any of our Glazing Selections with Any Vision Lite Select Glazing Tape for UL10B Doors, and We Will Apply the Tape and Securely Package it for You
    • Miniblind in Vision Lite - Blinds are sealed between the two lites of glass, Model VLFEZMB

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 5 year gurantee against defects in materials and workmanship.
    Click here to view our Full Warranty Policy.

    Click to view our Vision Lite VSL, Slimline Frame for Glass Up to 1/4"

      • SKU
        ACVSIG 0627B
    • QuickShip
      No
    • Manufacturer
      Activar Air Louvers
    • MPN
      VSIG
    • Size (W" x H")
      6" W x 27" H, 7" W x 22" H, 8" W x 32" H, 12" W x 12" H, 24" W x 24" H, 24" W x 30" H, 24" W x 32" H, 24" W x 36" H, 24" W x 56" H, 24" W x 60" H, 24" W x 64" H
    • Glazing Thickness
      1" Thick, 1/2" Thick, 3/4" Thick, 5/16" Thick, 9/16" Thick
    • Door Thickness
      1 3/4" Thick, 1 3/8" Thick, 2" Thick, 2 3/4" Thick, 2 3/8" Thick, 2 1/2" Thick
    • Finishes
      • Finish
        Mineral Bronze Powder Coat, Gray Powder Coat, AMS Beige Powder Coat, Red Powder Coat, Sand Powder Coat, SC Beige Powder Coat, White Powder Coat, Silver Powder Coat, Black Powder Coat, Flat Black (US19), Gray Hammertone

    When installed in properly rated and approved door, ratings up to 3 hours can be achieved for VSIG, depending on the glazing used. See glazing ratings for max exposed area. Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure.

    Ratings for VSIG Vision Lite Frame

    Quickship Stock Items - The following options are available for Quick Shipping. Please call to confirm the shipping time..
       Finish: Mineral Bronze, Glass Thickness: 1", Door Thickness: 1-3/4", Sizes:
    • 12" x 12"
    • 6" x 27"
    • 7" x 22"
    • 24" x 24"
    • 24" x 30"
    • 24" x 32"
    • 24" x 36"
    • 24" x 60"
    • 24" x 64"
       Finish: Gray, Glass Thickness: 1", Door Thickness: 1-3/4", Sizes:
    • 12" x 12"
    • 6" x 27"
    • 7" x 22"
    • 8" x 32"
    • 24" x 24"
    • 24" x 30"
    • 24" x 56"
