Wooster Abrasive Cast Safety Tread W_120, Rounded Edge for Nosings on Steel Grating Treads

Wooster Abrasive Cast Safety Tread W_120, Rounded Edge for Nosings on Steel Grating Treads
Wooster Products, Inc

Wooster 120 Abrasive Cast Safety Tread has many uses in new construction and existing building projects. The cross-hatched tread is rounded on one edge and functions as nosings on steel grating treads and for special conditions, usually superimposed.

Choose from Alumogrit (Cast Aluminum) and Ferrogrit (Cast Iron) and specify custom width and length in dropdown below.

Available in 3", 4", and 6" Widths

PRICED PER FOOT

See tabs below for additional information
    • SKU
      WSAG120.3
    Call for price!
    845-388-1300

    Wooster 120 Safety Treads Product Specifications:

    • Cross-hatched tread is rounded on one edge
    • For steel grating treads and for special conditions
    • Anti-Slip: From any direction wet or dry, cuts risk of slips or falls.
    • ALUMOGRIT Cast Aluminum or FERROGRIT Cast Iron
    • For New Construction or Existing Buildings
    • ​Resistance to Unusually Corrosive Environments (Aluminum Version)

    Comparison Chart:

    Alumogrit and Ferrogrit comparison chart

    Anchor Options:

    Standard Anchoring Options: 1/4" (6.35 mm) F.H.M. plated screws and nuts with steel wing anchors for fresh concrete are standard fasteners for nosings. Countersunk holes or concealed integral anchors are also available.

    Please see Product Data and Installation Tabs for additional information.

    The following anchors are furnished upon request. Choose from drop-down box above.

    • Wing Type Anchor
    • Concealed Integral Anchor
    • Drilled Tapcon Screws
    • Screw and Shields
    • Machine Screws

    Compliance:

    • MEETS A.D.A. REQUIREMENTS

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 2 year warranty against defects in material and workmanship.
    Click here to view our     Full Warranty Policy.

    Interseted in a Cast Aluminum Safety Nosing for the step edge? Please See our  Wooster Alumogrit W101 Abrasive Cast No-Slip Nosing for Concrete Stairs

      • SKU
        WSAG120.3
    • QuickShip
      No
    • Manufacturer
      Wooster Products, Inc
    • MPN
      WAG120.3, WAG120.4, WAG120.6, WFG120.3, WFG120.4, WFG120.6
    • Cast Metal
      Alumogrit (Cast Aluminum), Ferrogrit (Cast Iron)
    • Holes/Anchors
      Wing Type Anchor, Concealed Integral Anchor, Drilled Tapcon Screws, Screw and Shields, Machine Screws
    • Tread Width
      3.00" Width, 4.00" Width, 6.00" Width
    • Tread Length
      12", 12.25", 12.5", 12.75", 13", 13.25", 13.5", 13.75", 14", 14.25", 14.5", 14.75", 15", 15.25", 15.5", 15.75", 16", 16.25", 16.5", 16.75", 17", 17.25", 17.5", 17.75", 18", 18.25", 18.5", 18.75", 19", 19.25", 19.5", 19.75", 20", 20.25", 20.5", 20.75", 21", 21.25", 21.5", 21.75", 22", 22.25", 22.5", 22.75", 23", 23.25", 23.5", 23.75", 24", 24.25", 24.5", 24.75", 25", 25.25", 25.5", 25.75", 26", 26.25", 26.5", 26.75", 27", 27.25", 27.5", 27.75", 28", 28.25", 28.5", 28.75", 29", 29.25", 29.5", 29.75", 30", 30.25", 30.5", 30.75", 31", 31.25", 31.5", 31.75", 32", 32.25", 32.5", 32.75", 33", 33.25", 33.5", 33.75", 34", 34.25", 34.5", 34.75", 35", 35.25", 35.5", 35.75", 36", 36.25", 36.5", 36.75", 37", 37.25", 37.5", 37.75", 38", 38.25", 38.5", 38.75", 39", 39.25", 39.5", 39.75", 40", 40.25", 40.5", 40.75", 41", 41.25", 41.5", 41.75", 42", 42.25", 42.5", 42.75", 43", 43.25", 43.5", 43.75", 44", 44.25", 44.5", 44.75", 45", 45.25", 45.5", 45.75", 46", 46.25", 46.5", 46.75", 47", 47.25", 47.5", 47.75", 48", 48.25", 48.5", 48.75", 49", 49.25", 49.5", 49.75", 50", 50.25", 50.5", 50.75", 51", 51.25", 51.5", 51.75", 52", 52.25", 52.5", 52.75", 53", 53.25", 53.5", 53.75", 54", 54.25", 54.5", 54.75", 55", 55.25", 55.5", 55.75", 56", 56.25", 56.5", 56.75", 57", 57.25", 57.5", 57.75", 58", 58.25", 58.5", 58.75", 59", 59.25", 59.5", 59.75", 60", 60.25", 60.5", 60.75", 61", 61.25", 61.5", 61.75", 62", 62.25", 62.5", 62.75", 63", 63.25", 63.5", 63.75", 64", 64.25", 64.5", 64.75", 65", 65.25", 65.5", 65.75", 66", 66.25", 66.5", 66.75", 67", 67.25", 67.5", 67.75", 68", 68.25", 68.5", 68.75", 69", 69.25", 69.5", 69.75", 70", 70.25", 70.5", 70.75", 71", 71.25", 71.5", 71.75", 72", 72.25", 72.5", 72.75", 73", 73.25", 73.5", 73.75", 74", 74.25", 74.5", 74.75", 75", 75.25", 75.5", 75.75", 76", 76.25", 76.5", 76.75", 77", 77.25", 77.5", 77.75", 78", 78.25", 78.5", 78.75", 79", 79.25", 79.5", 79.75", 80", 80.25", 80.5", 80.75", 81", 81.25", 81.5", 81.75", 82", 82.25", 82.5", 82.75", 83", 83.25", 83.5", 83.75", 84", 84.25", 84.5", 84.75", 85", 85.25", 85.5", 85.75", 86", 86.25", 86.5", 86.75", 87", 87.25", 87.5", 87.75", 88", 88.25", 88.5", 88.75", 89", 89.25", 89.5", 89.75", 90", 90.25", 90.5", 90.75", 91", 91.25", 91.5", 91.75", 92", 92.25", 92.5", 92.75", 93", 93.25", 93.5", 93.75", 94", 94.25", 94.5", 94.75", 95", 95.25", 95.5", 95.75", 96", 96.25", 96.5", 96.75", 97", 97.25", 97.5", 97.75", 98", 98.25", 98.5", 98.75", 99", 99.25", 99.5", 99.75", 100", 100.25", 100.5", 100.75", 101", 101.25", 101.5", 101.75", 102", 102.25", 102.5", 102.75", 103", 103.25", 103.5", 103.75", 104"



    Product Specs

    Click to Print Product Specs

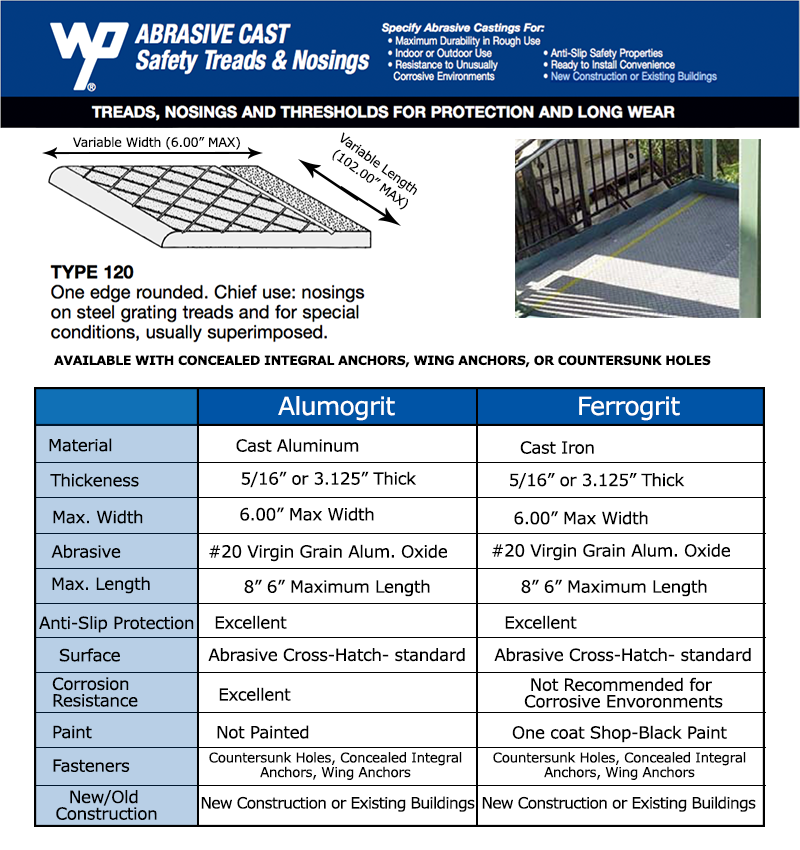

    Wooster W120 Specs for Abrasive cast Treads with Rounded edge

    Compliance Details
    • MEETS A.D.A. REQUIREMENTS





    Installation Guide

    Click to Print Installation Guide.

    Wooster W120 Abrasive Cast Safety Treads for existing construction installation guide
