Wooster W_116 Abrasive Cast Safety Nosing, 1.00" Deep Lip

Wooster W_116 Abrasive Cast Safety Nosing, 1.00" Deep Lip
Wooster Products, Inc

Wooster 116 Abrasive Cast Safety Nosing serves as as full width nosings for concrete stairs where a deeper lip is desirable. Nosing can be superimposed on existing steps.

Choose from Alumogrit (Cast Aluminum) and Ferrogrit (Cast Iron) and specify custom width and length in dropdown below.

Countersunk holes and anchors can be chosen as well.

PRICED PER FOOT

See tabs below for additional information
    • SKU
      WSAG116.3
    Call for price!
    845-388-1300

    Wooster 116 Safety Tread/ Nosing Product Specifications:

    • Serves as nosing with for concrete stairs or superimposed on existing steps.
    • Anti-Slip: From any direction wet or dry, cuts risk of slips or falls.
    • Chief Use: where a deeper lip is desirable
    • Available in 3.00" and 4.00" Widths
    • For full width of stair
    • ALUMOGRIT Cast Aluminum or FERROGRIT Cast Iron
    • For New Construction or Existing Buildings
    • ​Resistance to Unusually Corrosive Environments (Aluminum Version)



    ​Comparison Chart:

    Comparison Chart between Alumogrit (Cast Aluminum) and Ferrogrit (Cast Iron) cast safety nosings

    Anchor Options:

    Standard Anchoring Options: 1/4" (6.35 mm) F.H.M. plated screws and nuts with steel wing anchors for fresh concrete are standard fasteners for nosings. Countersunk holes or concealed integral anchors are also available.

    Please see Product Data and Installation Tabs for additional information.

    The following anchors are furnished upon request. Choose from drop-down box above.

    • Wing Type Anchor
    • Concealed Integral Anchor
    • Drilled Tapcon Screws
    • Screw and Shields
    • Machine Screws

    Compliance:

    • MEETS A.D.A. REQUIREMENTS

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 2 year warranty against defects in material and workmanship.
    Click here to view our     Full Warranty Policy.

    Interseted in an Abrasive Cast Safety structural treads with a shorter lip? Please see our Wooster W_101SP Abrasive Cast Safety Nosing, for New and Existing Construction

      • SKU
        WSAG116.3
    • QuickShip
      No
    • Manufacturer
      Wooster Products, Inc
    • MPN
      AG116.3, AG116.4,, AG116.6, FG116.3, FG116.4, FG116.6
    • Cast Metal
      ALUMOGRIT (Cast Aluminum), FERROGRIT (Cast Iron)
    • Holes/Anchors
      Wing Type Anchor, Concealed Integral Anchor, Drilled Tapcon Screws, Screw and Shields, Machine Screws
    • Nosing Width
      3.00" Width, 4.00" Width
    • Nosing Length
      12", 12.25", 12.5", 12.75", 13", 13.25", 13.5", 13.75", 14", 14.25", 14.5", 14.75", 15", 15.25", 15.5", 15.75", 16", 16.25", 16.5", 16.75", 17", 17.25", 17.5", 17.75", 18", 18.25", 18.5", 18.75", 19", 19.25", 19.5", 19.75", 20", 20.25", 20.5", 20.75", 21", 21.25", 21.5", 21.75", 22", 22.25", 22.5", 22.75", 23", 23.25", 23.5", 23.75", 24", 24.25", 24.5", 24.75", 25", 25.25", 25.5", 25.75", 26", 26.25", 26.5", 26.75", 27", 27.25", 27.5", 27.75", 28", 28.25", 28.5", 28.75", 29", 29.25", 29.5", 29.75", 30", 30.25", 30.5", 30.75", 31", 31.25", 31.5", 31.75", 32", 32.25", 32.5", 32.75", 33", 33.25", 33.5", 33.75", 34", 34.25", 34.5", 34.75", 35", 35.25", 35.5", 35.75", 36", 36.25", 36.5", 36.75", 37", 37.25", 37.5", 37.75", 38", 38.25", 38.5", 38.75", 39", 39.25", 39.5", 39.75", 40", 40.25", 40.5", 40.75", 41", 41.25", 41.5", 41.75", 42", 42.25", 42.5", 42.75", 43", 43.25", 43.5", 43.75", 44", 44.25", 44.5", 44.75", 45", 45.25", 45.5", 45.75", 46", 46.25", 46.5", 46.75", 47", 47.25", 47.5", 47.75", 48", 48.25", 48.5", 48.75", 49", 49.25", 49.5", 49.75", 50", 50.25", 50.5", 50.75", 51", 51.25", 51.5", 51.75", 52", 52.25", 52.5", 52.75", 53", 53.25", 53.5", 53.75", 54", 54.25", 54.5", 54.75", 55", 55.25", 55.5", 55.75", 56", 56.25", 56.5", 56.75", 57", 57.25", 57.5", 57.75", 58", 58.25", 58.5", 58.75", 59", 59.25", 59.5", 59.75", 60", 60.25", 60.5", 60.75", 61", 61.25", 61.5", 61.75", 62", 62.25", 62.5", 62.75", 63", 63.25", 63.5", 63.75", 64", 64.25", 64.5", 64.75", 65", 65.25", 65.5", 65.75", 66", 66.25", 66.5", 66.75", 67", 67.25", 67.5", 67.75", 68", 68.25", 68.5", 68.75", 69", 69.25", 69.5", 69.75", 70", 70.25", 70.5", 70.75", 71", 71.25", 71.5", 71.75", 72"



    Product Specs

    Click to Print Product Specs

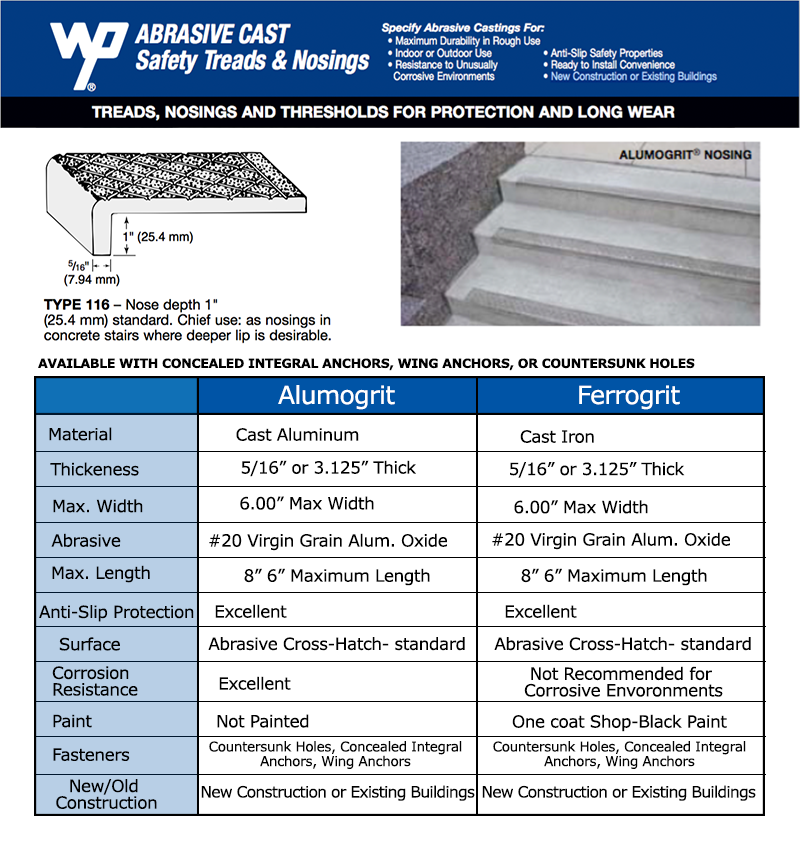

    Wooster Abrasive Cast nosing with 1.00" Lip Dimensions

    Compliance Details
    • MEETS A.D.A. REQUIREMENTS







    Installation Guide

    Click to Print Installation Guide.

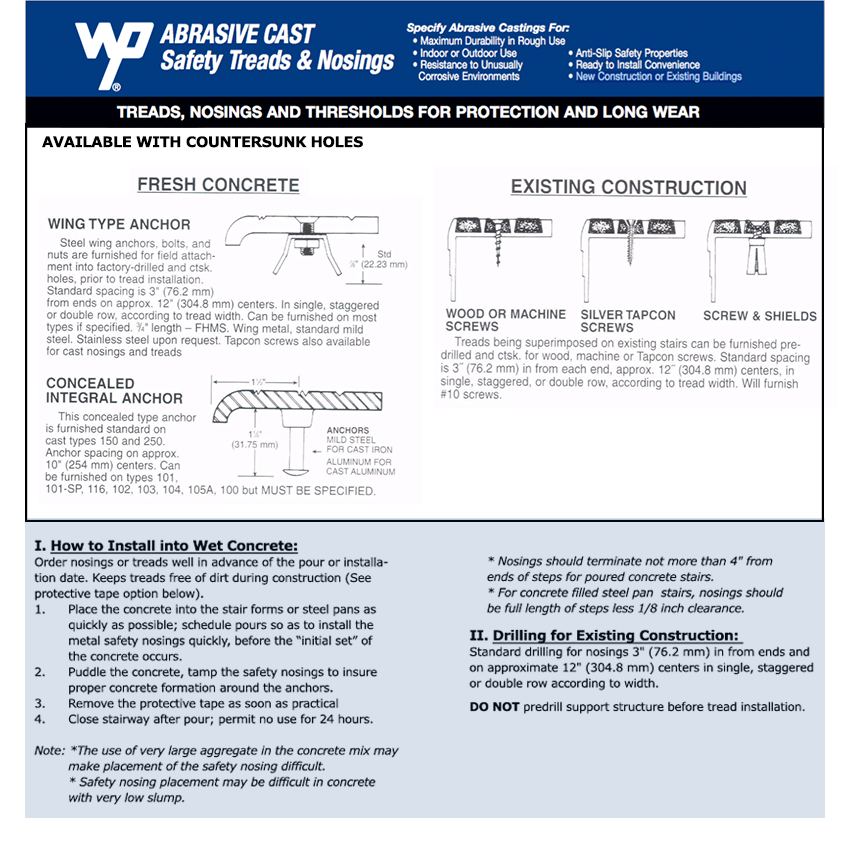

    Installation information for Wooster 116 Safety nosing with 1" Nose depth
