Accentra 4703LN Patio Lever, No Emergency Release, Grade 1 - Custom Options

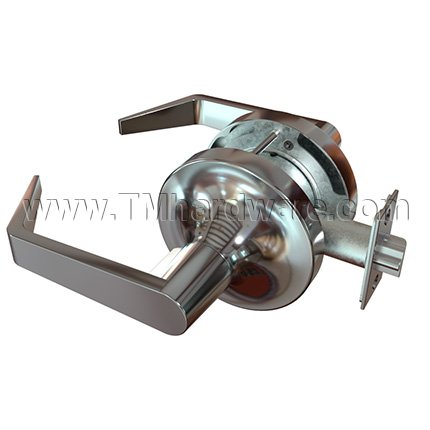

Accentra 4703LN Commercial Locks Satin Chrome (US26D) Finished
Accentra

Accentra (Formerly Yale) 4703LN Cylindrical Patio Privacy Lock for patios and bathrooms is the ideal choice for a wide variety of commercial applications that require locking without a keyway and does not have an emergency release. The 4703LN is is certified to ANSI / BHMI Grade 1 standards and is UL Fire Rated, ensuring reliability and peace of mind.

Available in selection of trims and finishes.

PRICED PER UNIT

See tabs below for additional information
    • Weight
      7 lbs
    • SKU
      YL-AU-4703LN-626-618bff0acbc596.
    • Market price:$597.38
      • save 35%
    • Starting price: Price: $388.30 per item


    Accentra 4703LN Cylindrical Patio Privacy Lock for patios and bathrooms is the ideal choice for a wide variety of commercial applications that require locking without a keyway and does not have an emergency release. The 4703LN is is certified to ANSI / BHMI Grade 1 standards and is UL Fire Rated, ensuring reliability and peace of mind.

    Click here to view the full Accentra 4700 Grade 1 Lever Lockset Catalog.

    4603LN Function - Patio Privacy Lock:

    • For exit doors with limited entry.
    • Deadlocking latchbolt.
    • Either lever operates latchbolt unless outside lever is locked by pushbutton inside.
    • Button automatically releases when inside lever is turned or door is closed.
    • Inside lever always active.

    Features:

    • Handing: Field reversible for ease of ordering and installation
    • Trims: selection of trims available, select from above
    • Finish: selection of finishes available, select above
    • ADA Compliance: for ease of accessibility

    See SPECIFICATION tab for additional information.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    Available in standard Privacy with Emergency Release, see Accentra 4702LN Privacy Lock.

      • Weight
        7 lbs
      • SKU
        YL-AU-4703LN-626-618bff0acbc596.
    • QuickShip
      No
    • Manufacturer
      Accentra
    • MPN
      AU-4703LN; MO-4703LN; PB-4703LN;
    • About this Product
      • Lever Material
        Cast Zinc
      • Rose Material
        Wrought Brass
      • Mechanism Material
        Heavy-gauge steel, die-cast, zinc-plated, chromated
      • Collection / Series
        Accentra 4700 Series
      • Lock Type
        Lever
      • Lever / Knob Style
        Augusta Lever (AU), Monroe Lever (MO), Pacific Beach Lever (PB)
    • Specifications
      • Backset
        2-3/4" Backset
      • Latch Throw
        1/2" Latch
      • Strike
        ANSI 4-7/8" x 1-1/4" x 1-1/4" Lip to Center
      • Faceplate
        Square Corners
      • Door Thickness
        1-3/4" - 2" Thick Door
      • Handing
        Reversible
      • Function
        Patio
      • Mount Type
        Cylindrical
      • Grade
        Grade 1
      • Cross Bore
        2-1/8" Cross Bore
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze, Equiv. (10BE), Polished Chrome (US26), Satin Chrome (US26D), Black Suede Powder Coat, White Suede Powder Coat, Satin Chrome Microshield®
    • Compliance Details
      • Compliance Details
        ADA Compliant, BHMA Certified, Windstorm Resistant, UL/cUL - listed for 3 hour fire doors
      • ANSI Designation
        A156.115 Door Prep, A156.2 Grade 1
      • Warranty
        5 Year Limited Warranty

    Click to Print Yale 4700 Series Product Templates

    Click to Print Yale 4700 Series Installation Guide
