Accentra 4709LN Exit Latch Lever, Grade 1 - Custom Options

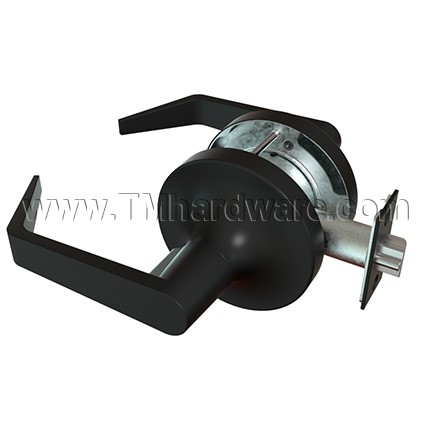

Accentra 4709LN Commercial Locks Black Suede Powder Coat Finished
Accentra

Accentra (Formerly Yale) 4709LN Cylindrical Exit Lever is the ideal choice for a wide variety of commercial applications that require latching. The 4709LN is is certified to ANSI / BHMI Grade 1 standards and is UL Fire Rated, ensuring reliability and peace of mind.

Available in selection of trims and finishes.

PRICED PER UNIT

See tabs below for additional information
    • Weight
      7 lbs
    • SKU
      YL-AU-4709LN-BSP
    • Market price:$614.54
      • save 35%
    • Starting price: Price: $399.45 per item


    Accentra 4709LN Cylindrical Exit Lever is the ideal choice for a wide variety of commercial applications that require latching. The 4709LN is is certified to ANSI / BHMI Grade 1 standards and is UL Fire Rated, ensuring reliability and peace of mind.

    Click here to view the full Accentra 4700 Grade 1 Lever Lockset Catalog.

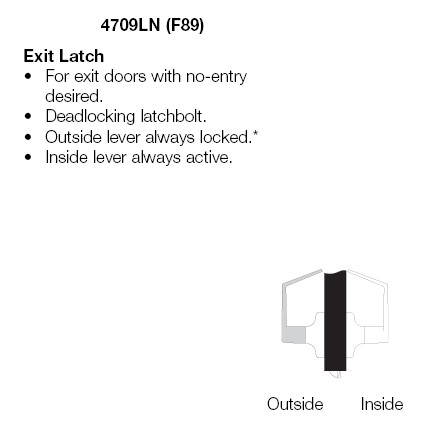

    4709LN Function - Cylindrical Exit Lever:

    • For exit doors with no-entry desired.
    • Deadlocking latchbolt.
    • Outside lever always locked.
    • Inside lever always active.

    Features:

    • Handing: Field reversible for ease of ordering and installation
    • Trims: selection of trims available, select from above
    • Finish: selection of finishes available, select above
    • ADA Compliance: for ease of accessibility

    See SPECIFICATION tab for additional information.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    Click here to view our Accentra 4708LN Classroom Lever, Grade 1 - Custom Options

      • Weight
        7 lbs
      • SKU
        YL-AU-4709LN-BSP
    • QuickShip
      No
    • Manufacturer
      Accentra
    • MPN
      AU-4709LN; MO-4709LN; PB-4709LN;
    • About this Product
      • Lever Material
        Cast Zinc
      • Rose Material
        Wrought Brass
      • Mechanism Material
        Heavy-gauge steel, die-cast, zinc-plated, chromated
      • Collection / Series
        Accentra 4700 Series
      • Lock Type
        Lever
      • Lever / Knob Style

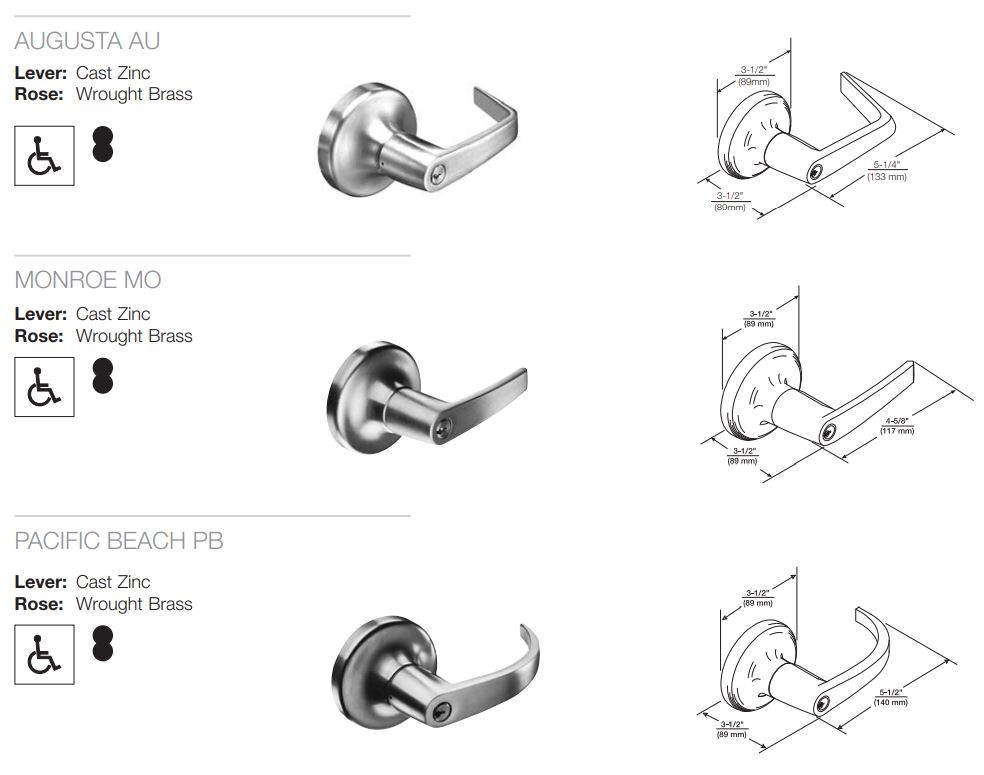

        Augusta Lever (AU), Monroe Lever (MO), Pacific Beach Lever (PB)
    • Specifications
      • Cylinder Type
        6 Pin Cylinder
      • Backset
        2-3/4" Backset
      • Latch Throw
        1/2" Latch
      • Strike
        ASA Strike, 4-7/8" x 1-1/4" x 1-1/4" Lip to Center
      • Faceplate
        Square Corners
      • Door Thickness
        1-3/4" - 2" Thick Door
      • Handing
        Reversible
      • Function
        Exit
      • Mount Type
        Cylindrical
      • Grade
        Grade 1
      • Cross Bore
        2-1/8" Cross Bore
    • Finishes
      • Finish

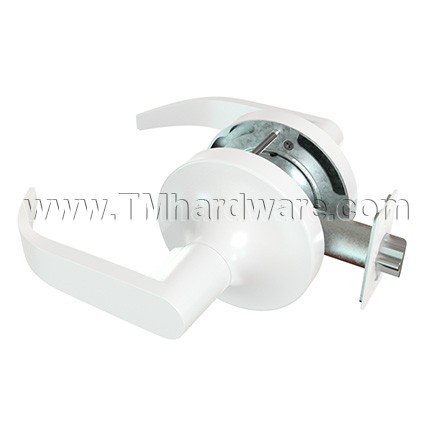

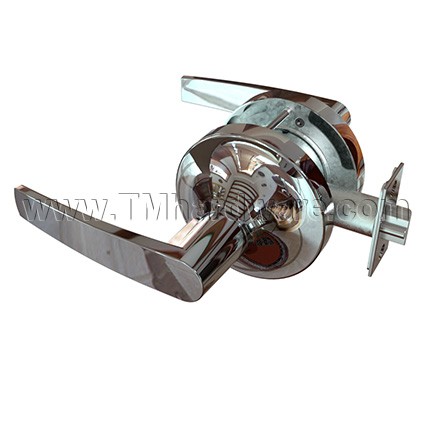

        Black Suede Powder Coat, Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze, Equiv. (10BE), Polished Chrome (US26), Satin Chrome (US26D), White Suede Powder Coat
    • Compliance Details
      • Compliance Details
        ADA Compliant, BHMA Certified, Windstorm Resistant, UL/cUL - listed for 3 hour fire doors
      • ANSI Designation
        A156.2 Grade 1, A156.115 Door Prep
      • Warranty
        5 Year Limited Warranty

    Click to Print Yale 4700 Series Product Templates

    Click to Print Yale 4700 Series Installation Guide
