Accentra 5403LN Patio Privacy Lever, Grade 1 - Custom Options

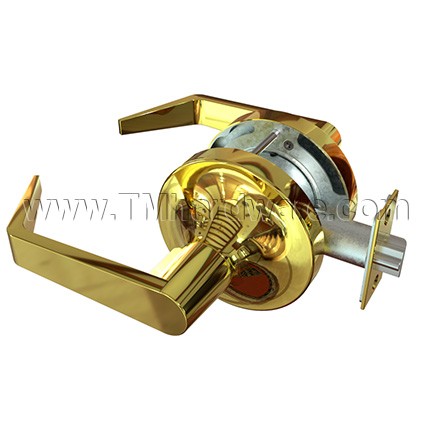

Accentra 5403LN Commercial Locks Polished Brass Finished
Accentra

Designed for industrial and commercial use, the Accentra (Formerly Yale) 5403LN Patios and Privacy Lever is an ideal choice for doors requiring latching, without locking. The 5403LN is certified to ANSI/BHMA Grade 1standards and is 3 hour UL Fire Rated.

Available in selection of trims and finishes.

PRICED PER UNIT

See tabs below for additional information
    • Weight
      9 lbs
    • SKU
      YL-AU-5403LN-605
    • Market price:$868.73
      • save 35%
    • Starting price: Price: $564.67 per item


    Designed for industrial and commercial use, the Accentra  5403LN Patios and Privacy Lever is an ideal choice for doors requiring latching, without locking. The 5403LN is certified to ANSI/BHMA Grade 1standards and is 3 hour UL Fire Rated.

    Click here to See Accentra 5400 Grade 1 Catalog.

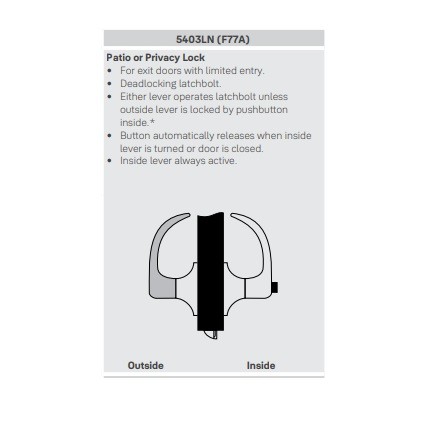

    5403Function - Patio Privacy Lock:

    • For exit doors with limited entry.
    • Deadlocking latchbolt.
    • Either lever operates latchbolt unless outside lever is locked by pushbutton inside.
    • Button automatically releases when inside lever is turned or door is closed.
    • Inside lever always active.

    Innovative Features Include:

    • Free wheeling lever mechanism prevents vandalism and reduces maintenance
    • Wear resistant chassis plates
    • Heavy duty lever return springs and thru-bolting

    Benefits Include:

    • Heavy-Duty: Rugged Grade 1 construction offers greater reliability and resists wear-and-tear
    • Secure: Innovative features protect against damage and vandalism
    • Versatile: Range of functions and options offer an ideal solution for a variety of commercial applications
    • Easy installation: Adjustable rose allows for easy adjustment on different door thicknesses
    • Strong & Reliable: ANSI/BHMA Grade 1 certification for long-life and durability

    Specifications:

    • Backset: 2-3/4" Standard
    • Door Thickness: Adjustable for doors 1-3/4" - 2"
    • Handing: Non Handed, Field Reversible
    • Latchbolt: 1/2" Throw
    • Strike: ANSI Strike 4-7/8" x 1-1/4" x 1-1/4" lip to center

    See SPECIFICATION tab for additional information.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 7 year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    For a more economical options, see our Accentra 5403LN Grade 1 Patio or Privacy Lever

      • Weight
        9 lbs
      • SKU
        YL-AU-5403LN-605
    • QuickShip
      No
    • Manufacturer
      Accentra
    • MPN
      AU-5403LN; MO-5403LN; PB-5403LN;
    • About this Product
      • Lever Material
        Cast Zinc
      • Rose Material
        Wrought Brass
      • Mechanism Material
        Heavy-gauge steel, zinc plated, dichromated
      • Collection / Series
        Accentra 5400 Series
      • Lock Type
        Lever
      • Lever / Knob Style

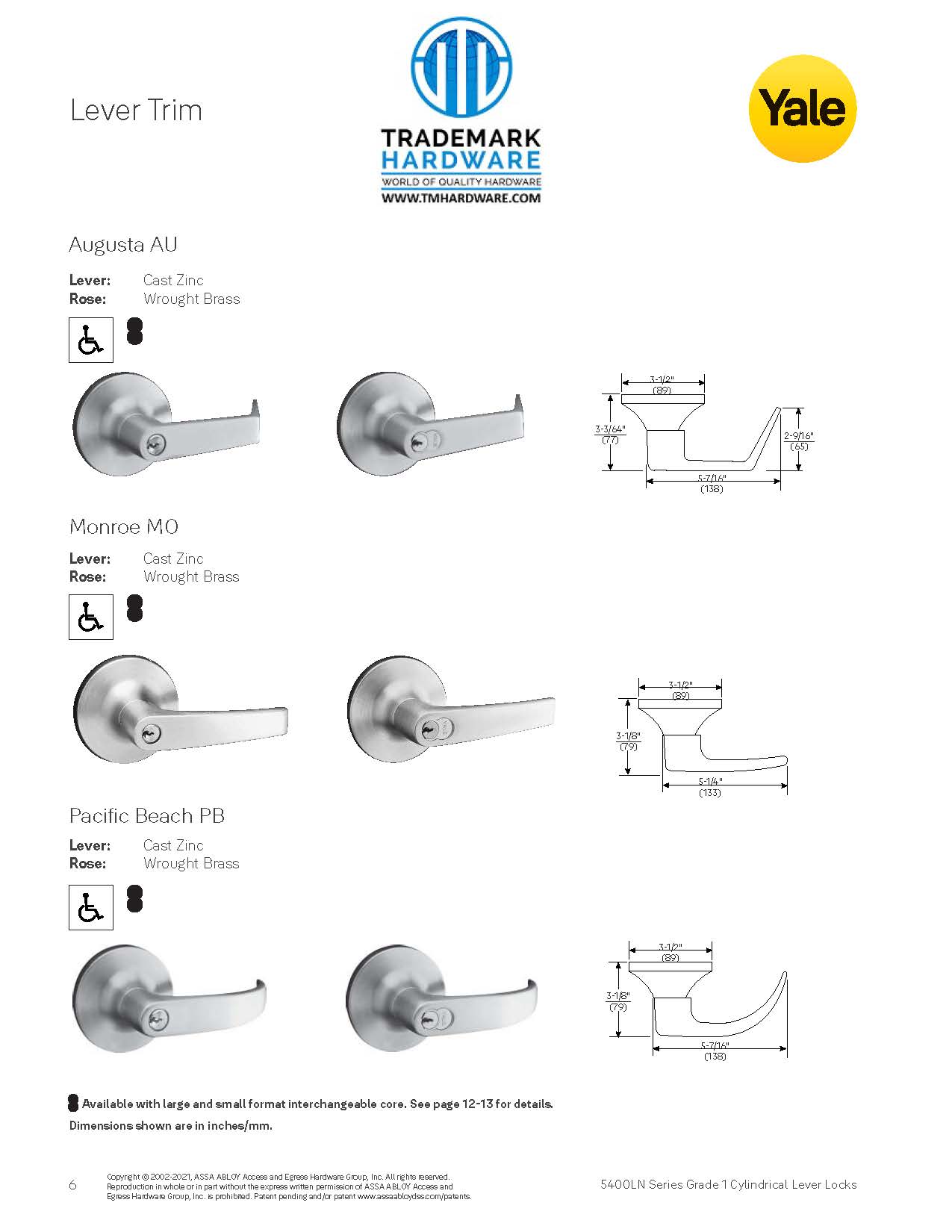

        Augusta Lever (AU), Monroe Lever (MO), Pacific Beach Lever (PB)
    • Specifications
      • Backset
        2-3/4" Backset
      • Latch Throw
        1/2" Latch
      • Strike
        ASA Strike, 4-7/8" x 1-1/4" x 1-1/4" Lip to Center
      • Faceplate
        Square Corners
      • Bore Hole
        2-1/8"
      • Door Thickness
        1-3/4" - 2-1/4" Thick Door
      • Handing
        Reversible
      • Function
        Patio Privacy
      • Mount Type
        Cylindrical
      • Grade
        Grade 1
      • Cross Bore
        2-1/8" Cross Bore
      • Locking Mechanism
        Push Button
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze, Equiv. (10BE), Satin Nickel (US15), Polished Chrome (US26), Satin Chrome (US26D), Black Painted (693), Black Suede Powder Coat, White Suede Powder Coat
    • Compliance Details
      • Compliance Details
        ADA Compliant, BHMA Certified, Windstorm Resistant, UL/cUL - listed for 3 hour fire doors
      • ANSI Designation
        A156.2 Grade 1, A156.115 Door Prep
      • Warranty
        7 Year Warranty

    Click to Print Yale 5400 Series Installation Guide
