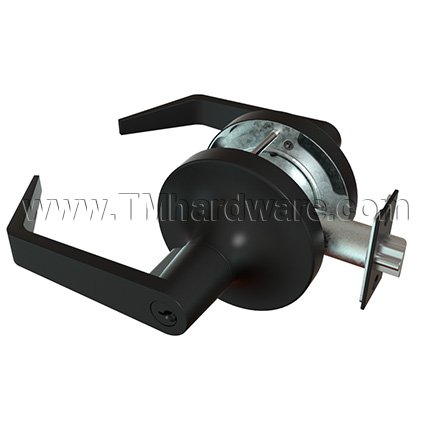

Accentra 5407LN Entry lever, Carolina lever, Grade 1 - Custom Options

Designed for industrial and commercial use, the Accentra 5407LN Cylindrical Grade 1 Office Entry Lever is an ideal choice for doors requiring locking with keyway. The 5407LN is certified to ANSI/BHMA Grade 1standards and is 3 hour UL Fire Rated.

Click here to See Accentra 5400 Grade 1 Catalog.

5401LN Function - Passage or Closet:

• For entrance, general home or office doors.
• Deadlocking latchbolt.
• Either lever operates latchbolt (except when outside lever is locked from inside).
• Pushing turn button in inside lever locks outside lever, and automatically releases when inside lever is turned or key is rotated in locked outside lever.
• Outside lever may be retained in locked position by pushing and rotating turn button 90° clockwise to a horizontal position; not released until turn button is manually returned to the vertical position.
• Latchbolt is operated by key in outside lever or by rotating inside lever.
• Inside lever always active.

Innovative Features Include:

• Free wheeling lever mechanism prevents vandalism and reduces maintenance
• Wear resistant chassis plates
• Heavy duty lever return springs and thru-bolting

Benefits Include:

• Heavy-Duty: Rugged Grade 1 construction offers greater reliability and resists wear-and-tear
• Secure: Innovative features protect against damage and vandalism
• Versatile: Range of functions and options offer an ideal solution for a variety of commercial applications
• Easy installation: Adjustable rose allows for easy adjustment on different door thicknesses
• Strong & Reliable: ANSI/BHMA Grade 1 certification for long-life and durability

Specifications:

• Backset: 2-3/4" Standard
• Door Thickness: Adjustable for doors 1-3/4" - 2"
• Handing: Non Handed, Field Reversible
• Latchbolt: 1/2" Throw
• Strike: ANSI Strike 4-7/8" x 1-1/4" x 1-1/4" lip to center

See SPECIFICATION tab for additional information.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 7 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.

For a more economical options, see our Accentra 5407LN Grade 1 Office Entry Lever
