Accentra 8827FL Hotel or Motel Mortised Lever Lockset with Camden Escutcheon - Custom Options

Accentra 8827 Mortised Commercial Locks Satin Chrome Finished
Accentra

Accentra (Formerly Yale) 8827FL Mortised Hotel or Motel Lockset is designed and manufactured for uncompromising strength and durability in a range of commercial applications. This lockset is exceeds ANSI / BHMA Grade 1 Standards and 3 Hour UL-Fire Rated.

Large selection of finishes and trims available.

PRICED PER UNIT


* Levers and Escutcheons are Nickel Plated to match Stainless Steel (for Stainless still finish).

See tabs below for additional information
    • SKU
      YL-ARxCN-8827FL-605
    • Market price:$1,440.54
      • save 37%
    • Starting price: Price: $913.51 per item


    About the 8800FL Series: Accentra 8800FL Series Mortised Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications.

    For more information see our Accentra 8800 Mortised Lockset Series Catalog.

    Ease of Use: Lock installation is made easy with quick lever handing, field reversible latchbolt and standard non handed strike.

    Enhanced Security: It offers a new measure of security featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability.

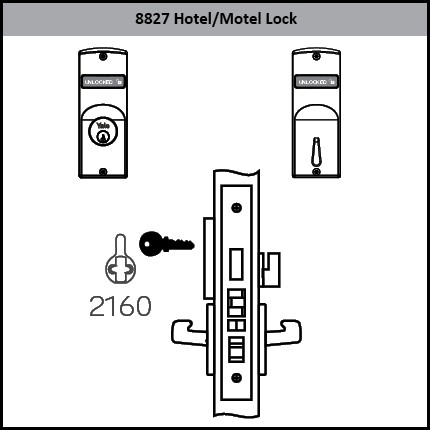

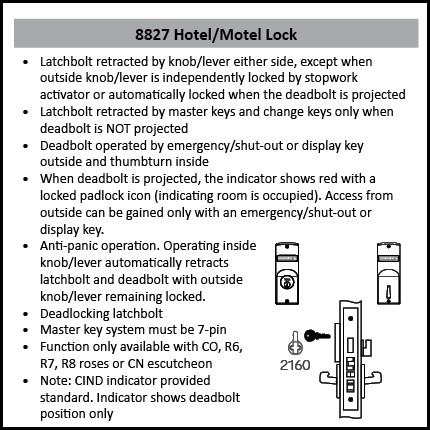

    8827FL Function - Hotel or Motel:

    • Latchbolt retracted by knob/lever either side, except when outside knob/lever is independently locked by stop work activator or automatically locked when the deadbolt is projected.
    • Latchbolt retracted by master keys and change keys only when deadbolt is NOT projected.
    • Deadbolt operated by emergency/shut-out or display key outside and thumbturn inside.
    • When deadbolt is projected, the indicator shows red with a locked padlock icon (indicating room is occupied). Access from outside can be gained only with an emergency/shut-out or display key.
    • Anti-panic operation. Operating inside knob/lever automatically retracts latchbolt and deadbolt with outside knob/lever remaining locked.
    • Deadlocking latchbolt.
    • Master key system must be 7-pin
    • Function only available with CO, R6, R7, R8 roses or CN escutcheon.

    Specifications:

    • ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
    • UL-cUL: UL/cUL fire rated up to 3 hours
    • Windstorm: Certified (refer to local codes)
    • Mechanism: Stainless steel
    • Backset: 2-3/4"
    • Latchbolt: 3/4" stainless steel throw
    • Door Thickness: 1-3/4" standard, to 3-1/4" thick doors to order (contact our office)
    • Fronts: Bevel front, free-floating to adjust from flat to standard bevel of 1/8" in 2"
    • Handing: Field reversible handing
    • Strikes: 1-1/4" curved lip for 1-3/4" door standard

    Suggested Applications: Offices, Shopping Centers, Industrial Buildings, Commercial Facilities.

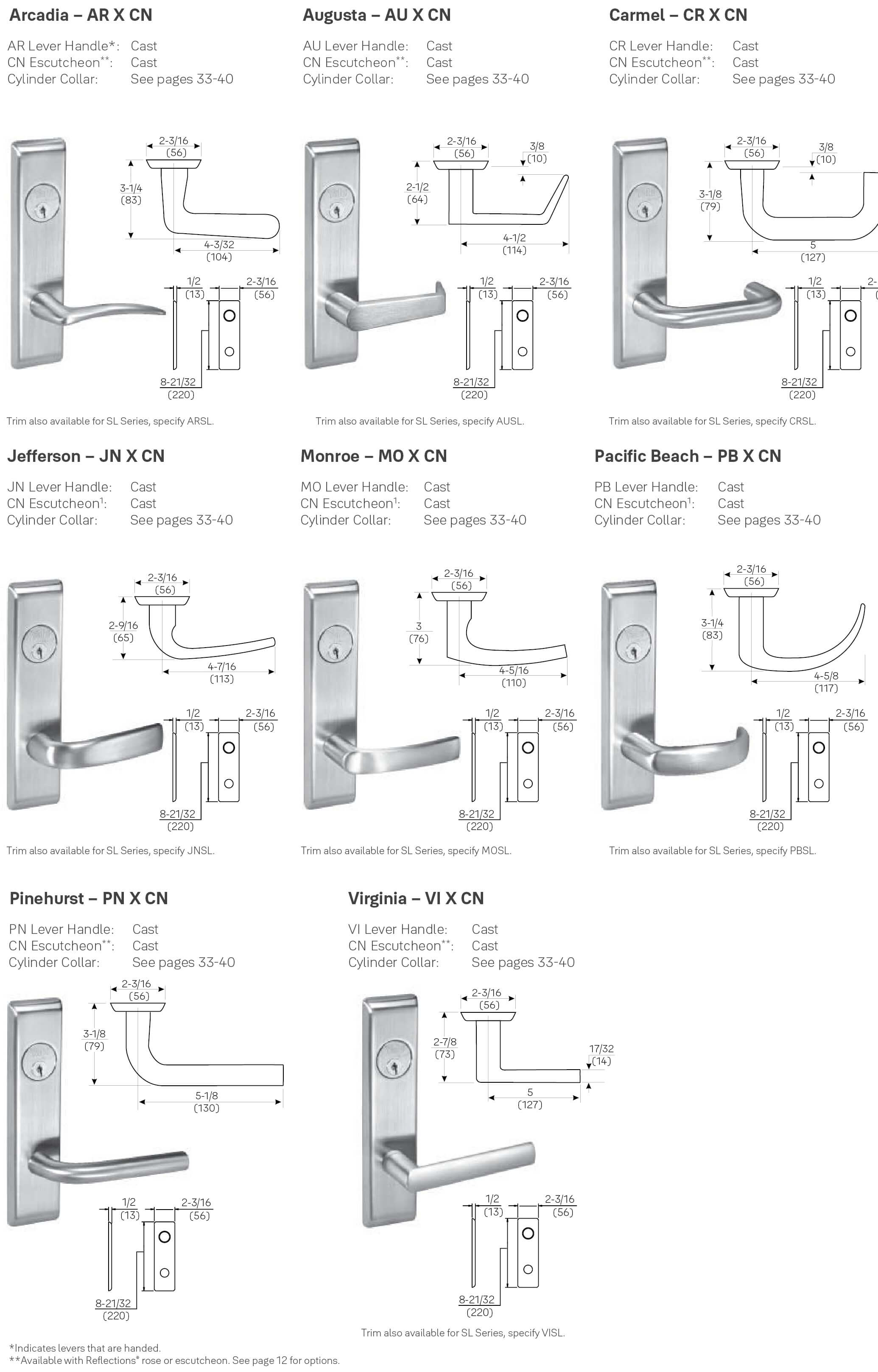

    Trims: Available in large selection of levers. See our 'Lever Trim' tab for dimensions and images.

    PRICED PER UNIT

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 10 year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    Additional functions are available, see our Accentra 8824FL Classroom or Holdback Mortised Lever Lockset with Camden Escutcheon

      • SKU
        YL-ARxCN-8827FL-605
    • QuickShip
      No
    • Manufacturer
      Accentra
    • MPN
      8801FL
    • About this Product
      • Lever Material
        Cast Zinc
      • Mechanism Material
        Stainless Steel
      • Collection / Series
        Accentra 8000FL Series
      • Lock Type
        Handleset
      • Lever / Knob Style
        Arcadia Lever (AR), Augusta Lever (AU), Carmel Lever (CR), Jefferson Lever (JN), Monroe Lever (MO), Pacific Beach Lever (PB), Pinehurst Lever (PN), Virginia Lever (VI)
      • Rosette Style
        Camden Escutcheon
    • Specifications
      • Cylinder Type
        7 Pin Cylinder
      • Backset
        2-3/4" Backset
      • Latch Throw
        3/4" Latch
      • Strike
        1-1/4" curved lip for 1-3/4"
      • Keyway
        No Cylinder Required, Conventional Mortised Cylinder, LFIC Interchangeable Core, SFIC Interchangeable Core, SFIC IC Prep (Less Cylinder)
      • Keying Type
        Keyed Different, Keyed Alike - Conventional Core, Master Keyed - IC Core
      • Door Thickness
        1-3/4" Thick Door
      • Keys Provided
        Yes
      • Handing
        Right Handed, Left Handed
      • Function
        Hotel/Motel
      • Mount Type
        Mortised
      • Grade
        Grade 1
      • Locking Mechanism
        Key
      • Deadbolt
        1" Cast Stainless Steel Throw
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Polished Bronze (US9), Satin Bronze (US10), Oil Rubbed Bronze, Equiv. (10BE), Polished Nickel (US14), Satin Nickel (US15), Polished Chrome (US26), Satin Chrome (US26D), Bright Stainless Steel (629) *, Satin Stainless Steel (630) *, Black Painted (693), Black Suede Powder Coat, White Suede Powder Coat
    • Compliance Details
      • Compliance Details
        ANSI A156.13 Operational Grade 1, UL/cUL - listed for 3 hour fire doors, Windstorm Resistant
      • ANSI Designation
        A156.13
      • Warranty
        10 Year Limited Warranty

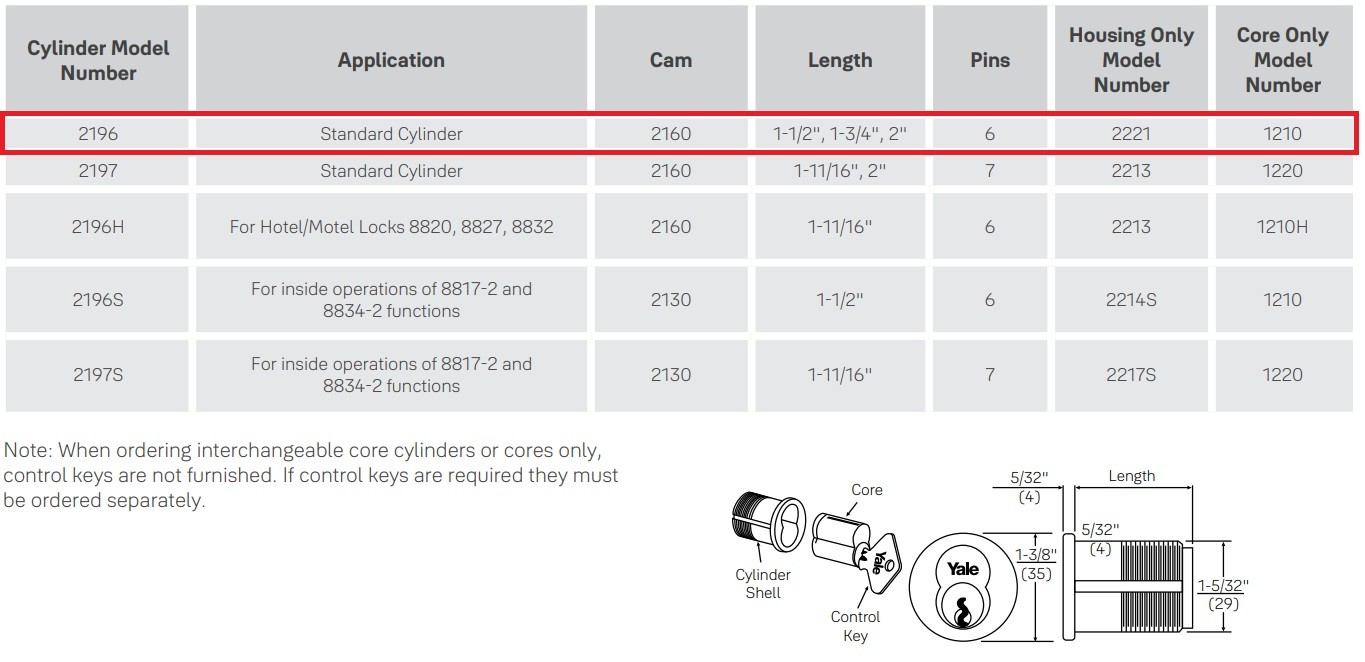

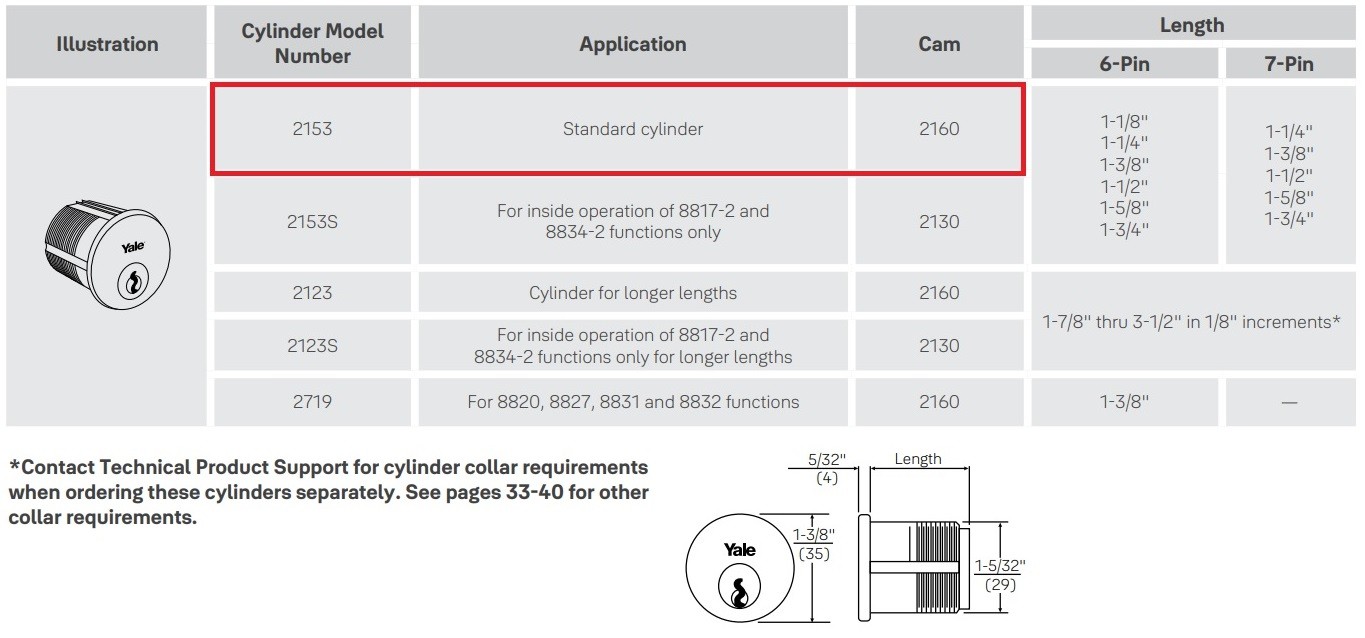

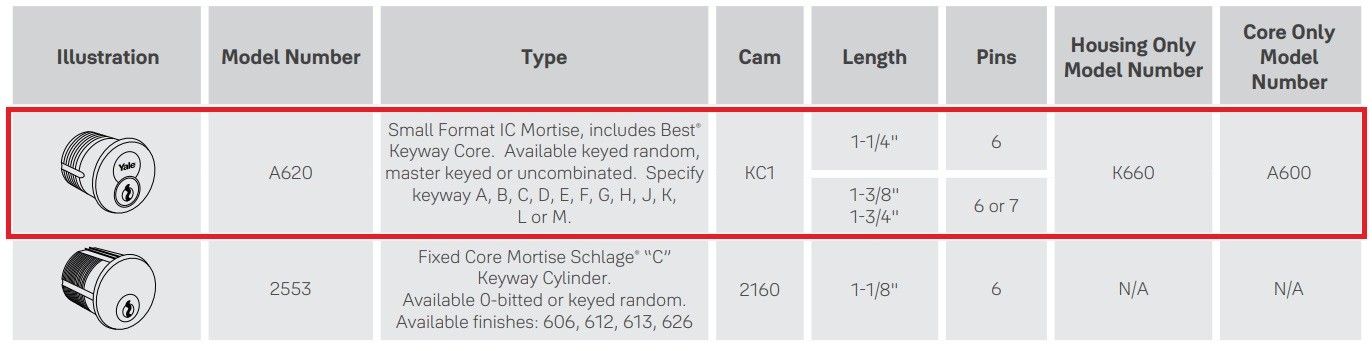

    Available Keyways Explained:

    • No Cylinder Required - No cylinder or cylinder rings will be provided.
    • Conventional Mortise Cylinder: Yale E1R PARA Keyway cylinder provided with 2 keys per lockset.


    • LFIC Interchangeable Core - Yale Keyway, Large Format IC Housing and Cylinder provided with 2 change keys per lockset. NOTE: Control keys are not provided unless additional control key option is selected.


    • SFIC Interchangeable Core - Best A Keyway, Small Format IC Housing and Cylinder provided with 2 change keys per lockset. NOTE: Control keys are not provided unless additional control key option is selected.


    • SFIC IC Prep - Less Cylinder - Interchangeable Core Housing is provided, keys and cylinders are not provided.
    • Additional keyways and keying options are available through our office. Please contact us for a quote.
