Accentra PB-4707LN Entry lever, Carolina lever, Grade 1, Pacific Beach Lever - Quick ship
Accentra (Formerly Yale) PB-4707LN Cylindrical General Home and Office Entry Locks is the ideal choice for a wide variety of commercial applications that require locking with keyway. The 4707LN is certified to ANSI / BHMI Grade 1 standards and is UL Fire Rated, ensuring reliability and peace of mind.
PRICED PER UNIT
For additional options, see our Accentra 4707LN Grade 1 EntryLever with Custom Options.
Accentra PB-4707LN Cylindrical General Home and Office Entry Locks is the ideal choice for a wide variety of commercial applications that require locking with keyway. The 4707LN is certified to ANSI / BHMI Grade 1 standards and is UL Fire Rated, ensuring reliability and peace of mind.
Click here to view the full Accentra 4700 Grade 1 Lever Lockset Catalog.

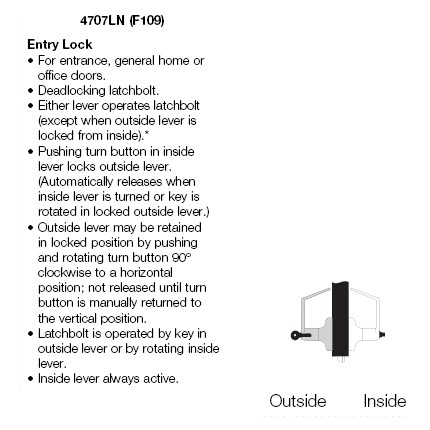

PB-4707 Lever Function - Entry:
- For entrance, general home or office doors.
- Deadlocking latchbolt.
- Either lever operates latchbolt (except when outside lever is locked from inside).
- Pushing turn button in inside lever locks outside lever. (Automatically releases when inside lever is turned or key is rotated in locked outside lever.)
- Outside lever may be retained in locked position by pushing and rotating turn button 90° clockwise to a horizontal position; not released until turn button is manually returned to the vertical position.
- Latchbolt is operated by key in outside knob or by rotating inside knob.
- Inside knob always active.
Features:
- Handing: Field reversible for ease of ordering and installation

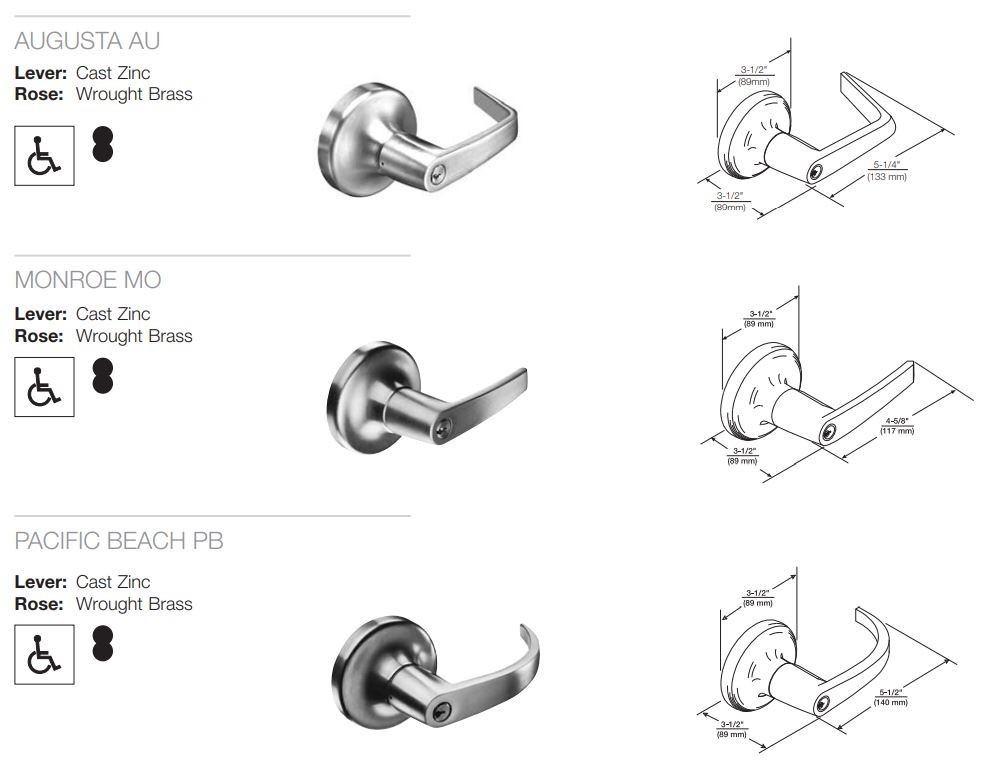

- Trims: Pacific Beach Lever
- Finish: selection of finishes available, select above
- ADA Compliance: for ease of accessibility
See SPECIFICATION tab for additional information.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.
Available with Grade 1 Certification, see our Accentra 4607LN Grade 2 Privacy Lock.
-
QuickShipYes
-
ManufacturerAccentra
-
MPNPB-4707LN
- About this Product
-
Lever MaterialCast Zinc
-
Rose MaterialWrought Brass
-
Mechanism MaterialHeavy-gauge steel, die-cast, zinc-plated, chromated
-
Collection / SeriesAccentra 4700 Series
-
Lock TypeLever
-
Lever / Knob StylePacific Beach Lever (PB)
-
- Specifications
-
Cylinder Type6 Pin Cylinder
-
Backset2-3/4" Backset
-
Latch Throw1/2" Latch
-
StrikeASA Strike, 4-7/8" x 1-1/4" x 1-1/4" Lip to Center
-
FaceplateSquare Corners
-
KeywaySchlage "C" Type
-
Keying TypeKeyed Random
-
Door Thickness1-3/4" - 2" Thick Door
-
Keys Provided2 Nickel, Silver Keys Provided
-
HandingReversible
-
FunctionEntry
-
Mount TypeCylindrical
-
GradeGrade 1
-
Cross Bore2-1/8" Cross Bore
-
Locking MechanismPush Button
-
- Finishes
-
FinishOil Rubbed Bronze, Equiv. (10BE), Satin Chrome (US26D)
-
- Compliance Details
-
Compliance DetailsADA Compliant, BHMA Certified, Windstorm Resistant, UL/cUL - listed for 3 hour fire doors
-
ANSI DesignationA156.2 Grade 1, A156.115 Door Prep
-
Warranty5 Year Limited Warranty
-
