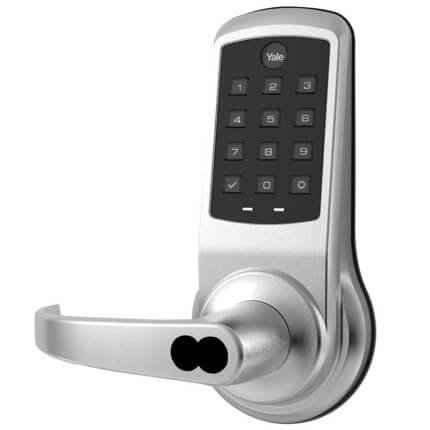

Accentra Smart Lock NTB613-NR nexTouch, Stand Alone Unit with Keypad, No Radio, Pacific Beach Lever - QUICKSHIP
The next level of door access! For your small enterprises, the Accentra (Formerly Yale) NTB613-NR nexTouch Door Locks offers simple and secure keyless PIN code door entry. Lockout mode, a tactile push-button keypad, and more are included. This door lock set has Modular technology that can be upgraded as demands and technology expand. This model includes a Pacific Beach door handle.
SOLD PER SET
Accentra nexTouch™ Keypad Lock
"The Next Generation in Access Control"
Take the next step in security with the nexTouch™ Keypad Lock from Accentra. nexTouch combines a modern look and innovative access control technology with an array of bold new features, offering an attractive access control solution to a range of facilities. With a heavy-duty design and ANSI/BHMA Grade 1 certification, nexTouch provides durable and reliable security from a brand trusted for over 170 years.
The next level of door access! For your small enterprises, the Accentra NTB612-NR nexTouch Door Locks offers simple and secure keyless PIN code door entry. Lockout mode, a tactile push-button keypad, and more are included. This door lock set has Modular technology that can be upgraded as demands and technology expand. This model includes a Pacific Beach door handle.
Specifications:
- Backset: 2-3/4" standard
- Latchbolt: 1/2" stainless steel throw standard
- Door Thickness: Adjustable from 1-3/8" to 1-3/4"
- Fronts: 2-1/4" x 1-1/8" beveled standard
- Reversibility: Non-handed, field reversible.
Features:
- Voice prompted programming
- Privacy mode to lockout keypad entry
- 9V battery back-up
Ratings:
- ANSI/BHMA: A156.2, Series 4000 Grade 1
- UL/cUL: UL/cUL fire-rated up to 3 hours
- Windstorm: Certified (refer to local codes)
- ADA: ICC/ANSI A117.1
SOLD PER SET
This product has a lifetime limited warranty against defects in material and workmanship. Mechanical and electrical components Have a three-year limited warranty and a one-year limited warranty on the finish. Click to view our Full Warranty Policy.
Click here to view our Accentra 2553-118 1-1/8″ Mortise Cylinder for SDA 16, Schlage C Keyway, with 1765.312 Sized Collar - QUICKSHIP
-
QuickShipNo
-
ManufacturerAccentra
-
MPNNTB613
- About this Product
-
Collection / SeriesAccentra nexTouch
-

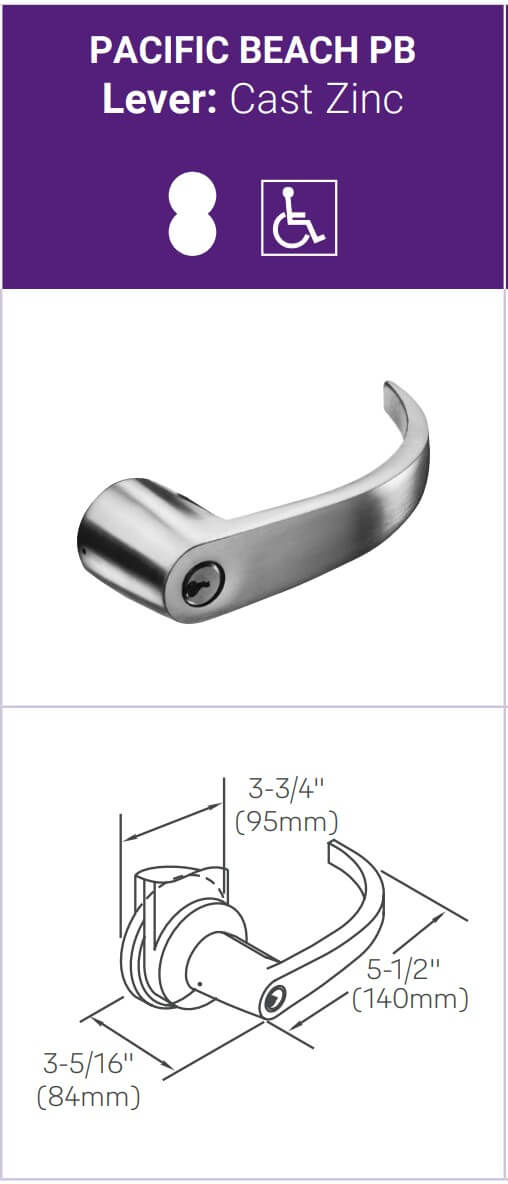

Lever / Knob StylePacific Beach Lever (PB)
-
- Specifications
-
Cylinder Type6 Pin Cylinder
-
Backset2-3/4"
-
StrikeANSI strike 4-7/8" x 1-1/4" x 1-1/4" lip to center
-
KeywayAccentra PARA Keyway, Schlage "C" Type, Arrow Keyway, SFIC Interchangeable Core - Less Cylinder
-
Door Thickness1-3/8" to 1-3/4"
-
Keys ProvidedYes
-
HandingReversible
-
Mount TypeCylindrical
-
GradeGrade 1
-
- Special Features
-
KeypadYes
-
- Finishes
-
FinishSatin Chrome (US26D)
-
- Compliance Details
-
Warranty3 Year Limited Warranty
-

"The Next Generation in Access Control"
Take the next step in security with the nexTouch™ Keypad Lock from Yale®. nexTouch combines a modern look and innovative access control technology with an array of bold new features, offering an attractive access control solution to a range of facilities. With a heavy-duty design and ANSI/BHMA Grade 1 certification, nexTouch provides durable and reliable security from a brand trusted for over 170 years.
Featuring fully modular technology, nexTouch can be easily upgraded from a stand-alone lock to accommodate more advanced technologies, for more complex applications including multi-family and small businesses. Whether you need basic access control or a scalable solution to expand as your needs grow, Yale Works for You.
Benefits:
- Easy Traffic Control: Engineered to provide a comprehensive, easy-to-use access control solution to
- Modular Technology: Unique and versatile design enables upgrade of the lock’s technology when needed
- Key-free Convenience: Reduces investment and maintenance costs
- Strong and Reliable: ANSI/BHMA Grade 1 certification ensures long life and reliability
Features
- Modular technology allows users to upgrade to Data-on-Card as system requirements change and grow
- Capacitive touchscreen or pushbutton keypad available, for tactile environments and ADA compliance
- Privacy mode enabled by a button push
- Up to 500 user codes in keypad-only operation
- 9V battery power backup prevents lockout even if the batteries fail
- A Certified Integrator is required to configure this product with ASSA ABLOY ACCENTRA™
