Adams Rite Deadlock 2190-MN Dual ForceĀ®, Interconnected Deadbolt/Deadlatch, Odeon Designer Handle, For Narrow Stile Aluminum Doors
This model is an interconnected deadbolt/deadlatch that provides both security and accessibility for narrow stile aluminum doors. The lock comes with an Odeon designer handle and a standard trim set. The product includes the lock body only; cylinder and/or thumbturn need to be purchased separately. Available in many options, choose from the dropdowns.
PRICED PER PIECE
This interconnected deadbolt/deadlatch provides both security and accessibility for narrow stile aluminum doors.
Please note, cylinder and/or thumbturn are not included with this product and are available for purchase separately.
Cylinder Backset:Ā Distance from the edge of the lock to the center of the cylinder hole.
This deadlock comes in a choice of two backsets:
- 1-1/8" (28.6 mm) backset
Length of case (B) = 1-3/4" (45.2 mm)
- 1-1/2" (38.1 mm) backset
Length of case (B) = 2-1/4" (57.2 mm)
Latchbolt: Easily reversible using only a screwdriver.Ā
Auxiliary Deadlatch Pin: Stainless steel. Deadlocks latchbolt to prevent āloidingā or case-knife entry.Ā
Faceplate: Includes faceplate system that adapts to flat, radius, or beveled door edge. Available in a choice of finishes.
Strike:Ā The 2190 will only operate with the uniquely designed strike plate that comes standard in the package. The standard strike furnished is the 2101-01 Strike for flat jamb where door closes flush or nearly flush. Also available in radius version for opposite stile pairs of doors and with extended lip strikes for special jamb conditions.

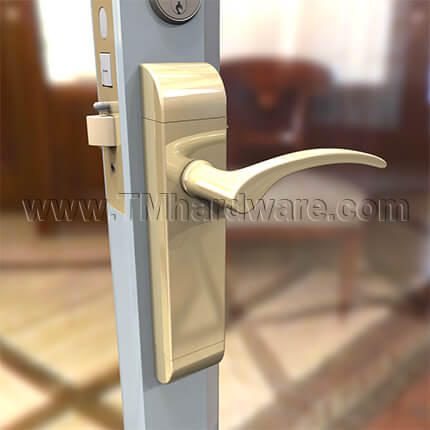

Handle Type:Ā This deadlock comes with an Odeon designer handle in a choice of styles.
For an interconnected deadbolt/deadlatch with a standard handle, see our 2190-01 Deadlock.
For an interconnected deadbolt/deadlatch with other designer handles see our 2190 Deadlock with the Aventura Handle and Centro Handle.
For an interconnected deadbolt/deadlatch without a handle, see our 2190-00 Deadlock.
Installation: For details on how to install this deadlock, see our Installation Instructions or view video clip above.
Operation: This unique device operates with a smooth single motion release from the interior.
Inside lever retracts both deadbolt and deadlatch when configured with interconnect feature. Outside lever retracts latch only. Latch holdback feature activated or deactivated by turning key to retract latch. Sliding holdback button on faceplate down will hold back latch and sliding up will release. Key or thumbturn projects or retracts deadbolt or deadlatch. Lock accepts any standard 1" (25.4 mm) length, 1-5/32" (29.4 mm) diameter mortise cylinder with MSĀ® cam, available separately. Lock accepts cylinder from either or both sides.
Interconnection:Ā Field-selectable interconnection feature allows interior trim to retract deadbolt and deadlatch. Consult local authority having jurisdiction (AHJ) for guidance in code compliance. 1-3/4" minimum door thickness required. 2190 retrofits to existing MS1850S Deadlock or 4500 and 4900 Deadlatch of the same backset.
Additional Options:Ā Additional options are available, please contact us for details and pricing.Ā
- Non-standard trim sets - Electrified trim set is designed for easy integration into an existing access control system. Low profile trim set is recommended for in-swing door applications.
- Radius with weatherseal faceplate
- Thick door kit
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.
This product has a 10 year warranty against defects in materials and workmanship.
Ā Click here to view our Full Warranty Policy.
Click here to view our Adams Rite Deadlock 2190-MD, Interconnected Deadbolt/Deadlatch, Centro Designer Handle.
-
QuickShipNo
-
ManufacturerAdams Rite
-
Trim SetStandard Trim Set, Electrified Trim Set, Low Profile Trim Set
- Product Details
-
Included PartsDeadlock, Faceplate, Strike Plate, Trim, Lever, Machine Screws
-
Faceplate TypeAdaptable Faceplate
-
Bolt TypeInterconnected Deadbolt/Deadlatch
-
Bolt MaterialLatchbolt: solid brass
Deadbolt: stainless steel -
Strike TypeNo Strike Plate, Flat / Standard Jamb, Radius / Standard Stile, Flat / Center Hung 4" Jamb, Flat / Center Hung 4-1/2" Jamb
-
ANSI / BHMA GradeGrade 1
-
Handle StyleOdeon Series MN Designer Handle, Odeon Series MV Designer Handle
-
Trim & Handle FinishBright Brass (US3), Satin Brass (US4), Dark Bronze, Bright Stainless (US32), Satin Stainless (US32D)
-

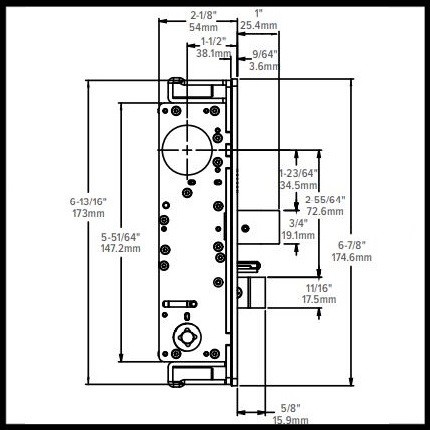

- Dimensions
-
Case Dimensions1" W x 5-51/64" H
Length varies with cylinder backset -
Faceplate Dimensions1" W x 6-7/8" H
-
Bolt DimensionsLatchbolt: 11/16" x 5/8"
Deadbolt: 3/4" x 1" -
Bolt ThrowLatchbolt: 5/8"
Deadbolt: 1" -
Cylinder Backset1-1/8" Backset, 1-1/2" Backset
-
- Installation
-
Door TypeNarrow Door, Swinging Door
-
Door MaterialAluminum
-
HandingRH or LHR, LH or RHR
-
- Finishes
-
FinishClear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Black Anodized (335)
-
- Compliance Details
-
Warranty10 Year Limited Warranty
-
