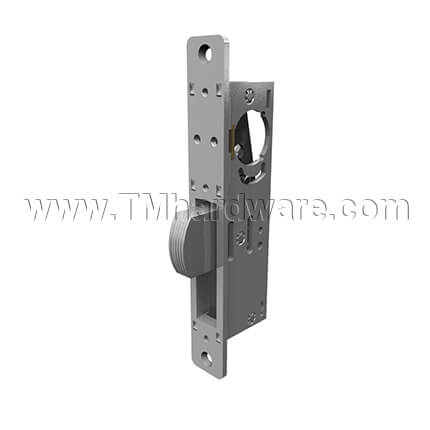

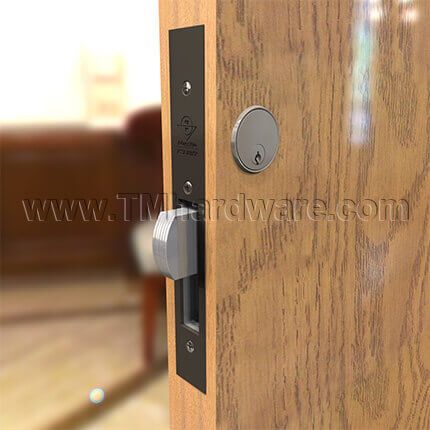

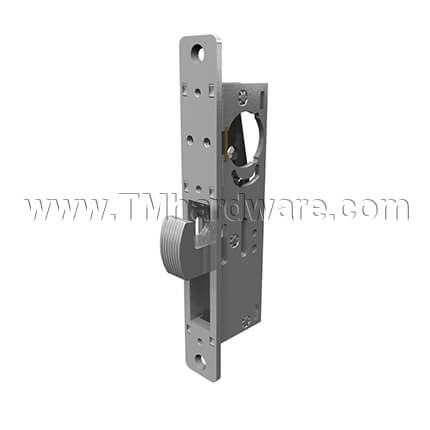

Adams Rite Deadlock MS1850SN Series MSĀ®, ANSI Size, For Hollow Metal or Wood Doors
This model is an ANSI size deadlock that provides maximum security forĀ hollow metal or wood doors. The lock comes with a choice of a straight or hook bolt, making it the perfect solution for both swinging and sliding doors. The product includes the lock body only; cylinder and/or thumbturn need to be purchased separately.Ā Available inĀ many options, choose from the dropdowns below.
See full product details and specs in the tabs below.
PRICED PER PIECE
This ANSI size deadlock provides maximum security for hollow metal or wood doors.
Please note, strike plate, cylinder and/or thumbturn are not included with this product and are available for purchase separately.
Cylinder Backset: Distance from the edge of the lock to the center of the cylinder hole. The standard backset dimension provides adequate clearance for the deep stop on the door jamb of hollow metal entrances.
Bolt:Ā Eight-ply laminated stainless steel. Center ply has alumina-ceramic core to defeat any hacksaw attack, including rod-type āsuperā hacksaws.Ā The over-center maximum security (MS) locking action assures that forced entry attempts to pry the door in any direction, up, down, or sideways will be defeated.
This deadlock comes in a choice of two bolt types:

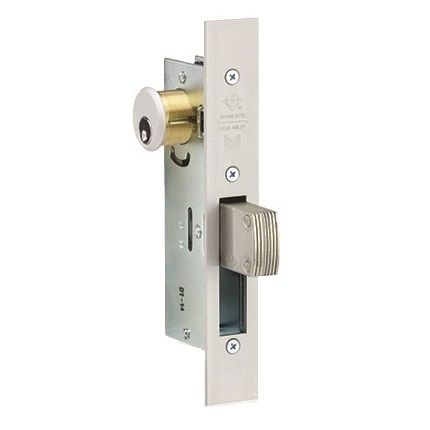

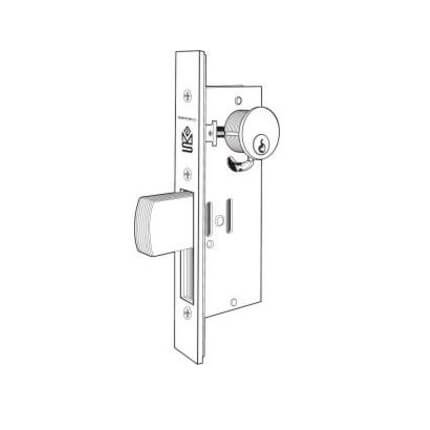

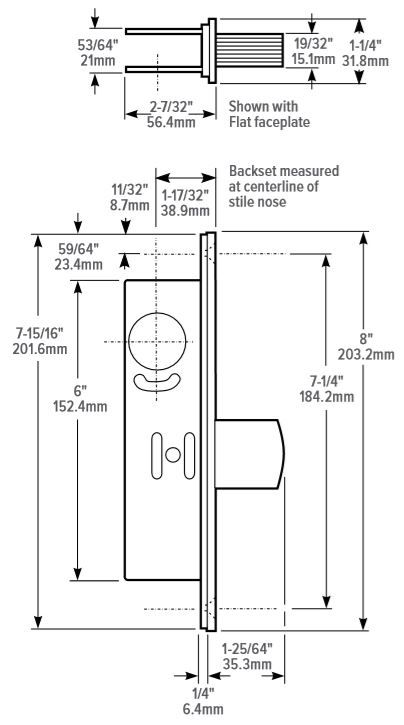

- Standard Straight Bolt (MS1850SN) - for a swinging single leaf hollow metal or wood door.

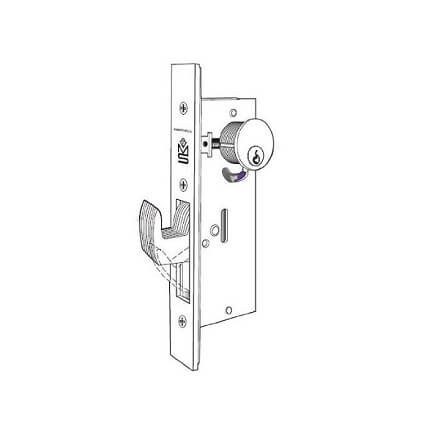

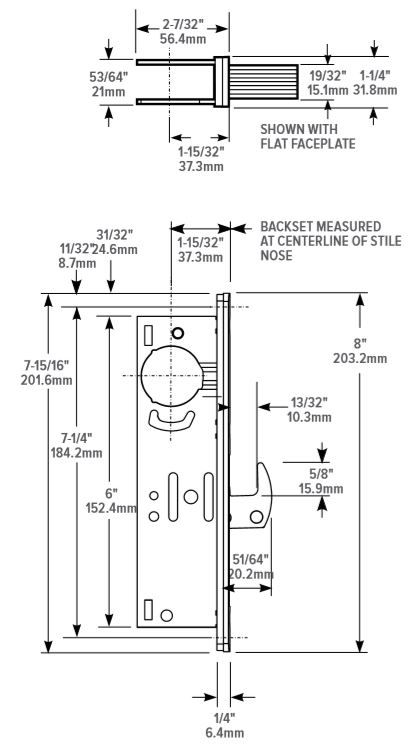

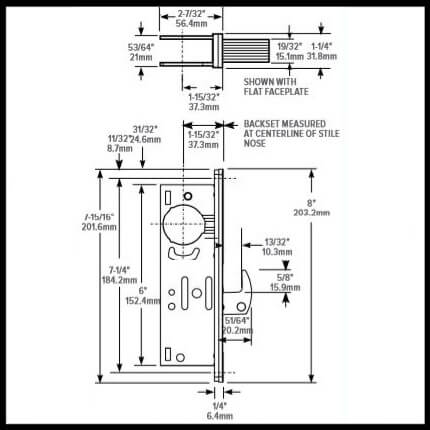

- Hook Bolt (MS1850SN-X5X) - for a sliding hollow metal or wood door. Hook shape bolt resists the parting motion of sliding door and jamb, and repels pry bar attempts to āspreadā the door from its jamb or lift it off its track.
Certification: This deadlock is prepared for hardware according to American National Standards Institute (ANSI) specifications.
Installation: For details on how to install this deadlock, see our Installation Instructions.
Operation: 360Ā° turn of the key or thumbturn projects or retracts the counterbalanced bolt. Key can be removed only when the bolt is in a positively locked or unlocked position. Lock accepts any standard 1" (25.4 mm) length, 1-5/32" (29.4 mm) diameter mortise cylinder with MSĀ® cam, available separately. Lock accepts cylinder from either or both sides.
Additional Options:Ā Schoolhouse option is available, please contact us for details and pricing. The lock has the same faceplate and backset options as standard function but is modified so that operation from the inside is "unlock only." The lock is handed and must be specified LH or RH.
Compatible Cylinders:
- Adams Rite #4036 - Mortise Cylinder
- Adams Rite #4066 - Thumbturn Insert
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.
This product has a 10 year warranty against defects in materials and workmanship.
Ā Click here to view our Full Warranty Policy.
Click here to view our Adams Rite Deadlock MS1850S, For Narrow Stile Aluminum Doors.
-
QuickShipNo
-
ManufacturerAdams Rite
-
MPNMS1850SN; MS1851SN; MS1852SN
- Product Details
-
Included PartsDeadlock, Faceplate, Mounting Screws
-
Case MaterialSteel with corrosion resistant plating
-
Faceplate TypeFlat Faceplate, Radius Faceplate, Bevel Faceplate
-
Bolt TypeStraight Bolt, Hook Bolt
-
Bolt MaterialEight-ply laminated stainless steel, center ply has alumina-ceramic core
-
ANSI / BHMA GradeGrade 1
-
- Dimensions
-
Case Dimensions2-1/4" L x 1" W X 6" H
-
Faceplate Dimensions1-1/4" W x 8" H
-
Bolt DimensionsStraight Bolt: 5/8" x 1-3/8" x 2-7/8"
Hook Bolt: 5/8"x 1-3/8" -
Bolt ThrowStraight Bolt: 1-3/8"
Hook Bolt: 13/16" -
Cylinder Backset1-1/2" Backset
-
- Installation
-
Door TypeSwinging Door, Sliding Door
-
Door MaterialHollow Metal, Wood
-
HandingLH or RHR, RH or LHR, Non Handed
-
- Special Features
-
Maximum SecurityYes
-
- Finishes
-

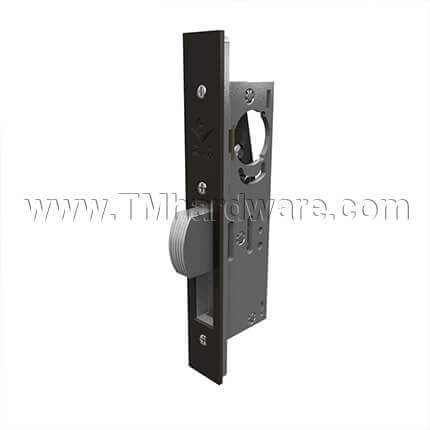

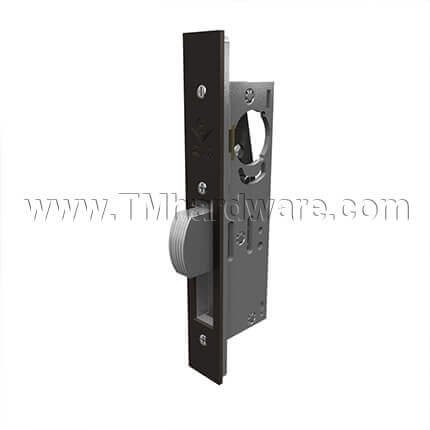

FinishDark Bronze Anodized Aluminum (313), Black Anodized (335), Clear Anodized Aluminum (US28)
-
- Compliance Details
-
Compliance DetailsBHMA Certified
-
Warranty10 Year Limited Warranty
-
