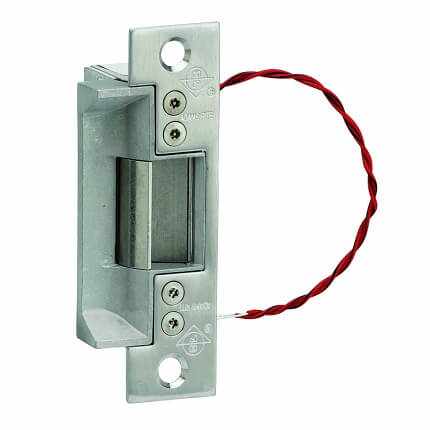

Adams Rite Electric Strike 7240, Fire-Rated, For Cylindrical Locks, For Hollow Metal Jambs

Adams Rite 7240 Electric Strike
Adams Rite

This model is a fire-rated electric strike for cylindrical locksets with up to 5/8" latchbolt projection. The strike is designed for use on hollow metal door jambs. Available in a choice of voltage and current, choose from the dropdowns below.

See full product details and specs in the tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      AR7240
    • Market price:$469.00
      • save 35%
    • Starting price: Price: $304.85 per item


    Adams Rite offers a wide range of electric strikes compatible with many locks in different applications. This electric strike is for cylindrical locksets with up to 5/8" latchbolt projection, and is designed for use in hollow metal applications.

    Faceplate: Flat with square corners

    Strike Opening: Stainless steel bolt retaining keeper

    Strike Lip: Stainless steel. Basic strike has lip of proper length for 1-3/4" (44.5 mm) thick door that closes flush with jamb edge. Lip extension kits available separately for door thickness or jamb shape that differ from this standard relationship.

    Operating Mode: Fail secure: Unlocks when energized; in the event of a power failure the strike remains in a locked condition.

    DC continuous units are silent, AC intermittent units “buzz” on operation.

    Lock Compatibility: For use with cylindrical locksets with up to 5/8" (15.9 mm) latchbolt projection.

    Operation: Electrical actuation unlocks the keeper and releases the latchbolt so the door may be opened without operating the latch itself. Electric strikes are used in conjunction with mechanical locksets and a card reader, keypad or button to provide electrical control of remote operation.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 5 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our Adams Rite Electric Strike 7170, For Mortise and Cylindrical Locks, For Hollow Metal and Wood Jambs.

      • SKU
        AR7240
    • QuickShip
      No
    • Manufacturer
      Adams Rite
    • MPN
      7240
    • Product Details
      • Included Parts
        Strike Body, Faceplate(s), Mounting Screws, Mounting Clips, Adhesive Shims
      • Faceplate Type
        Flat
      • Compatibility
        Cylindrical Locks
      • Voltage
        12 Volts, 24 Volts
      • Current and Duty
        DC continuous or intermittent, AC intermittent
      • Current Draw
        0.33A at 12 VDC, 1.42A at 12 VAC
        0.17A at 24 VDC, 0.74A at 24 VAC
      • Operating Mode
        Fail Secure (Standard)

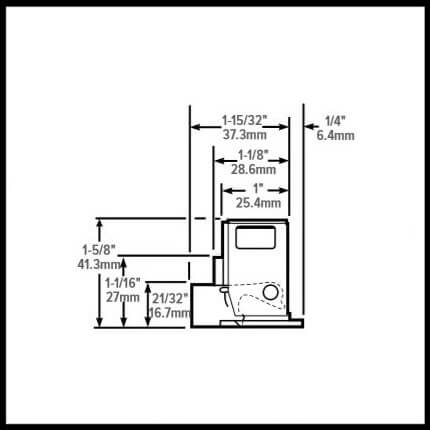

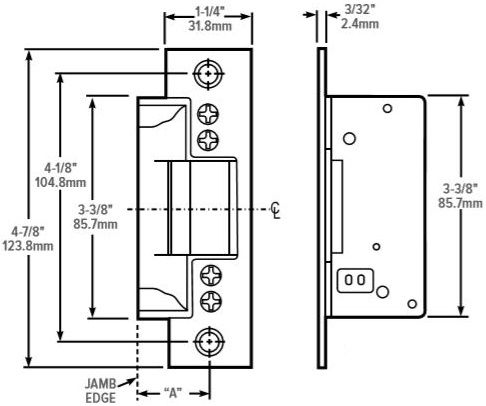

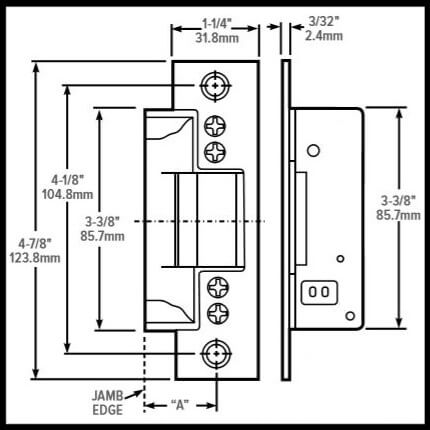

    • Dimensions
      • Case Dimensions
        1" L x 1-5/8" W x 3-3/8" H
      • Faceplate Dimensions
        1-1/4" W x 4-7/8" H
      • Strike Opening
        5/8" L x 9/16" W x 1-7/16" H
      • Strike Lip
        For 1-3/4" Thick Doors
    • Installation
      • Door Material
        Hollow Metal
    • Special Features
      • Cycle Testing
        250K
    • Finishes
      • Finish
        Satin Stainless Steel (US32D)
    • Compliance Details
      • Compliance Details
        UL Listed, Fire Rated
      • Warranty
        5 Year Limited Warranty

    Custom options are available, please contact us for details and pricing.

    • Lip Extension Kit - for various dimensions of door centerline to jamb edge
    • Monitoring Kit - indicates when the latchbolt is engaged in the strike and whether the strike jaw is blocked
    • PS-1 Power Supply - provides filtered and regulated voltage output to power electric strikes
    • 4603 Rectifier - converts low voltage AC current to DC of same voltage
    • 4605 / 4606 Transformer - converts 120 VAC to 12/24 VAC
    • Piezo Horn Audible Indicator - provides for audible indication when a DC electric strike is energized

    Certificate of Compliance

    UL 10C fire rated, 3 hour single door (fail secure only)

    CAN/ULC-S104 fire door conformant
