Adams Rite Electric Strike 74R2, UltraLine®, For Rim Exit Devices with 1/2" Pullman Latchbolts

Adams Rite Electric Strike 74R2, UltraLine®, For Rim Exit Devices with 1/2" Pullman Latchbolts
Adams Rite

This model is an electric strike for rim exit devices with 1/2" Pullman type latchbolts. The strike is designed for use on narrow stile aluminum door jambs. The 7400 series UltraLine® strikes feature an ultra compact design and adjustable keepers that are capable of operating under 25 lbs of door preload. Available in a choice of finish options, choose from the dropdown below.

See full product details and specs in the tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      AR74R2-119
    • Market price:$436.00
      • save 35%
    • Starting price: Price: $283.40 per item


    Adams Rite offers a wide range of electric strikes compatible with many locks in different applications. This UltraLine® electric strike is for rim exit devices with 1/2" Pullman type latchbolts, and is designed for use in narrow stile aluminum applications.

    Strike Opening: Stainless steel bolt retaining keeper

    Voltage: Field selectable to match power source of 12 and 24 VDC. Equipped with a quick connect plug-in type connector. Power source of 16 VDC requires a voltage adapter, available separately.

    Operating Mode:

    • Fail secure: Unlocks when energized; in the event of a power failure the strike remains in a locked condition.
    • Fail safe: Locks when energized; in the event of a power failure the strike remains in an unlocked condition.

    Please note, fail secure and fail safe are field selectable at time of installation, see Fail Secure / Fail Safe Manual for instructions.

    Preload: Pressure exerted on a door (by air conditioning systems, warping or misaligned hardware) which can disable common electric strikes, leaving doors unlocked and buildings vulnerable. The Ultraline 7400 series electric strikes are capable of operating electrically under 25 lbs of door preload. Using jaw inserts of various sizes, the ultra compact strikes are adjustable to compensate for door and frame related preload and security problems.

    Lock Compatibility: For rim exit devices with 1/2" (12.7 mm) Pullman type latchbolts

    Operation: Electrical actuation unlocks the keeper and releases the latchbolt so the door may be opened without operating the latch itself. Electric strikes are used in conjunction with mechanical locksets and a card reader, keypad or button to provide electrical control of remote operation.

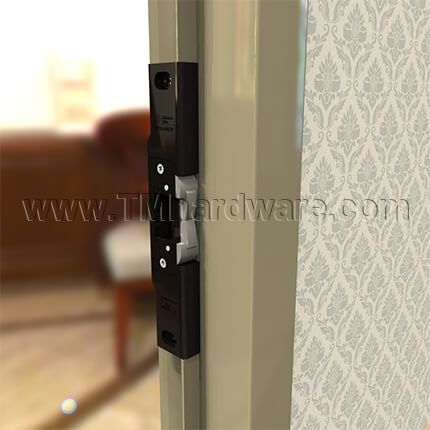

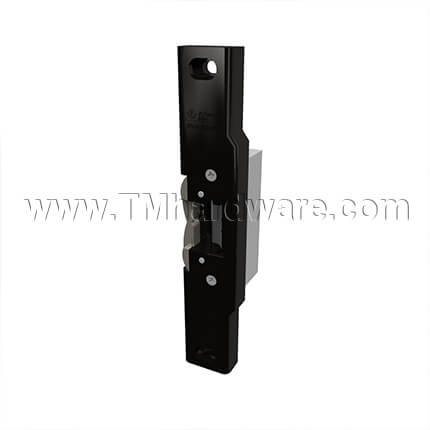

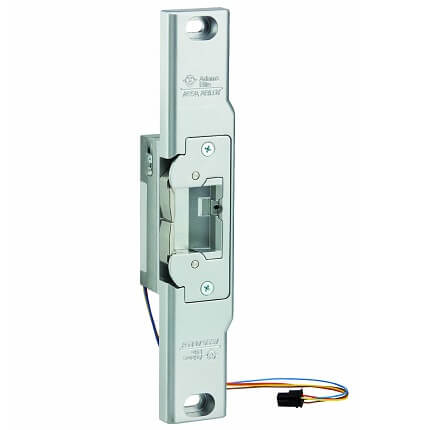

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 5 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our Adams Rite Electric Strike 74R1, UltraLine®, For Rim Exit Devices with 3/4" Pullman Latchbolts.

      • SKU
        AR74R2-119
    • QuickShip
      No
    • Manufacturer
      Adams Rite
    • MPN
      74R2
    • Product Details
      • Included Parts
        Strike Body, Faceplate(s), Mounting Screws, Mounting Plate Shims
      • Faceplate Type
        Attached
      • Compatibility
        Rim Exit Device with Pullman Latcholt
      • Voltage
        12 Volts, 16 Volts, 24 Volts
      • Current and Duty
        DC continuous or intermittent
      • Current Draw
        .44A at 12 VDC
        .46A at 16 VDC
        .23A at 24 VDC
      • Operating Mode
        Fail Secure (Standard), Fail Safe
      • ANSI / BHMA Grade
        Grade 1

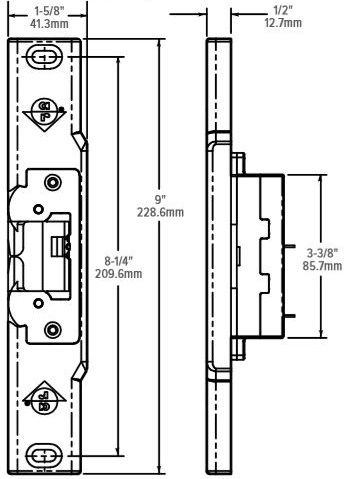

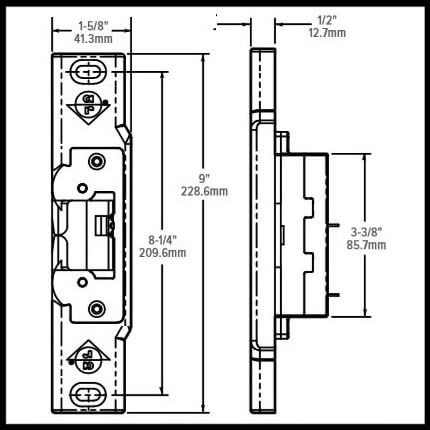

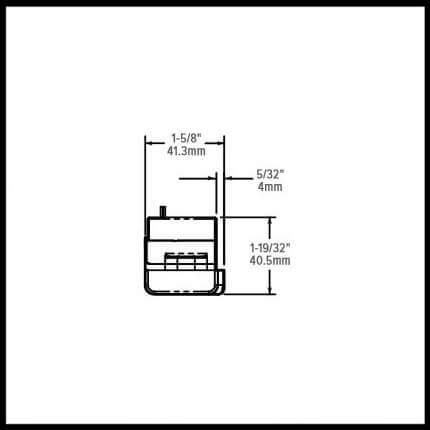

    • Dimensions
      • Case Dimensions
        1-13/32" L x 1-1/8" W x 3-3/8" H
      • Faceplate Dimensions
        1-5/8" L x 1/2" W x 9" H
      • Strike Opening
        5/8" L x 1/2" W x 1-7/16" H
    • Installation
      • Door Material
        Aluminum
    • Special Features
      • Preload Solution
        Yes
      • UltraLine®
        Yes
      • Static Strength
        1,500 lbs
      • Dynamic Strength
        70 ft lbs
      • Cycle Testing
        250K
    • Finishes
      • Finish
        Black Anodized (335), Dark Bronze Anodized (121), Clear Anodized (130)
    • Compliance Details
      • Compliance Details
        UL Listed, BHMA Certified
      • Warranty
        5 Year Limited Warranty

    UL 1034
    UL 294
    ULC-S319
    ANSI/BHMA A156.18
    ANSI/BHMA A156.31 Electric Strikes and Frame Mounted Actuators, Grade 1

    Custom options are available, please contact us for details and pricing.

    • Monitoring Kit - indicates when the latchbolt is engaged in the strike jaws and a locked/unlocked solenoid status
    • PS-1 Power Supply - provides filtered and regulated voltage output to power electric strikes
    • 4603 Rectifier - converts low voltage AC current to DC of same voltage
    • 4605 / 4606 Transformer - converts 120 VAC to 12/24 VAC
    • Piezo Horn Audible Indicator - provides for audible indication when a DC electric strike is energized
    • ELX-ElectroLynx® Adapter - connects Adams Rite electrified products to ElectroLynx system
    • VA7400-16VDC - adapter required when using 16 VDC Power
