Adams Rite Exit Device 8700 / 3700 Series, Starwheel Interlocking Rim, For Hollow Metal and Wood Doors

Adams Rite Exit Device 8700 / 3700 Series, Starwheel Interlocking Rim, For Hollow Metal and Wood Doors
Adams Rite

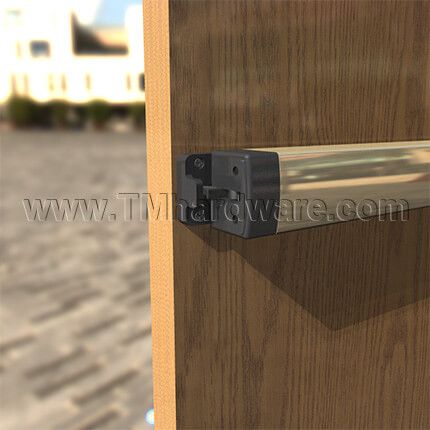

This model is an interlocking rim exit device for hollow metal and wood doors. The mechanism features a unique starwheel bolt that interlocks the door to the frame for enhanced strength and durability. The product is designed for applications that require a life-safety or a fire-rated exit device. Available in several options, choose from the dropdowns below.

See full product details in the tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      AR8701
    • Market price:$782.00
      • save 40%
    • Starting price: Price: $469.20 per item


    Adams Rite exit devices offer accessibility that other access control solutions can't match, with a variety of options to suit any application. This interlocking rim exit device is for hollow metal and wood doors, in fire-rated and non fire-rated applications.

    Click here to print the Adams Rite Exit Device Catalog.

    The product is an exit only device, no entry from outside. Additional trims can be added separately.

    Door Width: For 30" - 48" door opening widths. Standard width bars can be field cut to the next smallest opening width. On pairs of doors, specify half of the total exit opening.

    Stile Width: 3-3/4" minimum. Door construction may require additional stile width to meet fire ratings and provide adequate strength.

    Starwheel Bolt:

    1. When the door closes, the interlocking nose guard and Starwheel bolt close around the strike. The deadlocking slide springs over, locking the Starwheel bolt to the strike.

    2. When the pushbar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike. This unique interlock provides solid security and prevents jamb spreading.

    Diagram

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

    This product has a 5 year warranty against defects in materials and workmanship.
    Click here to view our Full Warranty Policy.

    Click here to view our Adams Rite Exit Device 8600 Series, Concealed Vertical Rod, For Narrow Stile Aluminum Doors.

      • SKU
        AR8701
    • QuickShip
      No
    • Manufacturer
      Adams Rite
    • MPN
      8700; 3700
    • Product Details
      • Included Parts
        Pushbar, Starwheel Bolt, Hardened Steel Strike, Self Tapping Screws, Machine Screws
      • Exit Device Type
        Rim with Starwheel
      • Model
        Life-safety, Fire-rated
      • Series
        Adams Rite 8000 / 3000 Series
      • Material
        Extruded Aluminum
      • Bolt
        Starwheel Bolt
    • Door Compatibility
      • Door Type
        Single Door, Paired Doors with a Mullion
      • Door Material
        Hollow Metal, Wood
      • Door Width
        30" Opening Width, 36" Opening Width, 42" Opening Width, 48" Opening Width
      • Door Thickness
        1-3/4" - 2-1/4" Thick
      • Stile Width
        3-3/4" minimum width
    • Dimensions
      • Projection
        2-5/8" Projection
      • Projection when Dogged
        1-5/8" Projection
    • Installation
      • Handing
        Non Handed
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Polished Stainless Steel (US32), Satin Stainless Steel (US32D), Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Black Anodized (335)
    • Compliance Details
      • Compliance Details
        UL Listed, BHMA Certified, ADA Compliant, Fire Rated
      • Warranty
        5 Year Limited Warranty

    Click to Print - 8700 Installation Instructions

    Click to Print - 3700 Installation Instructions

    Click to Print - Owner's Manual

    UL 305 Panic Hardware

    ANSI/BHMA A156.3-2008 Grade 1 ANSI/BHMA A156.3-2014 Grade 2

    All Adams Rite exit devices fully meet building codes and ADA guidelines for accessibility and clearance.



    3700 Only:

    UL 10(c) fire-rated, up to 3 hours for non "T" product
     CAN/ULC S104 fire door conformant
     NFPA 252 fire door conformant

    Model
    Type
    Rating
    Door Construction
    Max Size Single Doors
    Max Size Pairs & Double Egress
    3700
    RE (Rim Exit)
    3 hr
    Hollow metal or wood
    4'0" x 10'0"
    8'0" x 10'0"

    Rating

    This exit device comes in a choice of additional options, please contact us for details and pricing.

    Alarm Option: Battery operated option that emits a loud alarm to notify management of unauthorized exit. Suitable for exit devices 36" wide or greater. For more details, see our Alarmed Exit Device Installation.

    Please note, alarm option cannot be combined with any other device option or monitoring option.



    Device Options:

    • Electric Latch Retraction (LR) - Uses solenoid mounted in the pushbar for instantaneous unlocking and locking of the exit device from a remote location or access control device. Available in 12 and 24 volts.
    • Motorized Latch Retraction (MLR) - Incorporates a powerful and efficient motor to unlatch the exit device while providing a quieter operation than the solenoid option. For more details, see our MLR Device Option Installation.
    • Mechanical Dogging: Latchbolt is held retracted manually, by use of a hex key or cylinder, available separately. Mechanical dogging cannot be used on fire-rated devices. For more details, see our Mechanical Dogging Installation.
    • Electrical Dogging: Latchbolt is held retracted electrically, by use of a motor or solenoid via remote activation. For more details, see our Electrical Dogging Installation.

    Please note, the MLR Device option is supported by a 1 year electro mechanical warranty. When powered by an Adams Rite PS-SE power supply the 1 year warranty is upgraded to 5 years.



    Monitoring Options:

    • Single Switch
    • Dual Switch

    Mounted in the exit device pushbar on the hinge end, the switch can be used to activate a signal light, horn, monitor or other devices. For more details, see our Monitoring Option Installation.

    Please note, 30" exit devices cannot accommodate monitoring options, except when ordered in conjunction with the MLR device option.



    Custom Options:

    • Matching end caps for US finishes only
    • Steel mullions for doors up to 96" - allows the use of rim exit device on paired doors without narrowing the door
    • Sex bolt kit (2 required per device)
    • Power supply / power transfer
