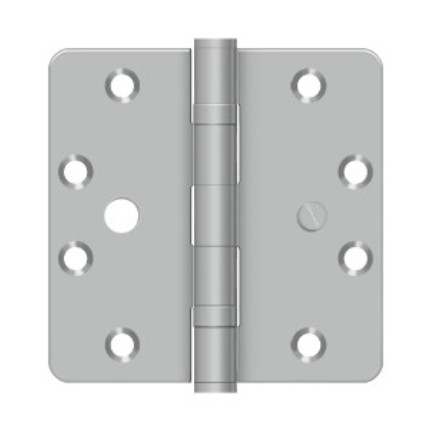

Deltana, 2 Ball Bearings, Stainless Steel, 5 Knuckle, Full Mortise Hinge, 4.5" x 4.5" x 1/4" Radius Hinge
This Deltana Hinge is a Residential, Full Mortise, 5 Knuckle 2 Ball Bearings Hinge, and is made of Stainless Steel. Size of hinges is 4.5" x 4.5" with Square Corners and Button Tip Finials. See below for available finishes.
PRICED PER PAIR
Deltana stainless steel hinges are great for waterside properties and outdoor use. They have excellent corrosion resistance compared to regular steel hinges.
Deltana Full Mortised, 5 Knuckle Hinge DTSS45R4SBU32D Features:
- Grade: Residential, Full Mortise
- Bearings: 2 Ball Bearings
- Base Material: Stainless Steel
- Size: 4.5" x 4.5"
- Corners: 1/4" Square Corners
- Tip: Button Tip Finials
Available Finishes: See options above, see Deltana Hinges Color Chart for a detailed list of all Deltana Finishes.
Priced Per Pair
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year warranty against defects in material and workmanship
Click to see our Full Warranty Policy.
For a list of similar items, see our Deltana, 2 Ball Bearings, Brass, Heavy Weight, 5 Knuckle, Full Mortise Hinge, 4.5" x 4.5"
-
QuickShipYes
-
ManufacturerDeltana Hardware
-
MPNDTSS45R4SB
- Product Design
-
Hinge CategoryFull Mortised Hinge
-
Base MaterialStainless Steel
-
Usage LevelResidential Grade
-
ThrowStandard Throw
-
Bearing TypeBall Bearing
-
Knuckles5 Knuckle Hinge
-
Pin TypeStandard Hinge Pin
-
Hinge Tip TypeButton Tip
-
Hinge Corner1/4" Radius Corner
-
Hole PatternCommercial "C" Pattern
-
Number of Holes9 Holes
-
- Dimensions
-
Hinge Size4-1/2" x 4-1/2"
-
Hinge Thickness0.134''
-
- Installation
-
Door TypeWooden Door, Metal Door
-
Installation ScrewsWooden Screws #12 x 1/4" Provided, Machine Screw #12x 1/2" Provided
-
- Finishes
-
FinishSatin Stainless Steel (US32D)
-
- Compliance Details
-
Warranty1 Year Limited Warranty
-
