Emtek 92025 Steel, Heavy Duty, Plain Bearing Hinge, 4.5" x 4.5", with 1/4" Radius Corners - PAIR

Emtek #92025 Heavy Duty, Steel Hinges will complement your door and ensure a matching finish to other Emtek Hardware.

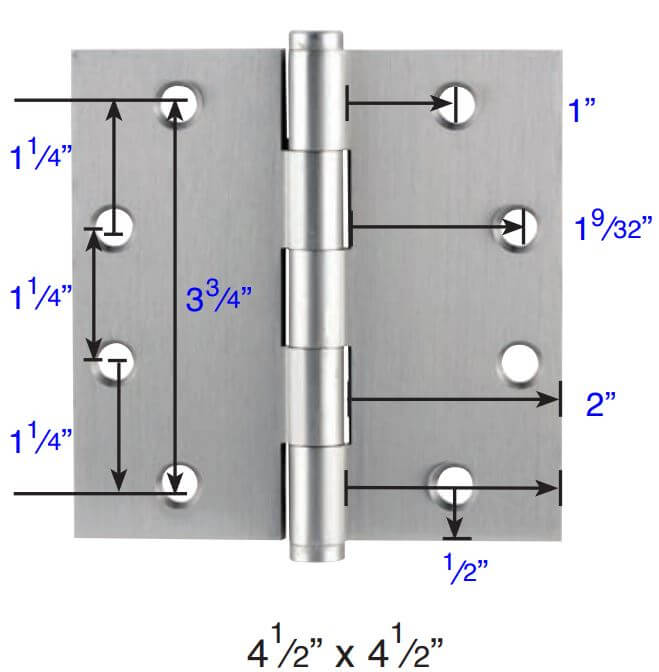

• Dimensions: 4.5" x 4.5"
• Thickness: 0.118" - 0.126" Thickness of Hinge Leaf
• Fasteners: #10 x 1” screws provided
• Material: Steel
• Screws Holes: 8
• Hole Pattern: "C-Shaped" template
• See specification tab for more information

About Heavy Duty Plain Bearing Hinges: Plain bearing hinges feature knuckles that move against each other without additional bearings. The Heavy Duty hinges have a thicker leaf than standard residential plain bearing hinges, they are designed for heavier residential use / light commercial use and not recommended for heavy traffic entryways. For heavy traffic, consider a Ball Bearing Hinge.

About the Material: Steel is a strong metal that is significantly cheaper than Solid Brass. Its superb strength makes it suitable for heavier doors. However, steel is not as durable as brass, as it will rust over time.

Installation: This hinge is fully mortised. Three hinges should be used on doors up to 90". Add one additional hinge per each additional 30" of door height.

Corners: This hinge is designed with a 1/4" radius corner, also popular for fully mortised hinges are square corner and 5/8" corner radius hinges.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

This product has a 5 year warranty on material and workmanship.
Click here to view our Full Warranty Policy.

See also our Emtek 92033 3.5" x 3.5" Residential Hinge with 5/8" Radius Corners
