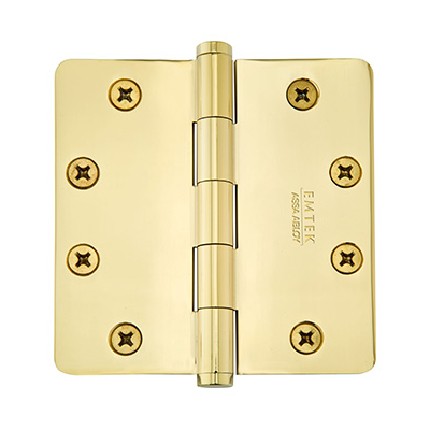

Emtek 96224 Brass Heavy Duty, Plain Bearing, 4" x 4", 1/4'' Radius Corner- PAIRS

Emtek #96224 Heavy Duty, Solid Brass, Plain Bearing Hinges will complement your door and ensure a matching finish to other Emtek Hardware.

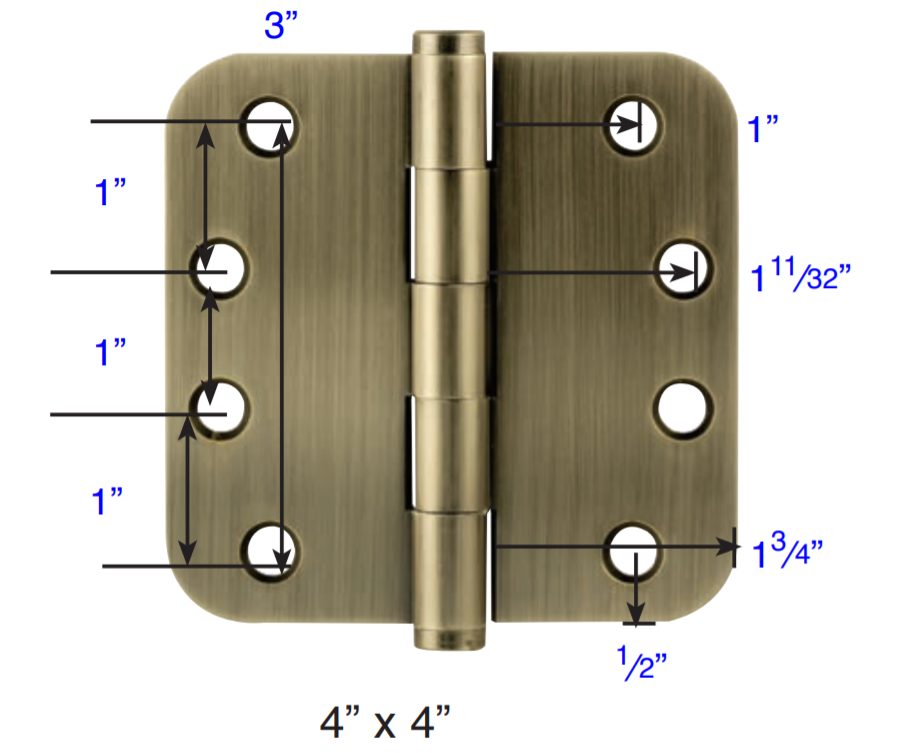

• Dimensions: 4" x 4"
• Thickness: 0.132"
• Fasteners: # 12 x 1 1/4 " Wooden Screws provided
• Material: Solid Brass
• Screw Holes: 8
• Priced and Sold in Pairs
• See specification tabs for additional information

About Heavy Duty Plain Bearing Hinges: Plain bearing hinges feature knuckles that move against each other without additional bearings. The Heavy Duty hinges have a thicker leaf than standard residential plain bearing hinges, they are designed for heavier residential use / light commercial use and not recommended for heavy traffic entryways. For heavy traffic, consider a Ball Bearing Hinge.

About the Material: Solid Brass is made of copper and zinc and is popular due to its aesthetics, resilience and durability. It is highly resistant to rusting and is available in a large variety of finishes. However it is significantly more expensive than its steel and stainless steel counterparts.

Installation: This hinge is fully mortised. Three hinges should be used on doors up to 90". Add one additional hinge per each additional 30" of door height.

Corners: This hinge is designed with a 1/4'' radius corner, also popular for fully mortised hinges are 5/8" radius hinges.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

This product has a 5 year warranty on material and workmanship.
Click here to view our Full Warranty Policy

See also our Emtek 96225 4.5" x 4.5" Heavy Duty Plain Bearing Hinge with 1/4" Radius.
