Emtek 96313 Brass, Square Barrel, Heavy Duty Hinge, 3.5" x 3.5" - SOLD IN PAIRS

Name: Emtek 96313 Brass, Square Barrel, Heavy Duty Hinge, 3.5" x 3.5" - SOLD IN PAIRS
Brand: Emtek
SKU: EM96313-US3NL
Price: 111.63 USD
Availability: InStock

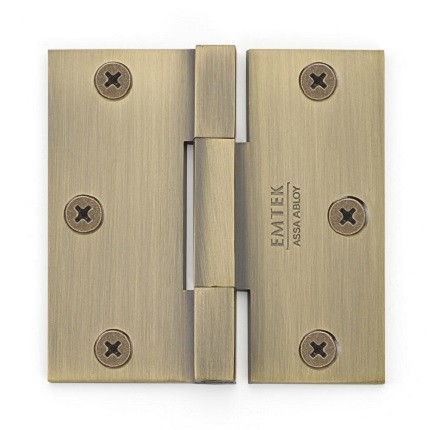

Emtek 96313 Solid Brass Hinge 3.5" x 3.5" - 613 FInish

Emtek #96313 Heavy Duty, Solid Brass, Square Barrel Hinges will complement your door and ensure a matching finish to other Emtek Hardware. The hinge barrel also features no exposed screws for an aesthetically clean look. Hinges are sized 3.5" x 3.5", and are available in selection of finishes.

PRICED PER PAIR

See tabs below for additional information

Quantity

Add to compare

Emtek #96313 Heavy Duty, Solid Brass Hinges will complement your door and ensure a matching finish to other Emtek Hardware.

Dimensions: 3.5" x 3.5"
Thickness: 0.125" Thickness of Hinge Leaf
Fasteners: #10 x 1” screws provided
Material: Solid Brass
Screws Holes: 6
Hole Pattern: C Shaped Template
Priced and Sold in Pairs
See specification tab for more information

About Heavy Duty Hinges: The Heavy Duty hinges have a thicker leaf than standard residential plain bearing hinges, they are designed for heavier residential use / light commercial use and not recommended for heavy traffic entryways. For heavy traffic, consider a Ball Bearing Hinge.

About the Material: Solid Brass is made of copper and zinc and is popular due to its aesthetics, resilience and durability. It is highly resistant to rusting and is available in a large variety of finishes. However it is significantly more expensive than its steel and stainless steel counterparts.

Installation: This hinge is fully mortised. Three hinges should be used on doors up to 90". Add one additional hinge per each additional 30" of door height.

Corners: This hinge is designed with a square corner, also popular for fully mortised hinges are 1/4" radius and 5/8" radius hinges.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

- Weight
  0.2 lbs
- SKU
  EM96313-US10B
QuickShip
No
Manufacturer
Emtek
MPN
96313
Product Design
- Hinge Category
  Full Mortised Hinge, Square Barrel Hinge
- Base Material
  Brass
- Usage Level
  Heavy Duty
- Throw
  Standard Throw
- Bearing Type
  Plain Bearing
- Knuckles
  3 Knuckle Hinge
- Pin Type
  Removeable Pin
- Hinge Tip Type
  Button Tip
- Hinge Corner
  Square Corner
- Hole Pattern
  Commercial "C" Pattern
- Number of Holes
  6 Holes
Dimensions
- Hinge Size
  3-1/2" x 3-1/2"
- Hinge Thickness
  0.125" Thick
Installation
- Door Type
  Wooden Door
- Installation Screws
  #9 x 3⁄4” Wooden Screws Provided
Special Features
- Square Barrel
  Yes
Finishes
- Finish

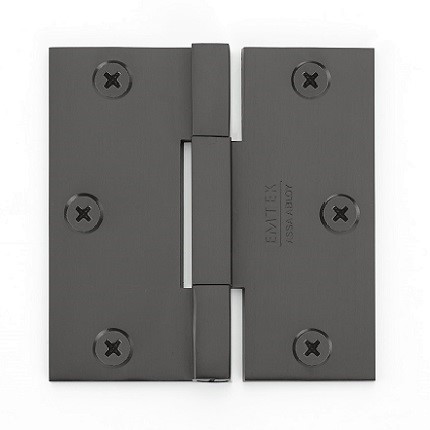

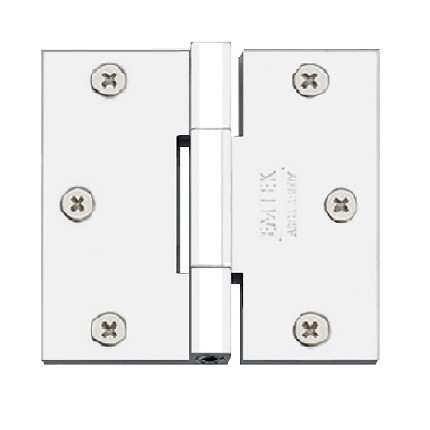

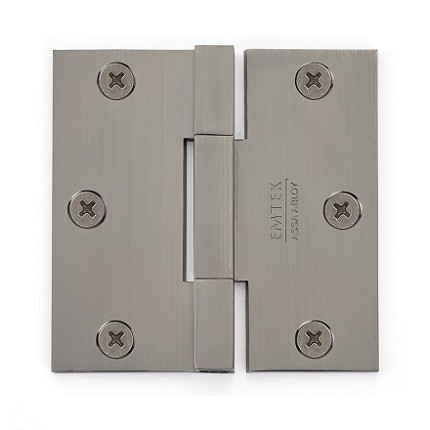

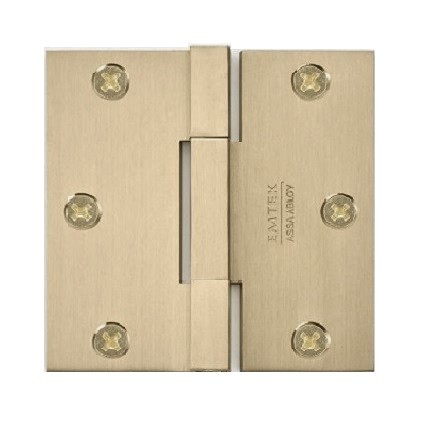

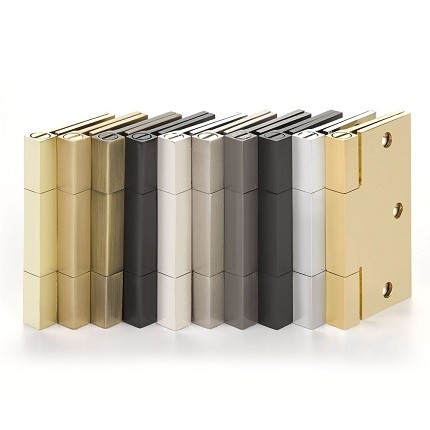

  Polished Brass (US3), Satin Brass (US4), French Antique (US7), Oil Rubbed Bronze (US10B), Polished Nickel (US14), Satin Nickel (US15), Pewter (US15A), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL)
Compliance Details
- Warranty
  5 Year Limited Warranty

Click to Print Emtek 3.5 Brass Square Barrel Hinge 89.4 kB

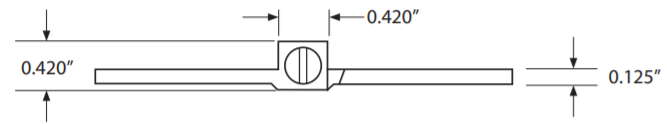

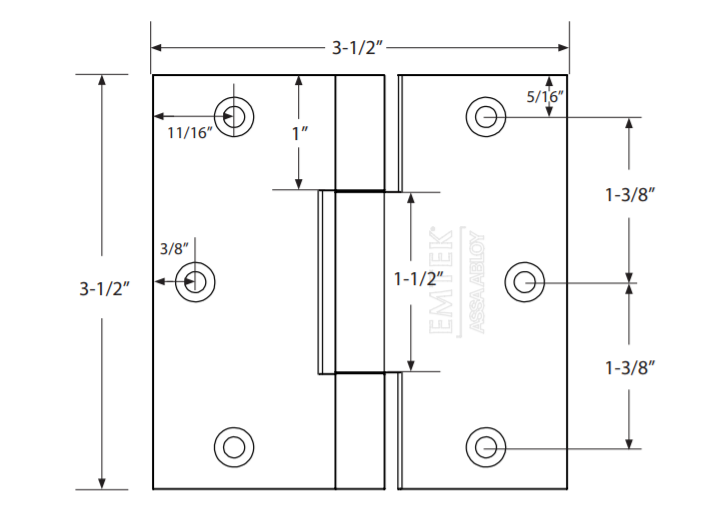

96313%202.png 96313-%20Specs.png
