Emtek Spoke Knob, Studio Brass Knobsets - Custom Option

This Contemporary doorknob is from the Studio Brass collection and will give any door a unique style. The Emtek Spoke Knob fits any door between 1-3/8” to 2-1/4" thick with a 2-1/8" bore standard door prep. Standard latch is for 2-3/8" backset. This knob set is sold as a complete set, it includes Latch and Strike Plate.

You can mix and match this lever set with different rosette styles, finishes, and functions for a more customized/personalized look.

Custom Options:

• Finish: selection of finishes available, select above

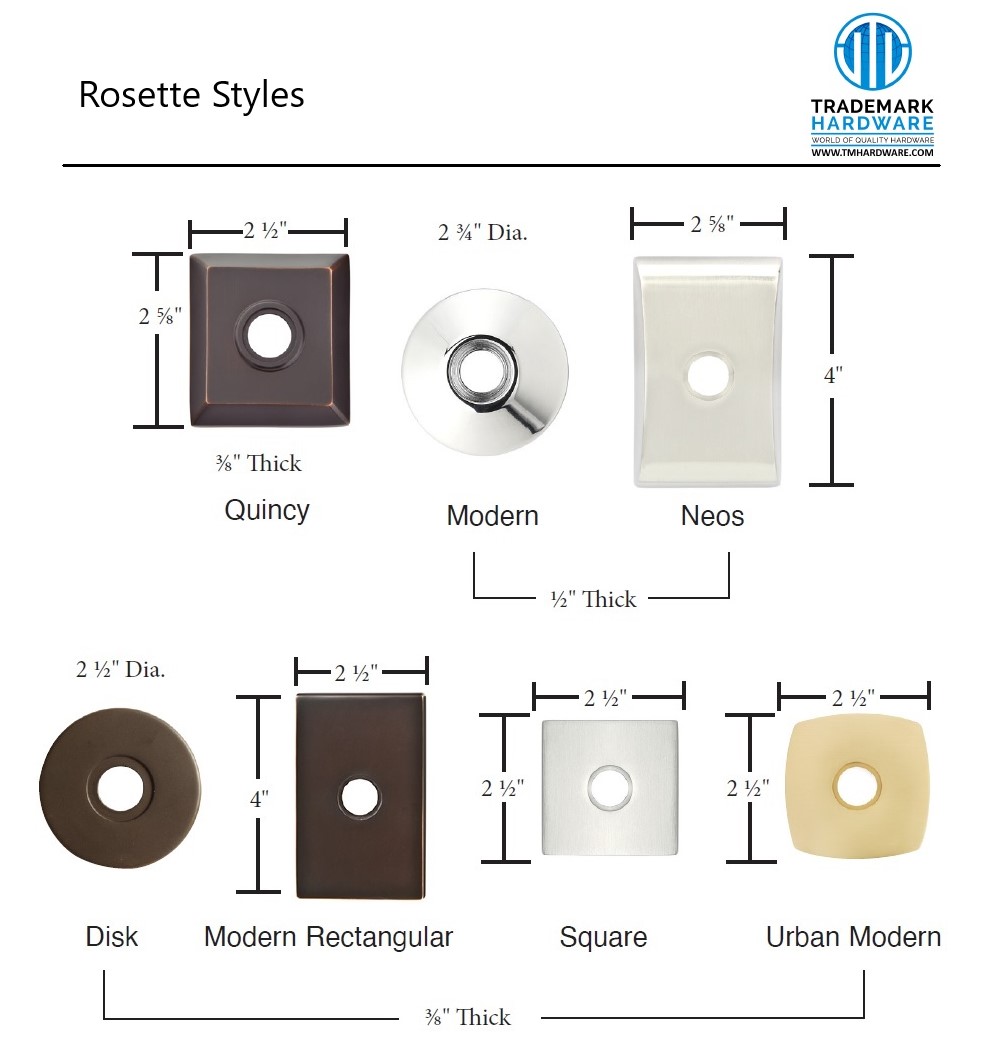

• Rosettes: selection of different rosette styles, select above. See the rosettes tab for images
• Functions: selection of different rosette styles, select above
• Handing: Reversible. (Notes: Handing is Required for Spoke Knob in Privacy Function, Split Finish and Split Style)
• 28° Rotation Latch: A latch that requires less rotation on the handle to disengage the latch. Useful for people with ergonomic concerns, like users who suffer from arthritis. Please click the checkbox to avail this option.
• Concealed Fasteners: this upgrade conceals screws on the interior rosette. This option comes with a 28° Rotation Latch. Please click the checkbox to avail this option.  (Note: The dummy function will have concealed fasteners on the exterior side only as a standard. Don't check this option when ordering the Dummy Function)

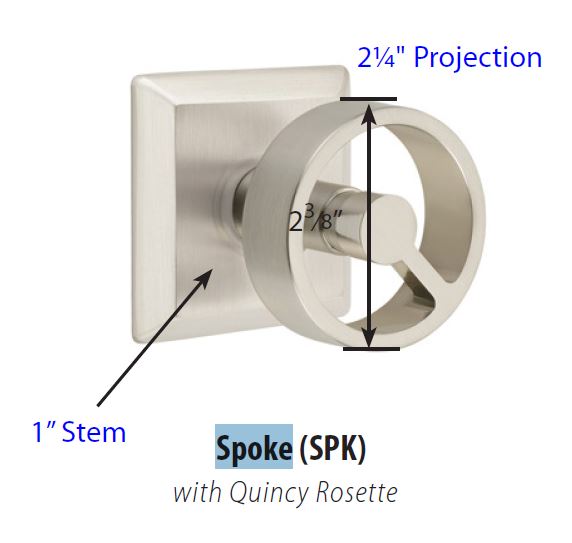

Specifications:

• Door thickness: 1-3/8"- and 1-3/4". For 2 inches and above, please contact customer service.
• Backset: comes with a 2-3/8" as a standard. Please use the checkbox above to change it to 2-3/4"
• Bore Hole: 2-1/8" diameter
• Cross Bore: 1"

Please note, images are for illustrative purposes only.  Actual colors may vary slightly and size may be enlarged to show detail.

PRICED PER UNIT

This product has a lifetime limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

Click to view our Emtek Spoke Knob on Modern Rosette.
