Falcon 25-CWDC-EO Concealed Vertical Rod Exit Device, Heavy Traffic Applications, Wood Doors - Exit Only
Falcon 25-CWDC-EO heavy duty, concealed vertical rod exit device with Exit Only Function for high traffic applications. Grade 1, made with extruded aluminum construction to deliver greater strength and impact resistance. Available in a variety of finishes and trims.
PRICED PER PIECE - See full product details and specs in the tabs below.
Falcon Heavy-Duty 25-CWDC-EO Series Exit Device with concealed vertical rod for panic and fire-rated applications.
Options:

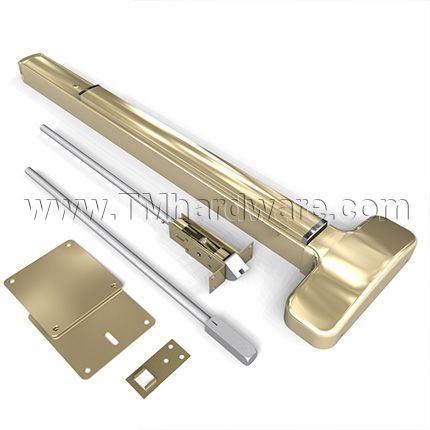

- 25-CWDC-EO Exit Device with Concealed Vertical Rod.
- F-25-CWDC-EO Exit Device with Concealed Vertical Rod for Fire-Rated Applications
- Click here to view Falcon 25-CWDC Concealed Vertical Rod Exit Device with Cylindrical Functions and Trims.

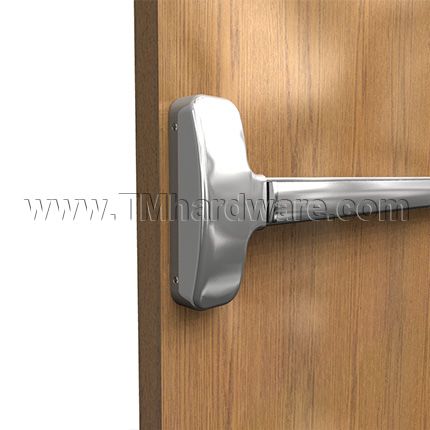

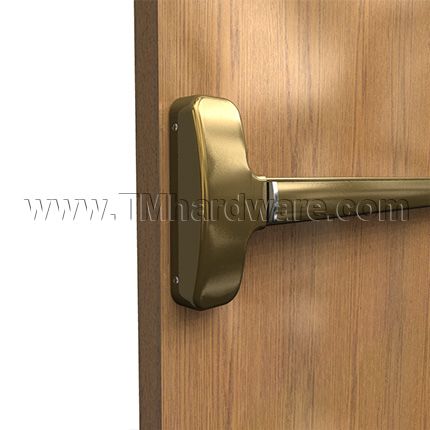

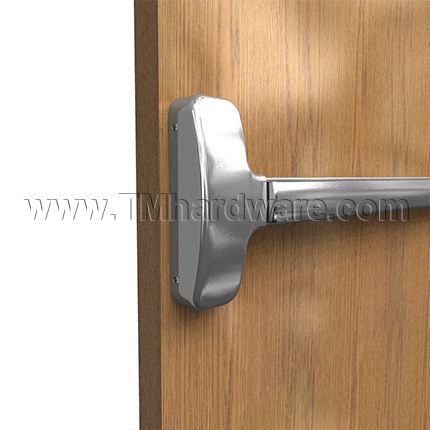

Finishes: Available in a choice of 9 finishes options: US28, US32D, 313AN, US26D, US26, US32, US10, US4 and US3. 313AN finish will be provided in trims with SP313 finish.
Device Size: Choose from 3 size options; For door up to 24", 36" (33" device) or 48" (45" device) wide. Device can be easily cut to size on the field.
Applications: For high traffic applications including offices, retail, healthcare, churches and educational facilities. Can be used on exterior, interior, new construction and retro-fit applications.
Design: Sleek architectural design with streamlined touch bar and no exposed screws or rivets on the back of the device. Scratch-resistant stainless steel pushpad cover and flush end caps. Patent pending deadlocking technology built into device. Center case is heavy wrought with sintered metal parts.

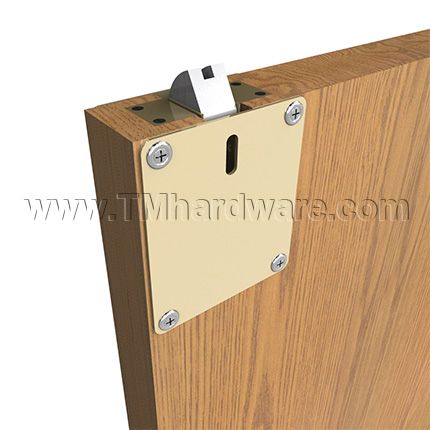

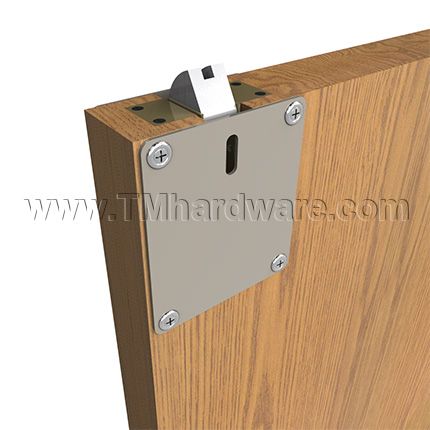

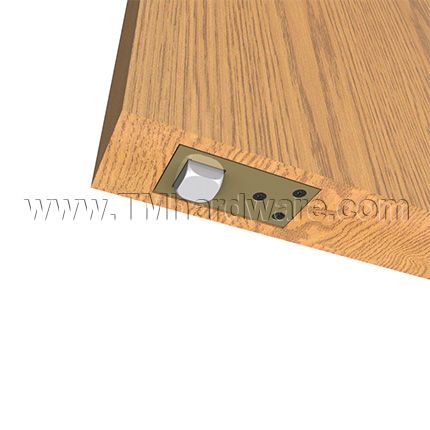

Latchbolt: Top stainless steel, 3/4" throw. On 25-CWDC, bottom bolt 1/2" throw.
Handing: Specify Right Hand Reverse (RHR) or Left Hand Reverse (LHR). To determine door handing see our How To Determine Door Handing and Swing.
Door Type: For wood doors.
Door Thickness: For 1 3/4" thick doors, specify if other.
Mounting Height: Furnished to length based on 40 1/4" horizontal centerline to finished floor. Variations to centerline must be specified in order comments. Please select height in tabs above and extension rods will be furnished to length.
Stile: 6 1/2" minimum on wood doors.
Projections: 2 3/4" maximum, 2" dogged.
Strikes: 4188 mortised top. 2130 bottom standard, 4155 and 2126A bottom optional. For F-25-CWDC, 1279 standard, F1280 optional, B label (1 1/2 hr.)
Dogging Feature: Half turn hex dogging standard. No threaded parts to wear out. Cylinder dogging available upon request (uses 1 1/8" mortise cylinder with standard cam.)
Fasteners: All mounting screws are concealed, sheet metal screws standard. Machine screws available upon request.
Installation: Simple to install, All mounting hardware included. See Installation Tab below.
UL Listed: "A" label (3 hr.) : 4'0" x 10'0" single doors; 8'0" x 10'0" pair of doors (F-25-M x F-25-V or F-25-C). "B" label (1 1/2hr) with F1280 open back strike.
ANSI: Certified ANSI A156.3-2001 grade 1 standards.
Electric Functions: Can be interfaced with building security systems. Latch retraction, FSA/FSE trim, security monitoring, delayed egress and exit alarm available (EL fail-secure only). Subject to code requirements, state and local.
Additional Options: Including shim kits for glass lite applications, mullions and cylinders are available through our office. To order please contact us or call our office at 845-388-1300.
Priced per piece
This product has a 10 year warranty against defects in workmanship and materials.
Click here to view our Full Warranty Policy.
Click here to view our Falcon 25-M Exit Device with Mortise Lock.
-
QuickShipNo
-
ManufacturerFalcon
-
MPN25-CWDC-EO; F-25-CWDC-EO
-
Product OptionsExit Device 25-CWDC, Fire-Rated Exit Device F-25-CWDC
-
Finish OptionsBright Brass #US3, Satin Brass #US4, Satin Bronze #US10, Bright Chrome #US26, Satin Chrome #US26D, Anodized Aluminum #US28, Bright Stainless Steel #US32, Satin Stainless Steel #US32D, Anodized Duranodic #313AN
-
HandingRight Hand Reverse (RHR), Left Hand Reverse (LHR)
-
Door Height7' Height (Standard), 8' Height, 9' Height, 10' Height
Click to print Installation Instructions for Falcon 25-CWDC Exit Device.
