Falcon B301 Privacy/Bedroom/Bath Lock, Grade 2, Cylindrical Door Lock

Falcon B Series Grade 2 Cylindrical Lever-Dane in US26 finish
Falcon

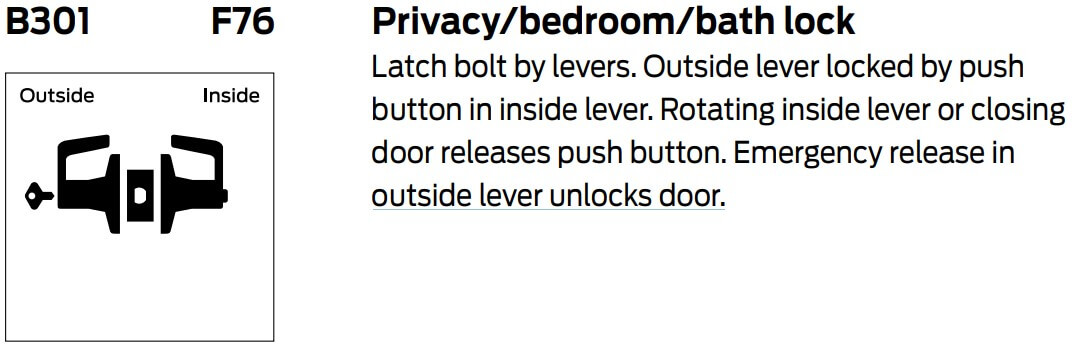

Falcon B301 Privacy/Bedroom/Bath Lock latch bolt by levers. Outside lever locked by push button in inside lever. Rotating inside lever or closing door releases push button. Emergency release in outside lever unlocks door. Standard B Series Lock is provided with, door thickness 1-3/8" to 2", backset 2-3/4". Options of finishes, lever styles.

PRICED PER SET

See tabs below for additional information
    • SKU
      FLB301-DAN-626
    • Market price:$252.00
      • save 35%
    • Starting price: Price: $163.80 per item


    Click here to view the Falcon B Series from the Falcon Full Line Catalog


    Falcon B301 Privacy/Bedroom/Bath Lock latch bolt by levers. Outside lever locked by push button in inside lever. Rotating inside lever or closing door releases push button. Emergency release in outside lever unlocks door. Standard B Series Lock is provided with, door thickness 1-3/8" to 2", backset 2-3/4". Options of finishes, lever styles.

    Handing: Non-Handed

    Lever: Lever trim have individual heavy-duty springs behind rose for lever return and to prevent lever sag.

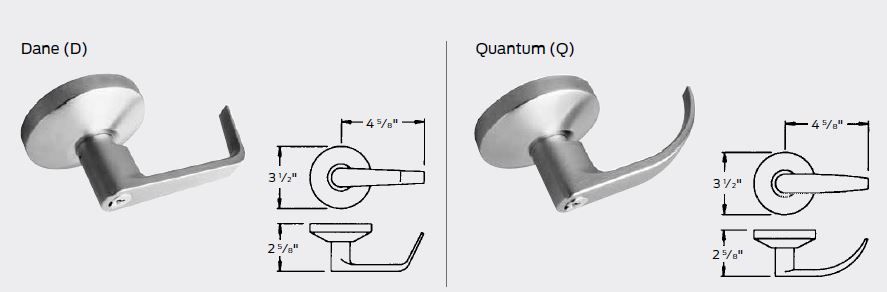

    Lever Style: Dane or Quantum, choose from options above.

    Finishes: See options above, See Falcon Finish Chart for a detailed list of Falcon's finishes.

    Trim: Trim is through bolted with four (4) screws to provide strength and resistance to loosening.

    Rose: Roses are minimum of 3-1/2" diameter.

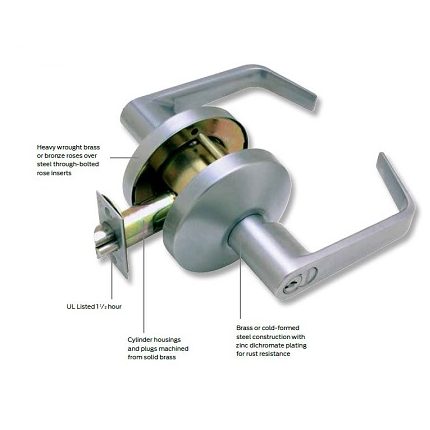

    Material: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.

    Screws: Furnished with combination screws for use in wood or metal doors and frames.

    Door Thickness: 1-3/8" to 2"

    Backset: 2-3/4" standard. 2-3/8" also available through our office.

    Latch:

    • 1/2" throw-standard. (option of 3/4" projection through our office)
    • 1-1/8" x 2-1/4" square corner faceplate.
    • 1" housing diameter
    • Deadlocking latches have a solid round bar stock DL bar preventing latch jamming and/or lock outs

    Strike: 1-1/4" x 4-7/8", ANSI, Square curved lip corner, no box

    Options available through our office only:

    • Additional latches and strikes
    • Additional Dustboxes
    • Abrasive Strip Levers-to identify entrances that may be hazardous to the handicapped.

    Installation:

    • Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose mounting assembly

    Compliance Details:

    • All lever designs are solid (no inserts) and meet the federal ADA and state disability requirements
    • All locks meet the new ANSI/BHMA A156.2, Series 4000, Grade 2 test requirements for key-in-lever locksets.
    • Locksets are be UL Listed (3 hour A Label)
    • See Compliance Details Tab for corresponding ANSI numbers

    Priced Per Set.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. Template is not drawn to scale. Accurately scaled template will be supplied with your order.

    Product has a 1 year warranty against defects in material and workmanship
     Click to view our Full Warranty Policy.

    Click here to View Falcon T-Series Cylindrical Lever, Grade 1, Extra Heavy Duty

      • SKU
        FLB301-DAN-626
    • QuickShip
      No
    • Manufacturer
      Falcon
    • MPN
      B301
    • Lever
      Dane, Quantum
    • Finishes
      • Finish
        Satin Chrome Plated (626), Bright Brass (605), Satin Brass (606), Oil Rubbed Bronze (613), Bright Chrome (625)

    Finishes Comply with the following ANSI/BHMA Codes:

    • Bright Brass - US3/605
    • Satin Brass - US4/606
    • Oil Rubbed Bronze - US10B/613
    • Bright Chrome - US26/625
    • Satin Chrome - US26D/626


    *All locks shall meet the new ANSI/BHMA A156.2, Series 4000, Grade 2 test requirements for key-in-lever locksets.

    *Locksets shall be UL Listed 3-hour, A Label

    *All lever designs shall be solid (no inserts) and meet the federal ADA and state disability requirements
