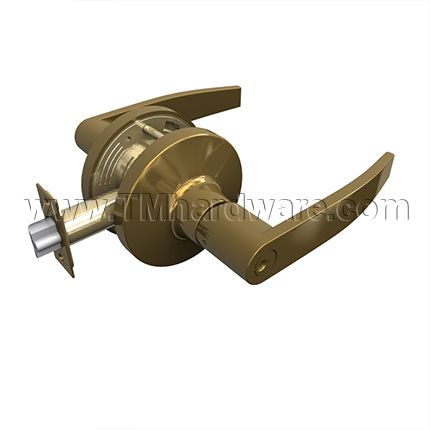

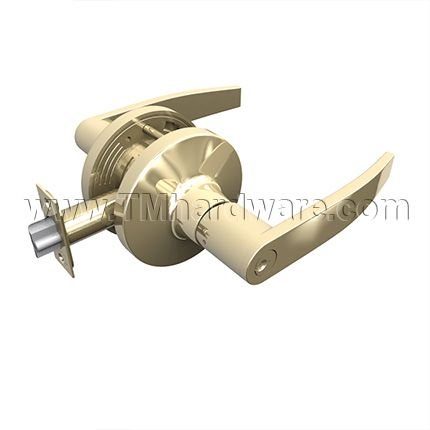

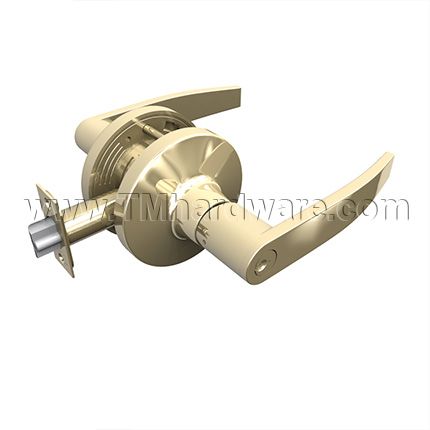

Falcon T Series Grade 1 Heavy Duty Commercial Door Lock - Keyed, Passage, Privacy or Dummy
Falcon T Series Grade 1 Extra Heavy Duty lock is designed with a compression spring behind the cylinder for added strenth, and Pressure Release™ for lever sag elimination. Product by default supplied with door thickness 1-3/4"-2-1/8", with a backset of 2-3/4", and 6-Pin, Solid brass, Keyed 5-Pin, Falcon G keyway, Keyed different (KD) cylinder. Many options of levers, functions and finishes available.
PRICED PER SET-See full product details in tabs below
Click here to view the Falcon T Series from the Falcon Full Line Catalog
Extra Heavy Duty, Commercial, Grade 1
Handing: Non-Handed
Lever:
- Lever trim have individual heavy-duty compression springs behind rose for lever return and to prevent lever sag.
- Locksets are provided with Pressure Release™ feature. When outside lever is locked, it is not rigid but will move freely without operating the latch bolt.
Lever Style:

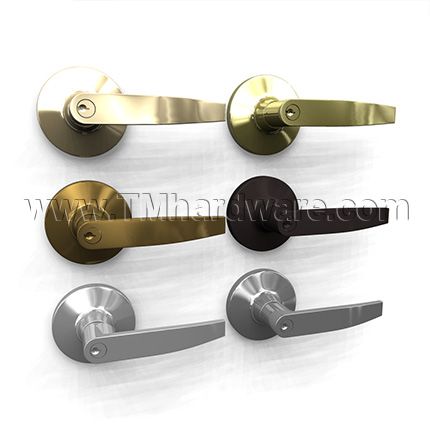

- 7 styles available, choose from options above.
- No Exposed Mounting Screws
Finishes: See options above, See Falcon Finish Chart for a detailed list of Falcon's finishes.
Split Finishes: Lock can be purchased with one finish for the outside section of the lock and another for the inside. (Available through our office.)
Material: Chassis of brass or cold formed steel, Levers are zinc plated and dichromated for rust resistance. Springs are stainless steel.
Trim: Roses are heavy wrought brass or bronze, installed over pressure cast rose inserts which are through-bolted through door. Levers are pressure cast (solid levers–no inserts) material finished to match mating parts.
Screws: Furnished with combination screws for use in wood or metal doors and frames.
Keys: Two, Nickel silver cut keys per lock
Keyway: Falcon G keyway on Conventional Cylinders, A Keyway on IC Cores
Additional Keying Options: Additional keying options and keyways available through our office.
Cylinder / Core: Housing and plugs machined from Solid Brass, Springs are phospor Bronze. 6-Pin Chambers, Keyed 5-Pin, Falcon G keyway, Keyed different (KD), Cylinder assemblies removable to rekey.
Interchangeable Cores: (Can be purchased through our office) Falcon T Series accepts the following competitors interchangeable cores: Arrow, Best, Corbin Russwin, Medeco Keymark, Medeco 32 Series, Peaks (Kaba), Primus (Schlage), Sargent, Schlage, Yale
Additional Cylinder Options: (Can be purchased through our office.)
- Keyed 6-Pin or 7-Pin
- Construction Cores
- Small Format Interchangeable Core (SFIC), Uncombinated or Combinated
- Large Format Interchangeable Core (LFIC)
Door Thickness: 1-3/4" to 2-1/8" standard. (Thin door adapter kit (A30775-000-00) available for doors thinner than 1-3/4", through our office.)
Backset: 2-3/4" standard. (2-3/8" and Link (A22161-005-10) for 5" backset available through our office.)
Latch:
- 1/2" throw-standard. (option of 3/4" projection through our office)
- 1-1/8" x 2-1/4" square corner faceplate.
- 1" housing diameter
- Deadlocking latchbolt-prevents manipulation when door is closed; keyed functions only.
Strike: 1-1/4" x 4-7/8", ANSI, Square corner, no box
Functions:
- Non-Keyed Functions: T12-Dummy Trim, T101-Passage, T301-Privacy
- Keyed Functions: T351-Closet, T381-Classroom Security, T411-Asylum, T501-Entry, T511-Entry/Office, T521-Office, T561-Classroom, T571-Dormitory, T581-Storeroom, T851-Storeroom (Electrified-Fail Safe), T881-Storeroom (Electrified-Fail Secure)
All Keyed Functions Include a clutching feature that allows the lever to freely rotate up or down while remaining locked. - See T Series Lever Functions for more information
Options available through our office only:
- Lock can be purchased with one finish for the outside section of the lock and another for the inside.
- Abrasive Lever Coating
- Additional latchbolts and strikes
- Dust Boxes
- Keyed Alike
- Additional Keys
- Large Bow Keys
Installation:

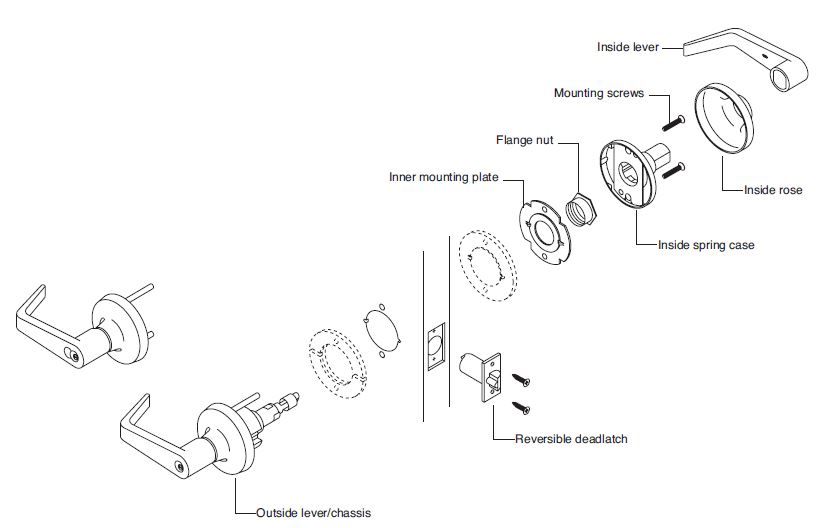

- Lock chassis secured to door by threaded mounting nuts. Completely preassembled outer trim and inner spindle assembly are through-bolted over chassis using (2) 10-32 screws. Adding rose and lever to inner spindle assembly completes installation.
Compliance Details:
- All locks meet the new ANSI/BHMA A156.2, Series 4000, Grade 1 for key-in-lever locksets.
- Locksets are UL Listed (3 hour A Label)
- See Compliance Details Tab for corresponding ANSI numbers
Priced Per Set.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. Template is not drawn to scale. Accurately scaled template will be supplied with your order.
Product has a 1 year warranty against defects in material and workmanship
Click to view our Full Warranty Policy.
Click here to see Hager 3400 Series Grade 1 Cylindrical Lever
-
QuickShipNo
-
ManufacturerFalcon
-
MPNT Series
-
LeverAvalon, Dane, Quantum, Boardwalk, Broadway, Latitude, Longitude
-
FunctionPassage, Privacy, Closet, Classroom Security, Asylum, Entry, Entry / Office, Office, Classroom, Dormitory, Storeroom, Dummy
- Finishes
-
FinishPolished Brass (US3), Satin Brass (US4), Oil Rubbed Bronze (US10B), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Satin Chrome (US26D), Aged Bronze (US11E)
-
Finishes comply with the following ANSI/BHMA Codes:
- Bright Brass -US3/605
- Satin Brass -US4/606
- Oil Rubbed Bronze -US10B/613
- Satin Nickel -US15/619
- Bright Chrome -US26/625
- Satin Chrome -US26D/626
- Aged Bronze -US11/643E
Functions comply with the following ANSI codes:
- Passage (Non-Keyed) / F75
- Privacy (Non-Keyed) / F76
- Classroom Security Lock / F88
- Asylum / F87
- Entry Lock / F82
- Entry Office Lock / F109
- Office Lock / F81
- Classroom Lock / F84
- Dormitory / F90
- Storeroom Lock / F86
*All locks shall meet the new ANSI/BHMA A156.2, Series 4000, Grade 1 for key-in-lever locksets.
*Locksets shall be UL Listed (3 hour A Label)
*All lever designs shall be solid and meet the federal ADA and state disability requirements.
