Falcon T101 Passage/Closet Latchset. Grade 1 Heavy Duty, Cylindrical Door Lock

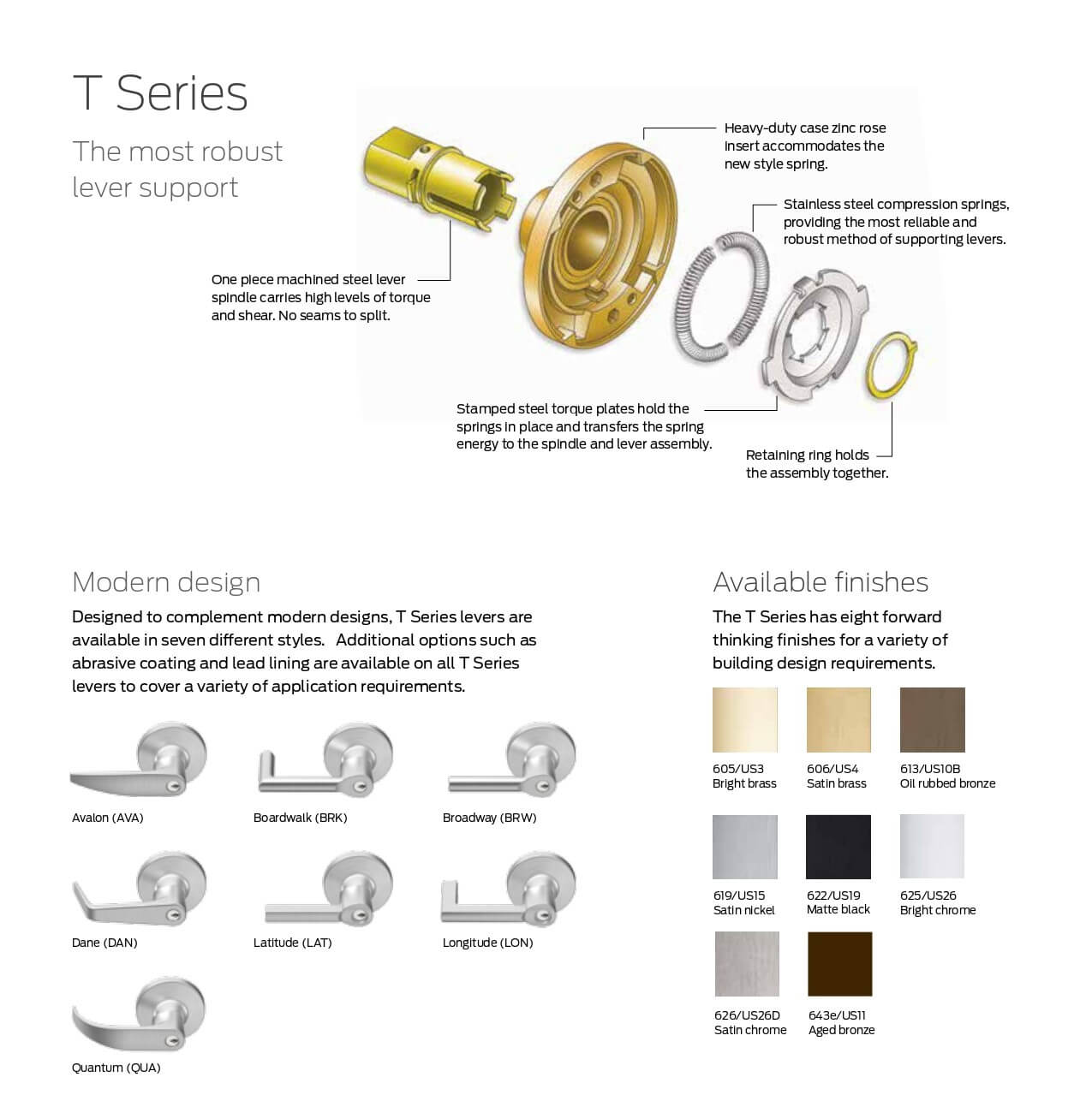

Click here to view the Falcon T Series from the Falcon Full Line Catalog

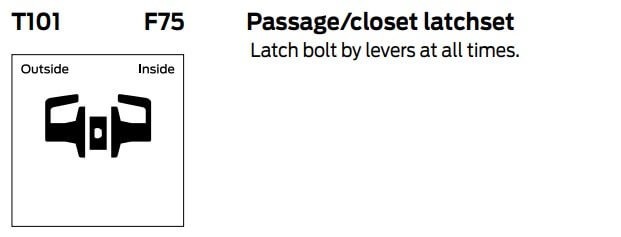

Falcon T101 Passage/Closet Latchset latch bolt by levers at all times. Product by default supplied with door thickness 1-3/4"-2-1/8", with a backset of 2-3/4".

Extra Heavy Duty, Commercial, Grade 1

Handing: Non-Handed

 Lever Style:

• 7 styles available, choose from options above.
• No Exposed Mounting Screws

Finishes: See options above, See Falcon Finish Chart for a detailed list of Falcon's finishes.

Split Finishes: Lock can be purchased with one finish for the outside section of the lock and another for the inside. (Available through our office.)

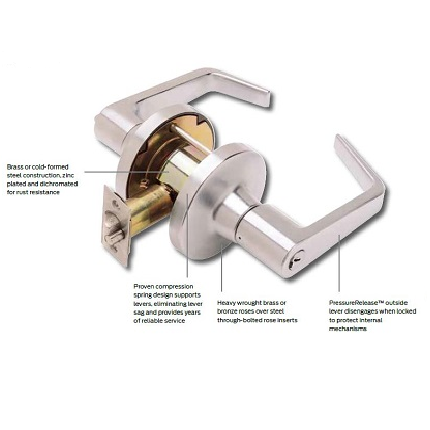

Material: Chassis of brass or cold formed steel, Levers are zinc plated and dichromated for rust resistance. Springs are stainless steel.

Trim: Roses are heavy wrought brass or bronze, installed over pressure cast rose inserts which are through-bolted through door. Levers are pressure cast (solid levers–no inserts) material finished to match mating parts.

Screws: Furnished with combination screws for use in wood or metal doors and frames.

Door Thickness: 1-3/4" to 2-1/8" standard. (Thin door adapter kit (A30775-000-00) available for doors thinner than 1-3/4", through our office.)

Backset: 2-3/4" standard. (2-3/8" and Link (A22161-005-10) for 5" backset available through our office.)

Latch:

• 1/2" throw-standard. (option of 3/4" projection through our office)
• 1-1/8" x 2-1/4" square corner faceplate.
• 1" housing diameter
• Deadlocking latchbolt-prevents manipulation when door is closed; keyed functions only.

Strike: 1-1/4" x 4-7/8", ANSI, Square corner, no box

Options available through our office only:

• Abrasive Lever Coating
• Additional latchbolts and strikes
• Dust Boxes
• Large Bow Keys

Installation:

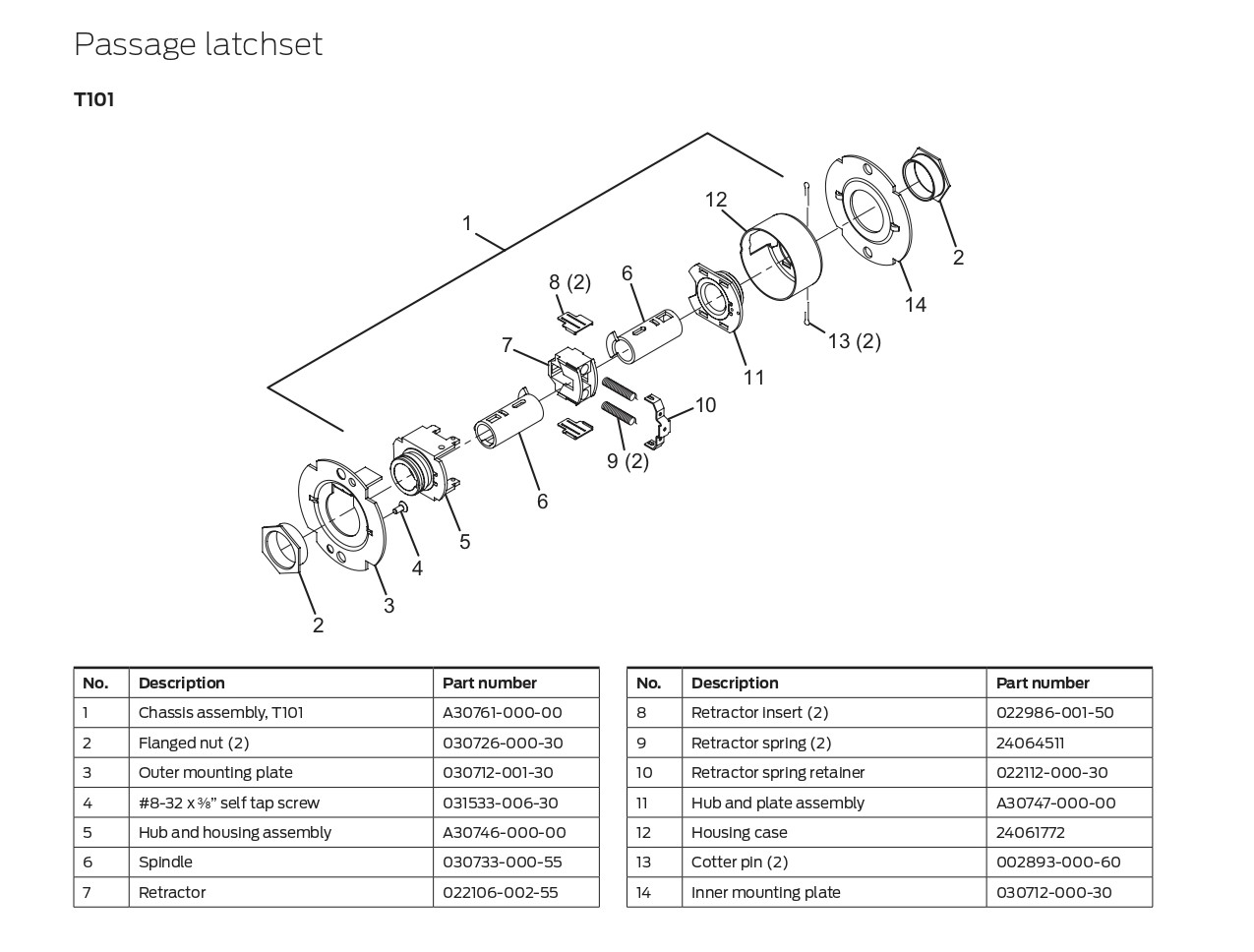

• Lock chassis secured to door by threaded mounting nuts. Completely preassembled outer trim and inner spindle assembly are through-bolted over chassis using (2) 10-32 screws. Adding rose and lever to inner spindle assembly completes installation.

Compliance Details:

• All locks meet the new ANSI/BHMA A156.2, Series 4000, Grade 1 for key-in-lever locksets.
• Locksets are UL Listed (3 hour A Label)
• See Compliance Details Tab for corresponding ANSI numbers

Priced Per Set.

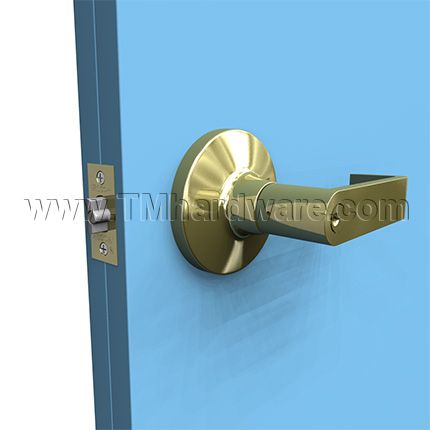

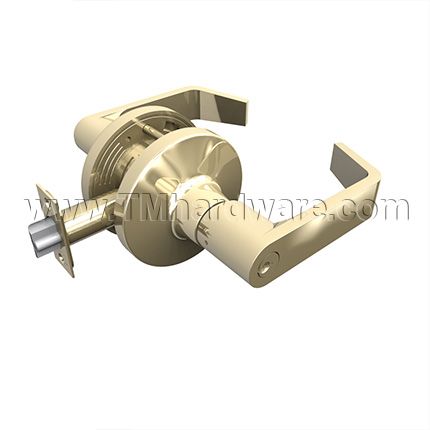

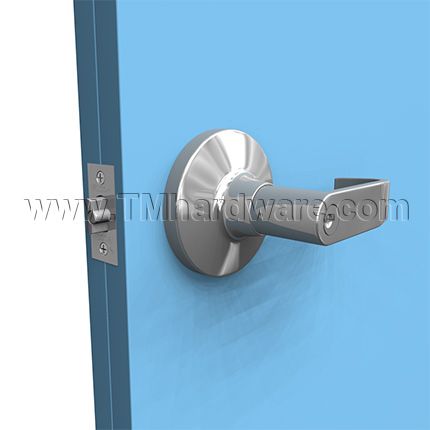

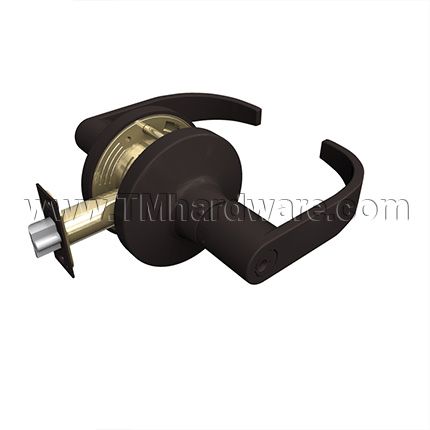

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. Template is not drawn to scale. Accurately scaled template will be supplied with your order.

Product has a 1 year warranty against defects in material and workmanship
