Falcon W12 Single Dummy Trim, Grade 2

Falcon W12 Single Dummy Trim, Grade 2
Falcon

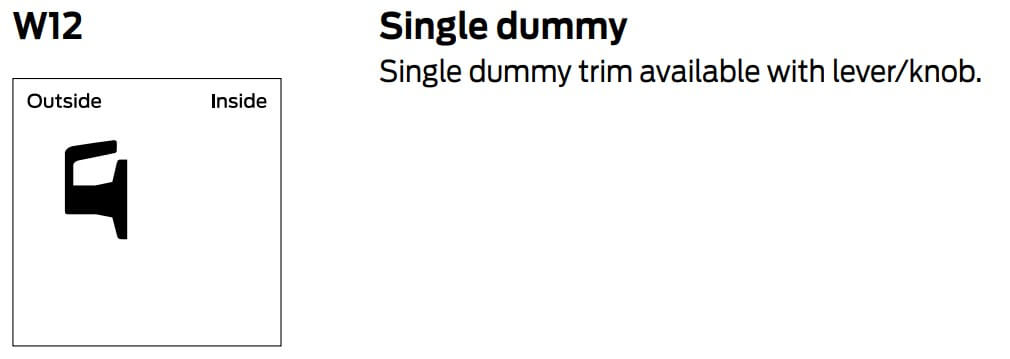

Falcon W12 Single dummy. Single dummy trim available with lever/knob 3-3/8" rose. Variety of finishes,lever and knob styles are available.

PRICED PER ITEM-See full product details and specs in tabs below

See tabs below for additional information
    • SKU
      FLW12-ELI-626
    • Market price:$60.90
      • save 30%
    • Starting price: Price: $42.63 per item


    Click here to view the Falcon W Series from the Falcon Full Line Catalog

    Falcon W12 Single dummy. Single dummy trim available with lever/knob 3-3/8" rose. Variety of finishes,lever and knob styles are available.

    Handing: Non-Handed

    Lever and Knob Style: 7 levers and 2 Knob Styles to choose from, Choose from options above.

    Finishes: See options above, See Falcon Finish Chart for a detailed list of Falcon's finishes.

    Trim: Roses are heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door.

    Rose Dimensions:

    • Standard rose diameter: 3-3/8"
    • Small rose diameter: 2 -9/16"

    Material: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.

    Screws: Furnished with combination screws for use in wood or metal doors and frames.

    Abrasive strip levers: Dane, and Quantum levers are available with an abrasive strip along the inside length of the lever to identify entrances that may be to areas hazardous to the handicapped. (Can be purchased through our office.)

    Installation:

    • Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose mounting assembly, and two screws that screw into the chassis assembly.

    Compliance Details:

    • All locks shall meet ANSI/BHMA A156.2, Series 4000, Grade 2 test requirements for key-in-lever locksets.
    • Locksets shall be ULListed (3 hour A Label)
    • See Compliance Details Tab for corresponding ANSI numbers

    Priced Per Item.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. Template is not drawn to scale. Accurately scaled template will be supplied with your order.

    Product has a 1 year warranty against defects in material and workmanship
     Click to view our Full Warranty Policy.

    Click here to see T-Series Grade 1 Extra Heavy Duty Cylindrical Lever

      • SKU
        FLW12-ELI-626
    • Series
      W Series
    • QuickShip
      No
    • Manufacturer
      Falcon
    • MPN
      W12
    • Rose
      Standard Rose, Smal Rose
    • Lever / Knob
      Avalon Lever (AVA), Dane Lever (DAN), Quantum Lever (QUA), Boardwalk Lever (BRK), Broadway Lever (BRW), Latitude Lever (LAT), Longitude Lever (LON), Elite Knob (ELI), Hana Knob (HAN)
    • Finishes
      • Finish
        Satin Chrome Plated (626), Aged Bronze (643e), Bright Brass (605), Satin Brass (606), Oil Rubbed Bronze (613), Satin Nickel Plated (619), Flat Black (622), Bright Chrome (625)

    Finishes Comply with the following ANSI/BHMA Codes:

    • Bright Brass - US3/605
    • Satin Brass - US4/606
    • Oil Rubbed Bronze - US10B/613
    • Aged Bronze - US11/643E
    • Satin Nickel - US15/619
    • Matte Black - US19/622
    • Bright Chrome - US26/625
    • Satin Chrome - US26D/626

    Functions comply with the following ANSI codes:

    • Passage (Non-Keyed) / F75
    • Privacy (Non-Keyed) / F76
    • Entry / F82
    • Entry / Office / F109
    • Classroom Lock / F84
    • Storeroom Lock / F86

    *All locks shall meet ANSI/BHMA A156.2, Series 4000, Grade 2 test requirements for key-in-lever locksets

    *Locksets shall be UL Listed 3-hour, A Label
