Falcon W301 Privacy Lock, Grade 2, Cylindrical Door Lock

Click here to view the Falcon W Series from the Falcon Full Line Catalog

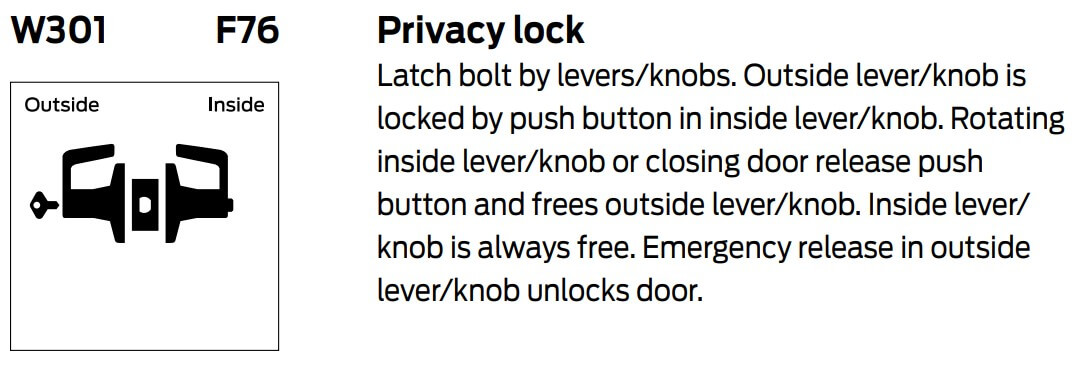

Falcon W301 Privacy Lock latch bolt by levers/knobs. Outside lever/knob is locked by push button in inside lever/knob. Rotating inside lever/knob or closing door release push button and frees outside lever/knob. Inside lever/ knob is always free. Emergency release in outside lever/knob unlocks door. W Series Locks are provided with a door thickness of 1-3/8"-1-3/4", backset 2-3/4", and 3-3/8" rose. Variety of finishes, lever and knob styles are available.

Handing: Non-Handed

Lever and Knob Style: 7 levers and 2 Knob Styles to choose from, Choose from options above.

Finishes: See options above, See Falcon Finish Chart for a detailed list of Falcon's finishes.

Trim: Roses are heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door.

Rose Dimensions:

• Standard rose diameter: 3-3/8"
• Small rose diameter: 2 -9/16"

Material: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.

Screws: Furnished with combination screws for use in wood or metal doors and frames.

Abrasive strip levers: Dane, and Quantum levers are available with an abrasive strip along the inside length of the lever to identify entrances that may be to areas hazardous to the handicapped. (Can be purchased through our office.)

Door Thickness: 1-3/8" to 1-3/4"

Backset: 2-3/4" standard; 2-3/8" also available through our office.

Latch:

• 1/2" throw-standard.
• 1-1/8" x 2-1/4" square corner faceplate.
• 1" housing diameter
• Latches have selfadjusting fronts to accommodate beveled or flat doors.

Strike: 1-1/4" x 4-7/8", ANSI, Square curved lip corner, no box

Options available through our office only:

• Additional latches and strikes
• Additional Dustboxes

Installation:

• Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose mounting assembly, and two screws that screw into the chassis assembly.

Compliance Details:

• All locks shall meet ANSI/BHMA A156.2, Series 4000, Grade 2 test requirements for key-in-lever locksets.
• Locksets shall be ULListed (3 hour A Label)
• See Compliance Details Tab for corresponding ANSI numbers

Priced Per Set.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. Template is not drawn to scale. Accurately scaled template will be supplied with your order.

Product has a 1 year warranty against defects in material and workmanship
