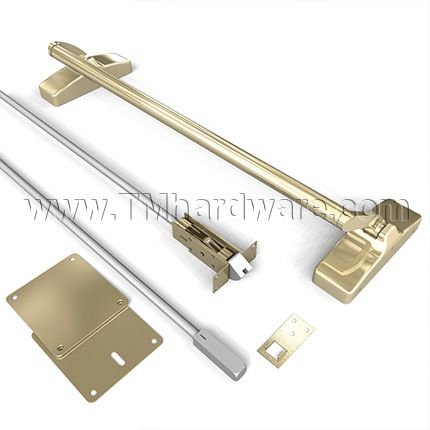

Falcon XX-CWDC-EO Concealed Vertical Rod Crossbar Exit Device, Wood Doors - Exit Only
This product has been discontinued. For a similar product, please see our Falcon 1990 Series, Concealed Vertical Rod Crossbar Exit Device.
Concealed Vertical Rod Exit Device with two point latching for high traffic installations.
Product Options:
- XX-C-WDC-EO Crossbar Exit Device with concealed vertical rods.
- F-XX-C-WDC-EO Fire-Rated Crossbar Exit Device with concealed vertical rods, UL Listed.
- Click to view our Falcon XX-C-WDC Concealed Vertical Rod Crossbar Exit Device with Cylindrical Functions and Trims.Â
Applications: Concealed vertical rod exit device with traditional crossbar design and two point latching with patented center slide for ease of adjustment.
Handing: Specify Right Hand Reverse (RHR) or Left Hand Reverse (LHR). To determine door handing see our How To Determine Door Handing and Swing.Â

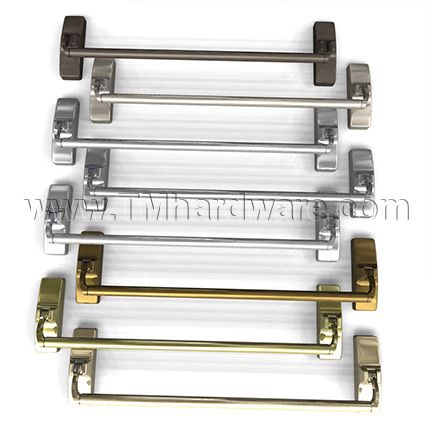

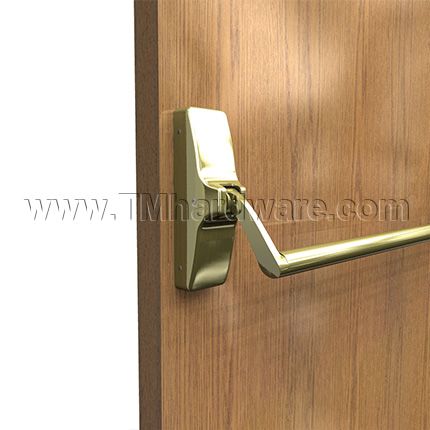

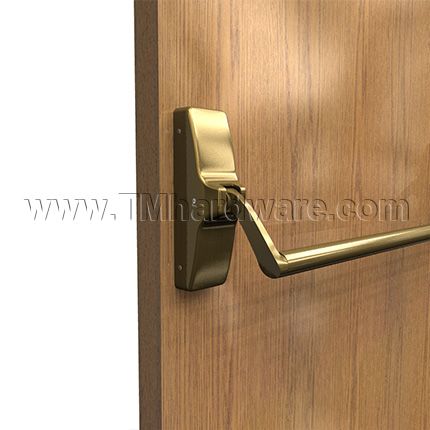

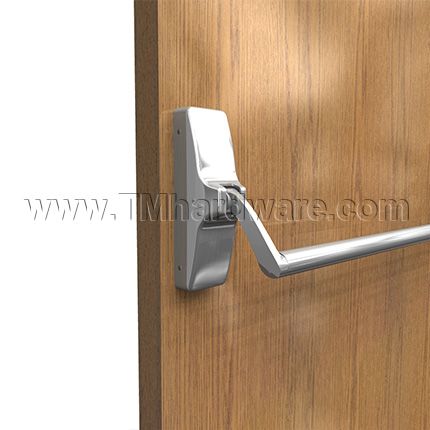

Finishes: Available in finishes; US4, US10, SP313, US32D, US26D, US3, US26, US32.
Materials:
- Arms- made with forged brass, aluminum and investment cast stainless steel.
- Crossbars- 1" O.D., brass, bronze and stainless steel. Reinforced crossbars available.

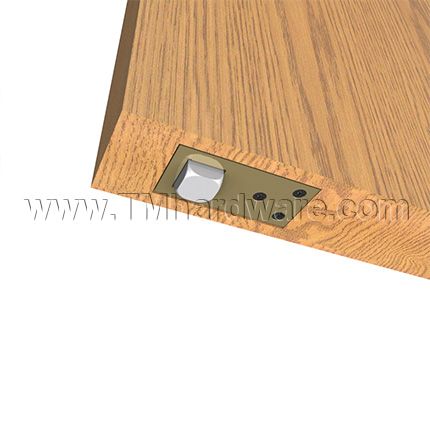

- Latch bolt - Top stainless steel, 3/4" throw. Bottom stainless steel bolt, 1/2" throw.
- Center case and working parts- Center case is pressure die cast aluminum with heavy wrought, forged, investment cast and sintered metal parts.
- Latch Retention hold: Standard in top latch.
Strikes: 4188 mortised top; 2130 flush strike bottom. 2126A and 4155 strike bottom available through our office.
Dogging Feature: 1/2" turn hex dogging standard. No threaded parts to wear out. Rim Cylinder supplied (at additional cost) for functions requiring cylinder dogging.
Door Thickness:Â 1 3/4" thick doors. Specify thickness if other than 1 3/4".
Door Type: For Wood Doors.Â
Door Widths: For doors up to 4'0" x 1-3/4" full flush with 5/8" high frame stop unless specified otherwise.Â
Mounting Height: Furnished to length based on 40 1/4" horizontal centerline to finished floor. Variations to centerline must be specified in order comments. Please select height in tabs above and extension rods will be furnished to length.Â
Projections: 5" maximum, 4" dogged.
Stock Sizes: 4'0" standard
Stile: 6" minimum on wood doors.
Electric Function: Can be interfaced with building security systems. Lock/unlock and security monitoring available.
Fasteners: All mounting screws are concealed. Sheet metal screws standard for device. All machine screws can be ordered. Sex bolts may be ordered to use with hollow core wood, composite or light gauge hollow metal.
Certifications:
- Meets ANSI A156.3-2001 Grade 1 standard.
- F-XX-C UL listed "A" label (3 hr.); 4'0" x 10'0"; 8'0" x 10'0". Fire rated wood door concealed 4'0" x 8'0" single, 90 min.; 8'0" x 8'0" double egress, 45 min. (specify WDC-90); 20 min. wood door, 8'0" x 9'0", (specify WDC-20 Warnock Hersey label).
Installation: See Installation Tab for complete installation instructions.
Additional Options: Including electrical modifications, less bottom rod and reinforcement plates are available through our office. To order please contact us or call our office at 845-388-1300.
Priced per piece
This product has a 10 year warranty against defects in workmanship and materials.
Click here to view our Full Warranty Policy.Â
Click here to view our Falcon XX-M Mortise Crossbar Exit Device.Â
-
QuickShipNo
-
ManufacturerFalcon
-
MPNXX-C-WDC-EO ; FXX-C-WDC-EO
-
Product OptionsExit Device XX-CWDC, Fire-Rated Exit Device F-XX-CWDC
-
Finish OptionsBright Brass #US3, Bright Chrome #US26, Powder Coated Duranodic #SP313, Stainless Steel #US32, Satin Brass #US4, Satin Bronze #US10, Satin Stainless Steel #US32D, Satin Chrome #US26D
-
HandingRight Hand Reverse (RHR), Left Hand Reverse (LHR)
-
Door Height7' Height (Standard), 8' Height, 9' Height, 10' Height
