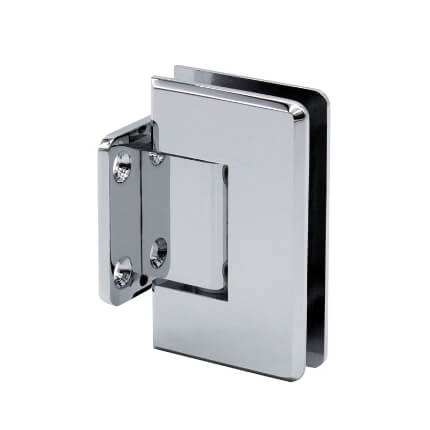

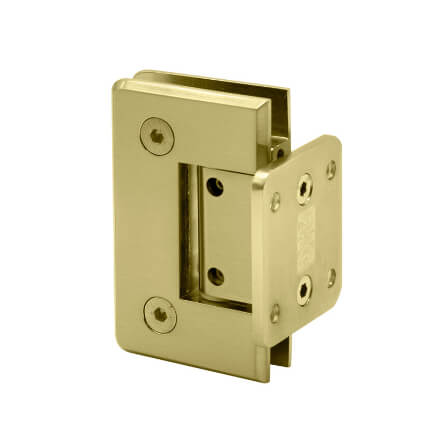

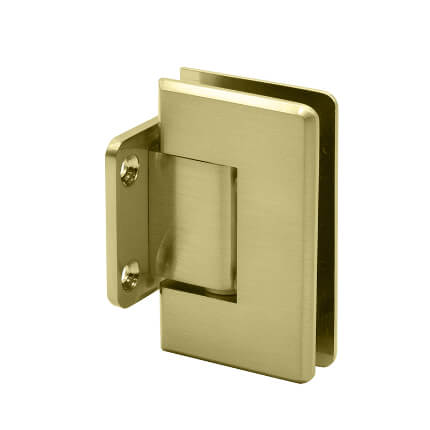

FHC Carolina Beveled Adjustable Wall Mount Hinge for Shower Doors - Short Back Plate

FHC Carolina Beveled Adjustable Wall Mount Hinge for Shower Doors - Short Back Plate, Satin Nickel (US15) Finished
FHC - Frameless Hardware Co.

FHC Carolina Beveled Adjustable Wall Mount Hinge for Shower Doors Short Back Plate is bathroom glass shower door hinges accessories designed for 3/8 - 1/2" Tempered Glass. They are very helpful for constructing a frameless shower or bathtub closet in a home or business bathroom. Available in different finishes.

PRICED PER UNIT

See tabs below for additional information
    • SKU
      FHCLNAS2BN
    • Starting price: Price: $150.69 per item


    FHC Carolina Beveled Adjustable Wall Mount Hinge for Shower Doors Short Back Plate is bathroom glass shower door hinges accessories designed for 3/8 - 1/2" Tempered Glass. The Carolina Series Hinge has a dual degree pivot pin. It comes factory configured at 90 degrees for standard door closing applications. A supplementary jobs that call for a firmer positive position against a hinge pivot pin setting that can be field changed to allow an additional 5 degrees of closing seal or jamb.

    FHC Carolina Beveled Wall Mount Hinge for Shower Doors Short Back Plate Features:

    • Glass Sizes: 3/8" to 1/2" (10 mm to12 mm) Tempered Glass Only
    • Construction: Solid Brass with HD Stainless Steel Back Plate
    • Closing Type: Self-Centering When Within 15 Degrees of Closed Position
    • Cutout Required: See Page 2
    • Includes:  Hinge body, glazing gaskets, wall mounting screws, Allen  head/Philips head cover plate screws, and fabrication template. Use: Residential Bath and Commercial Hotel Applications
    • Adjustable up to 90°, while the Door is Installed
    • Short Back Plate Design
    • Beveled, Radius Corner Design
    • Many Popular Finishes to Select From

    PRICED PER UNIT

    This product has a period of three (3) years warranty against defects in material and workmanship. All other Shower Door Hardware is warranted for one (1) year following the date of invoice. Click to view our Full Warranty Policy.

    For additional designs, see our FHC Carolina Pony Wall Mount Hinge for Shower Doors -  3/8" Or 1/2" Glass

      • SKU
        FHCLNAS2BN
    • QuickShip
      No
    • Manufacturer
      FHC - Frameless Hardware Co.
    • Product Design
      • Handing
        Non-Handed
      • Hinge Corner
        Beveled
      • Number of Holes
        4 Holes
    • Dimensions
      • Hinge Size
        2-5/16"
      • Hinge Thickness
        2-3/16"
      • Hinge Height
        3-15/16"
    • Installation
      • Door Type
        Glass Door
    • Finishes
      • Finish

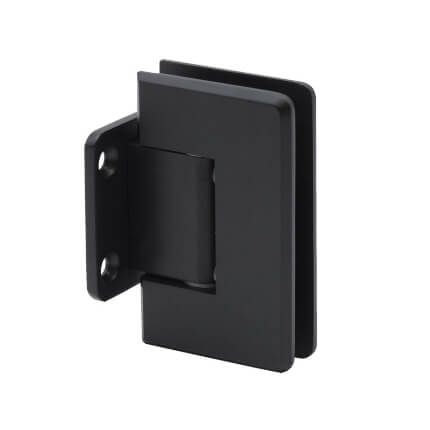

        Satin Nickel (US15), Polished Chrome (US26), Matte Black (BLK), Satin Brass (US4)
    • Compliance Details
      • Warranty
        3 Year Limited Warranty
