FHC Carolina Beveled Glass to Glass 90 Degree Hinge for Shower Doors - 3/8"-1/2" Glass
FHC Carolina Beveled Glass To Glass 90 Degree Hinge for Shower Doors is bathroom glass shower door hinges accessories designed for 3/8" - 1/2" Tempered Glass. They are very helpful for constructing a frameless shower or bathtub closet in a home or business bathroom. Available in different finishes.
PRICED PER UNIT
FHC Carolina Beveled Glass To Glass 90 Degree Hinge for Shower Doors is bathroom glass shower door hinges accessories designed for 3/8" - 1/2" Tempered Glass. The Carolina Series Hinge has a dual degree pivot pin. It comes factory configured at 90 degrees for standard door closing applications. A supplementary jobs that call for a firmer positive position against a hinge pivot pin setting that can be field changed to allow an additional 5 degrees of closing seal or jamb.
FHC Carolina Beveled Glass To Glass 90 Degree Hinge for Shower Doors Features:
- Glass Sizes: 3/8" to 1/2" (10 mm to12 mm) Tempered Glass Only
- Construction: Solid Brass
- Closing Type: Self-Centering When Within 15 Degrees of Closed Position
- Cutout Required: Cutout No. SD34 and SD35
- Includes: Hinge body, glazing gaskets, wall mounting screws, Allen head/Philips head cover plate screws, and fabrication template.
- Use: Residential Bath and Commercial Hotel Applications
- Used in 90 Degree Glass to Glass Applications
- Beveled Edges and Corners
- Easily Converts to 5 Degree Offset
- Many Popular Finishes to Select From.
PRICED PER UNIT
This product has a period of three (3) years warranty against defects in material and workmanship. All other Shower Door Hardware is warranted for one (1) year following the date of invoice. Click to view our Full Warranty Policy.
For additional designs, see our FHC Carolina Series 135 Degree Adjustable Glass-To-Glass Hinge for Shower Doors - 3/8" To 1/2" Glass
-
QuickShipNo
-
ManufacturerFHC - Frameless Hardware Co.
- Product Design
-
HandingNon-Handed
-
Hinge CornerRadius Corner
-

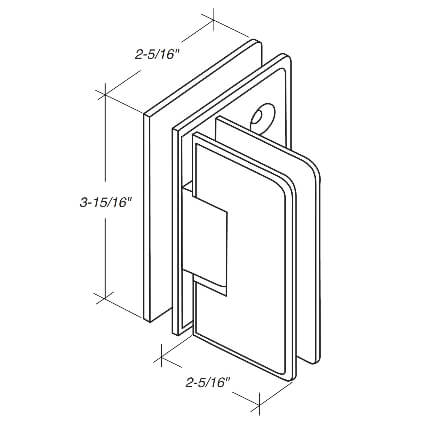

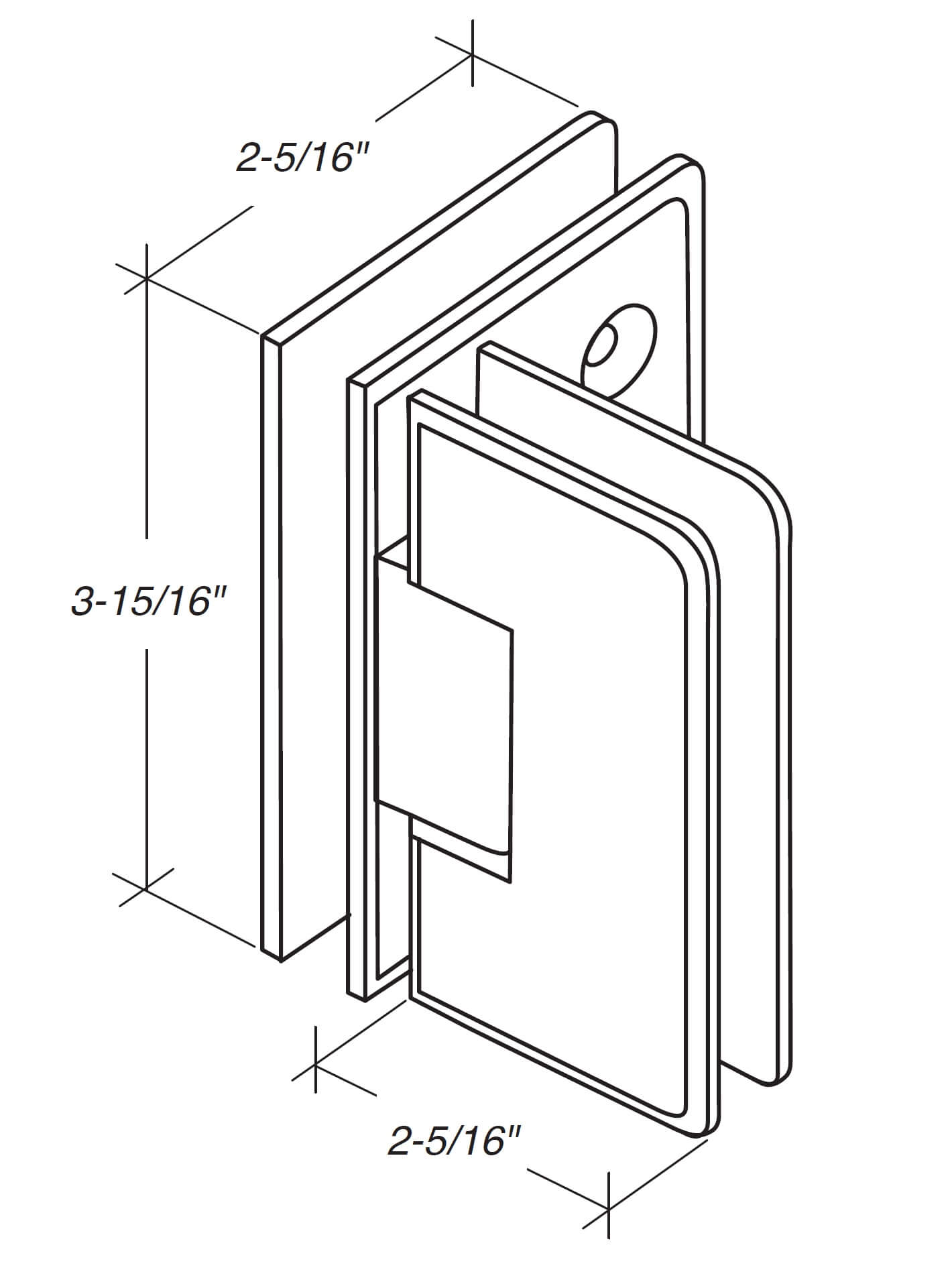

- Dimensions
-
Hinge Size2-5/16"
-
Hinge Thickness2-5/16"
-
Hinge Height3-15/16"
-
- Installation
-
Door TypeGlass Door
-
- Finishes
-

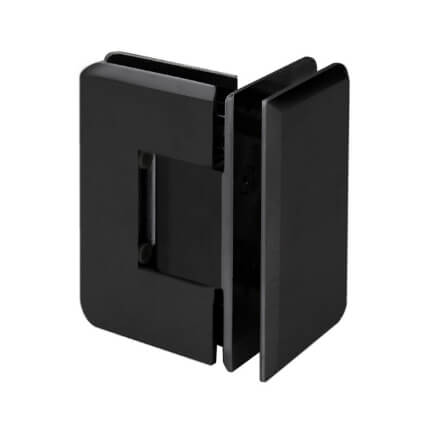

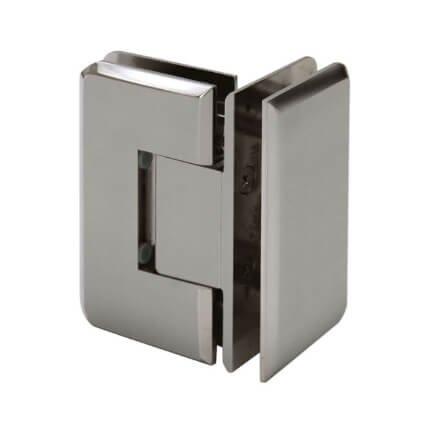

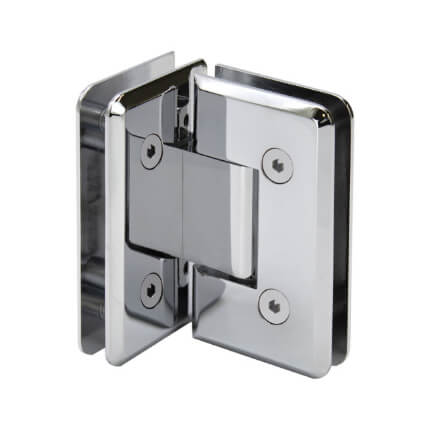

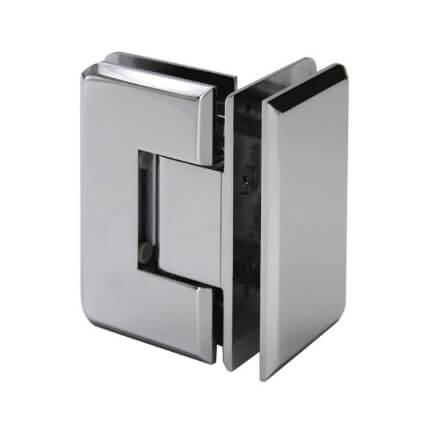

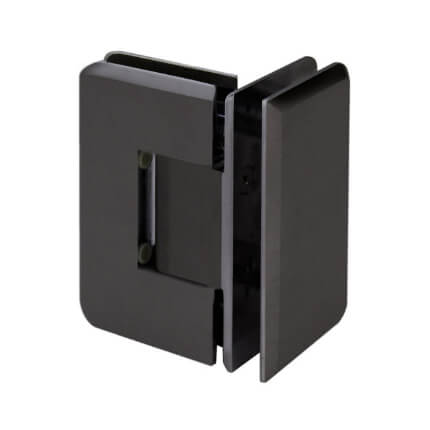

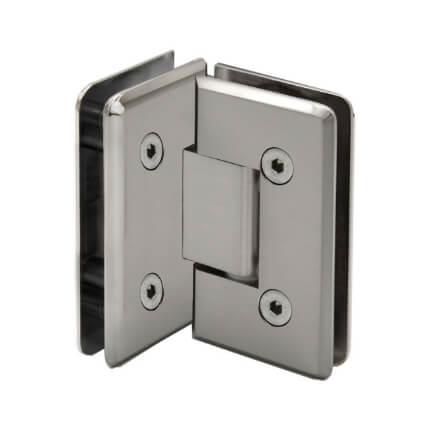

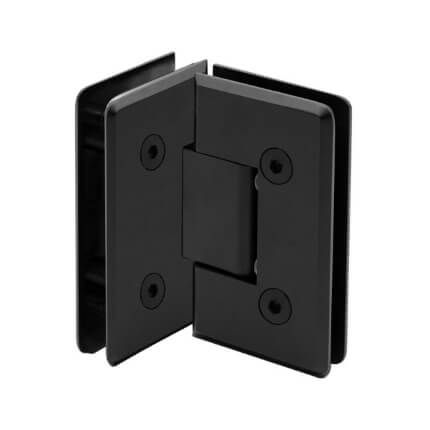

FinishSatin Nickel (US15), Polished Chrome (US26), Matte Black (BLK), Oil Rubbed Bronze (US10B)
-
- Compliance Details
-
Warranty3 Year Limited Warranty
-
