FHC Pasadena HD Beveled Glass to Glass 180 Degree Hinge for Shower Doors - Offset Back Plate

FHC Pasadena HD Beveled Glass To Glass 180 Degree Hinge for Shower Doors - Offset Back Plate, Satin Nickel (US15) Finished
FHC - Frameless Hardware Co.

FHC Pasadena Square Wall Mount Hinge for Shower Doors Offset Back Plate is bathroom glass shower door hinges accessories designed for 3/8 - 1/2" Tempered Glass. They are very helpful for constructing a frameless shower or bathtub closet in a home or business bathroom. Available in different finishes.

PRICED PER UNIT

See tabs below for additional information
    • SKU
      FHPAS180BN
    • Starting price: Price: $192.89 per item


    FHC Pasadena Square Wall Mount Hinge for Shower Doors Offset Back Plate is bathroom glass shower door hinges accessories designed for 3/8 - 1/2" Tempered Glass. A dual degree pivot pin can be found on the Pasadena HD hinge. It is pre-set at 90 degrees for standard door closing applications at the factory. For jobs that demand a firmer positive position against a surface, a secondary setting on the hinge pivot pin can be field-adjusted to allow an additional 5 degrees of closing seal or jamb.

    FHC Pasadena Square Wall Mount Hinge for Shower Doors Features:

    • Glass Sizes: 3/8" or 1/2" (10 or 12 mm) Tempered Glass Only
    • Construction: Solid Brass
    • Closing Type: Full Rotation and Self-Centering When Within 15 Degrees of Closed Position
    • Cutout Required: Cutout No. SD48
    • Includes: Hinge body, glazing gaskets, mounting screws, Allen head/Philips head cover plate screws, and fabrication template.
    • Use: Residential Bath and Commercial Hotel Applications
    • Heavy Duty Beveled Profile Glass to Glass 180 Degree Hinge
    • Heavy Duty Design For Wider and Heavier Doors, Max 145lb
    • Self-Centering within 15 Degrees of Closing Position
    • Commonly used in Residential Bath and Commercial Hotel Applications
    • Many Popular Finishes to Select From

    PRICED PER UNIT

    This product has a period of three (3) years warranty against defects in material and workmanship. All other Shower Door Hardware is warranted for one (1) year following the date of invoice. Click to view our Full Warranty Policy.

    For additional designs, see our FHC Pasadena HD Wall Mount Hinge for Shower Doors - Full Back Plate

      • SKU
        FHPAS180BN
    • QuickShip
      No
    • Manufacturer
      FHC - Frameless Hardware Co.
    • Product Design
      • Handing
        Non-Handed
      • Hinge Corner
        Radius Corner

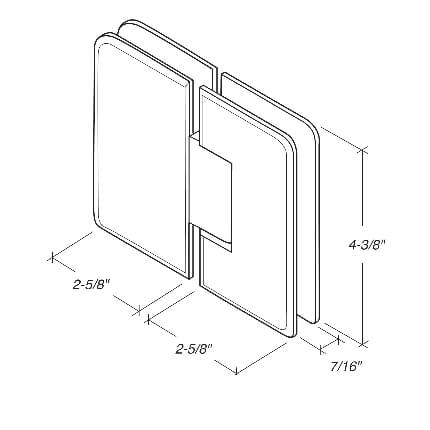

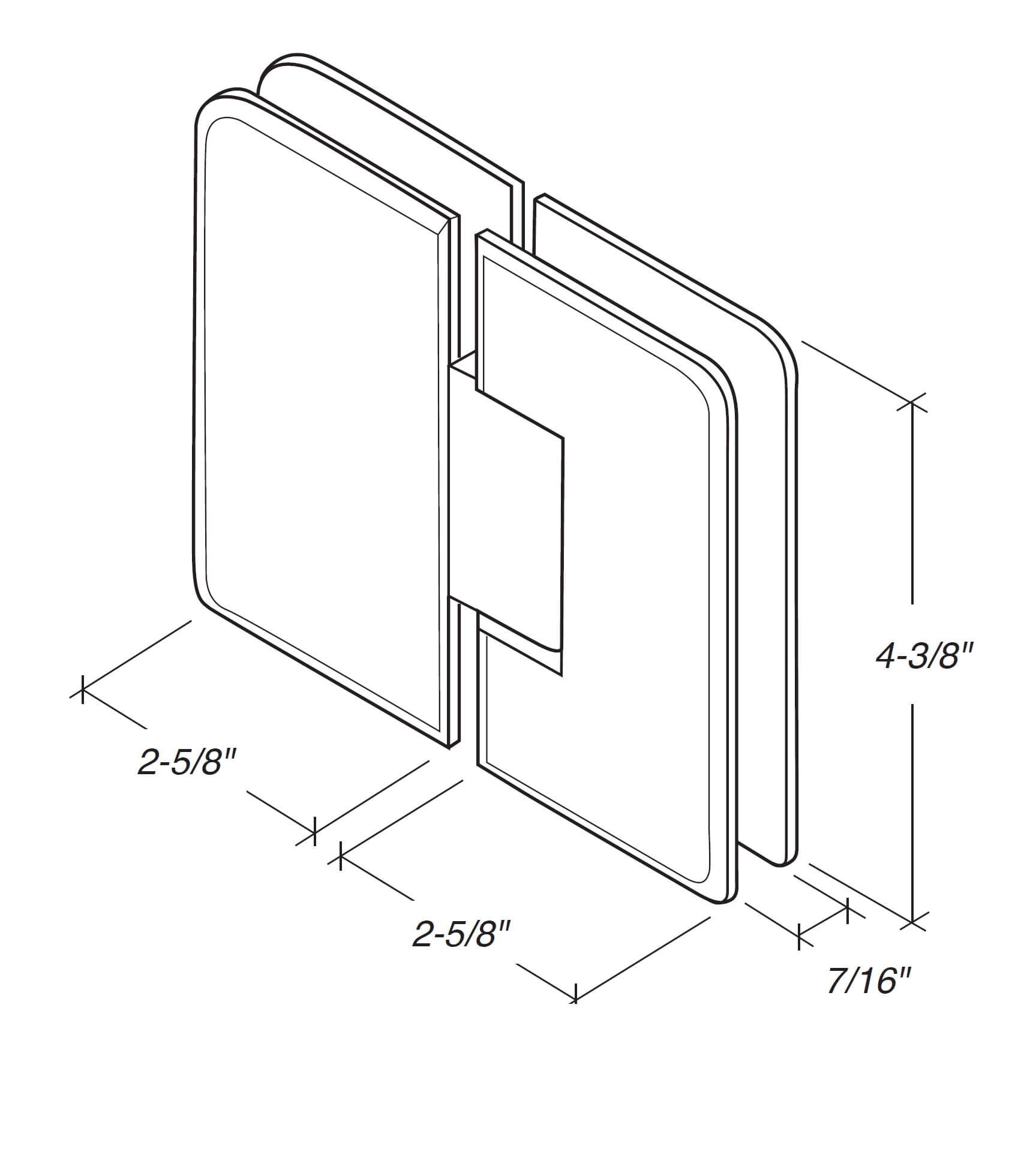

    • Dimensions
      • Hinge Size
        2-5/8"
      • Hinge Thickness
        7/16"
      • Hinge Height
        4-3/8"
    • Installation
      • Door Type
        Glass Door
    • Finishes
      • Finish
        Satin Nickel (US15), Polished Chrome (US26), Matte Black (BLK), Oil Rubbed Bronze (US10B), Satin Brass (US4), Polished Nickel (US14), Satin Bronze (US10)
    • Compliance Details
      • Warranty
        3 Year Limited Warranty
