FHC Preston Adjustable Beveled Wall Mount Hinge for Shower Doors - Full Back Plate

FHC Preston Adjustable Beveled Wall Mount Hinge for Shower Doors - Full Back Plate, Satin Nickel (US15) Finished
FHC - Frameless Hardware Co.

FHC Preston Adjustable Beveled Wall Mount Hinge for Shower Doors Short Back Plate is bathroom glass shower door hinges accessories designed for 3/8" to 1/2" Tempered Glass. They are very helpful for constructing a frameless shower or bathtub closet in a home or business bathroom. Available in different finishes.

PRICED PER UNIT

See tabs below for additional information
    • SKU
      FHPRESA4BN
    • Starting price: Price: $118.25 per item


    FHC Preston Adjustable Beveled Wall Mount Hinge for Shower Doors Short Back Plate is bathroom glass shower door hinges accessories designed for 3/8" to 1/2" Tempered Glass. The Preston Series Hinge has a dual degree pivot pin. It comes factory set at 90 degrees for normal door closing applications.  A secondary setting on the hinge pivot pin that may be field adjusted to allow an additional 5 degrees of closure.

    FHC Preston Adjustable Beveled Wall Mount Hinge for Shower Doors Short Back Plate Features:

    • Glass Sizes: 3/8" to 1/2" (10 mm to12 mm) Tempered Glass Only
    • Construction: Solid Brass with HD Stainless Steel Back Plate
    • Closing Type: Self-Centering When Within 15 Degrees of Closed Position
    • Cutout Required: Cutout No. SD1
    • Includes: Hinge body, glazing gaskets, wall mounting screws, Allen head/Philips head cover plate screws, and fabrication template.
    • Use: Residential Bath and Commercial Hotel Applications
    • Adjustable Up to 90 Degrees

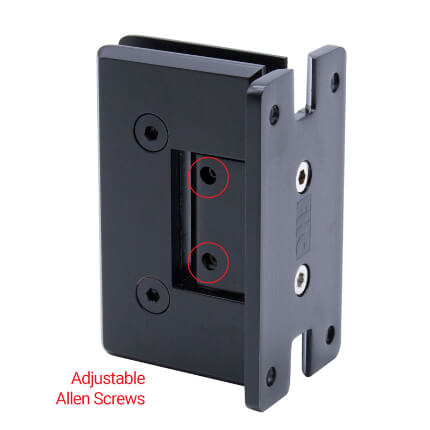

    • Can be Adjusted After Door is Installed
    • Many Popular Finishes to Select From

    PRICED PER UNIT

    This product has a period of three (3) years warranty against defects in material and workmanship. All other Shower Door Hardware is warranted for one (1) year following the date of invoice. Click to view our Full Warranty Policy.

    For additional designs, see our FHC Preston Beveled 5 Degree Positive Close Wall Mount Hinge for Shower Doors - Short Back Plate

      • SKU
        FHPRESA4BN
    • QuickShip
      No
    • Manufacturer
      FHC - Frameless Hardware Co.
    • Product Design
      • Handing
        Non-Handed
      • Hinge Corner
        Beveled
      • Number of Holes
        4 Holes

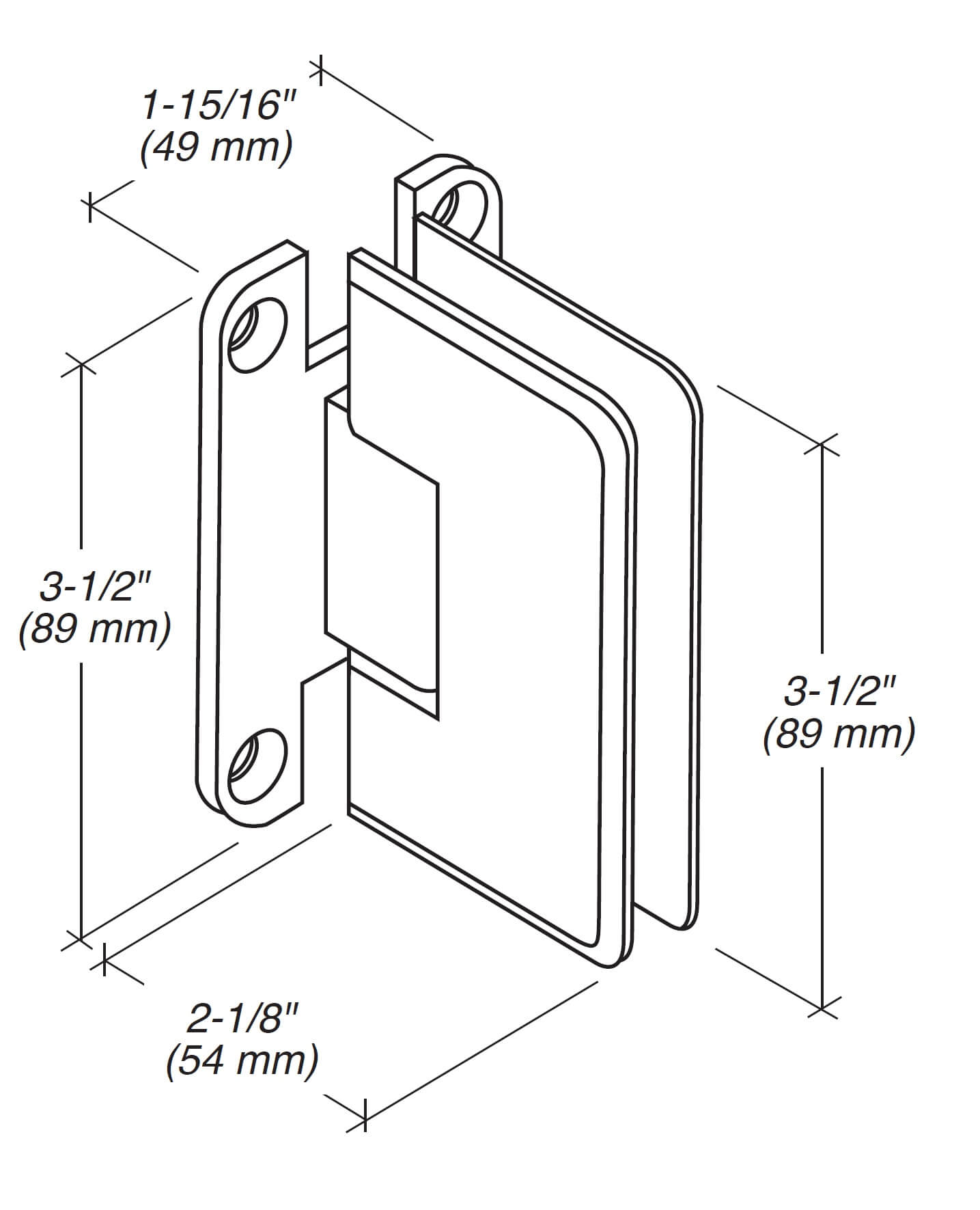

    • Dimensions
      • Hinge Size
        2-1/8"
      • Hinge Thickness
        1-15/16"
      • Hinge Height
        3-1/2"
    • Installation
      • Door Type
        Glass Door
    • Finishes
      • Finish
        Satin Nickel (US15), Polished Chrome (US26), Matte Black (BLK), Oil Rubbed Bronze (US10B), Satin Brass (US4), Polished Nickel (US14), Satin Bronze (US10)
    • Compliance Details
      • Warranty
        3 Year Limited Warranty
